30030EP3OFP449TS-W22 WEG AC Motors
Part#:30030EP3OFP449TS-W22
Manufacturer:WEG
Alt. Part#:7909018750637
Product Lifecycle:Active
Get a quick Quote!

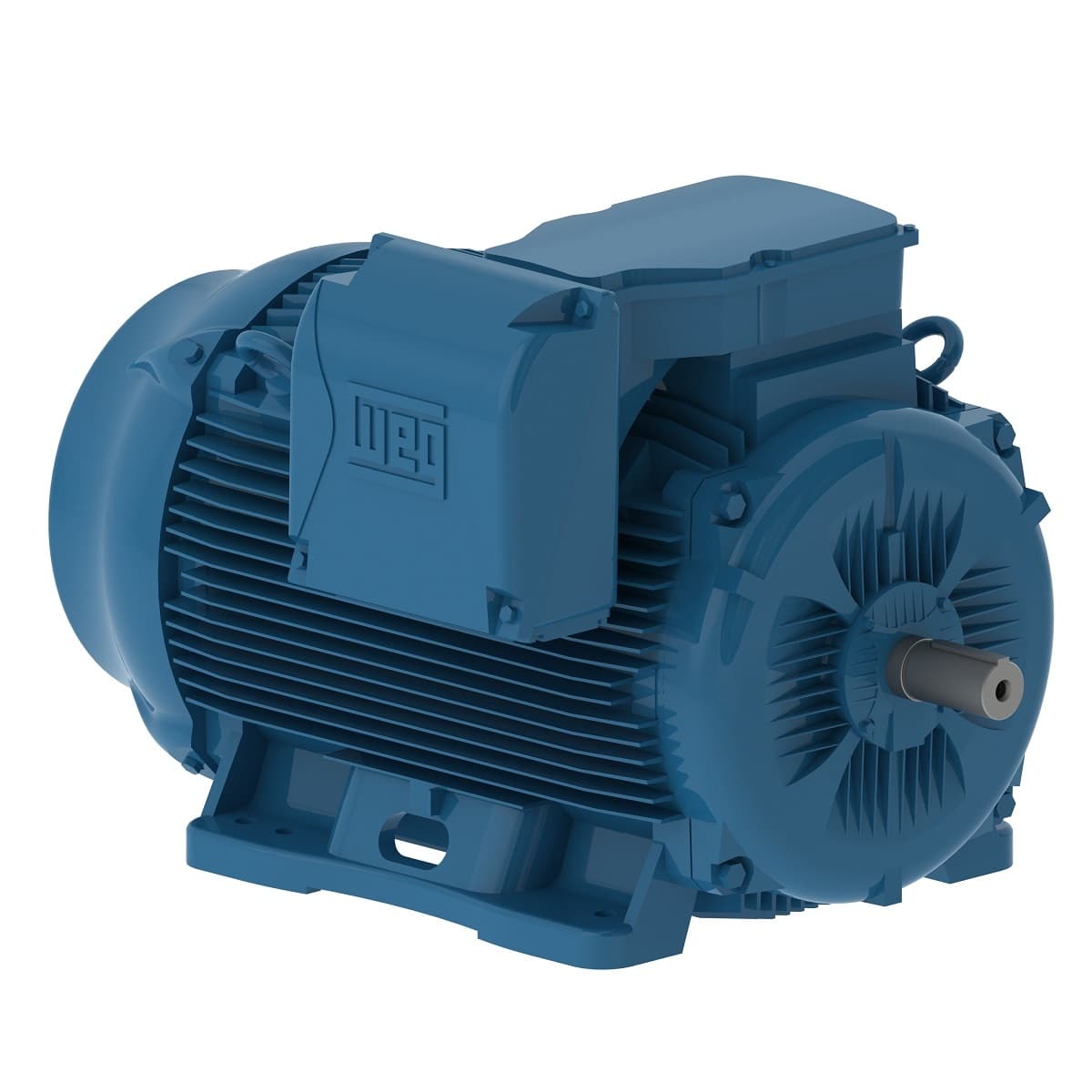

W22 High Efficiency 300 HP 2P 447/9TS 3Ph 380-400-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 30030EP3OFP449TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed2970 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated speed 2970 rpm
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Voltage 380-400-415 V
- Slip 1.00 %
- Locked rotor torque 185 %
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Frame 447/9TS
- Service factor 1.15
- Degree of Protection IP55
- Number of Poles 2
- Locked rotor time 27s (cold) 15s (hot)
- Insulation Class F
- Standard NEMA MG-1
- Flange Without
- Frequency 50 Hz
- Design B
- Altitude 1000 m.a.s.l.
- Output rating 300 HP
- LRC 6.2x(Code F)
- Starting Method Direct On Line
- Number of poles 2
- L. R. Amperes 2393 A
- Rated torque 530 ft.lb
- Mounting F-1
- Synchronous speed 3000 rpm
- Rated current 386 A
- No load current 76.0 A
- Noise level² 79.0 dB(A)
- Terminal box¹ Left position
- Rated voltage 380 V
- Moment of inertia (J) 63.4 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Output 300 HP (220 kW)
- Temperature rise 80 K
- Approx. weight³ 2701 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30030EP3OFP449TS-W22 Specs
