30036OT3G445TSC-RFW4 WEG AC Motors
Part#:30036OT3G445TSC-RFW4
Manufacturer:WEG
Alt. Part#:7909836226796
Product Lifecycle:Active
Get a quick Quote!

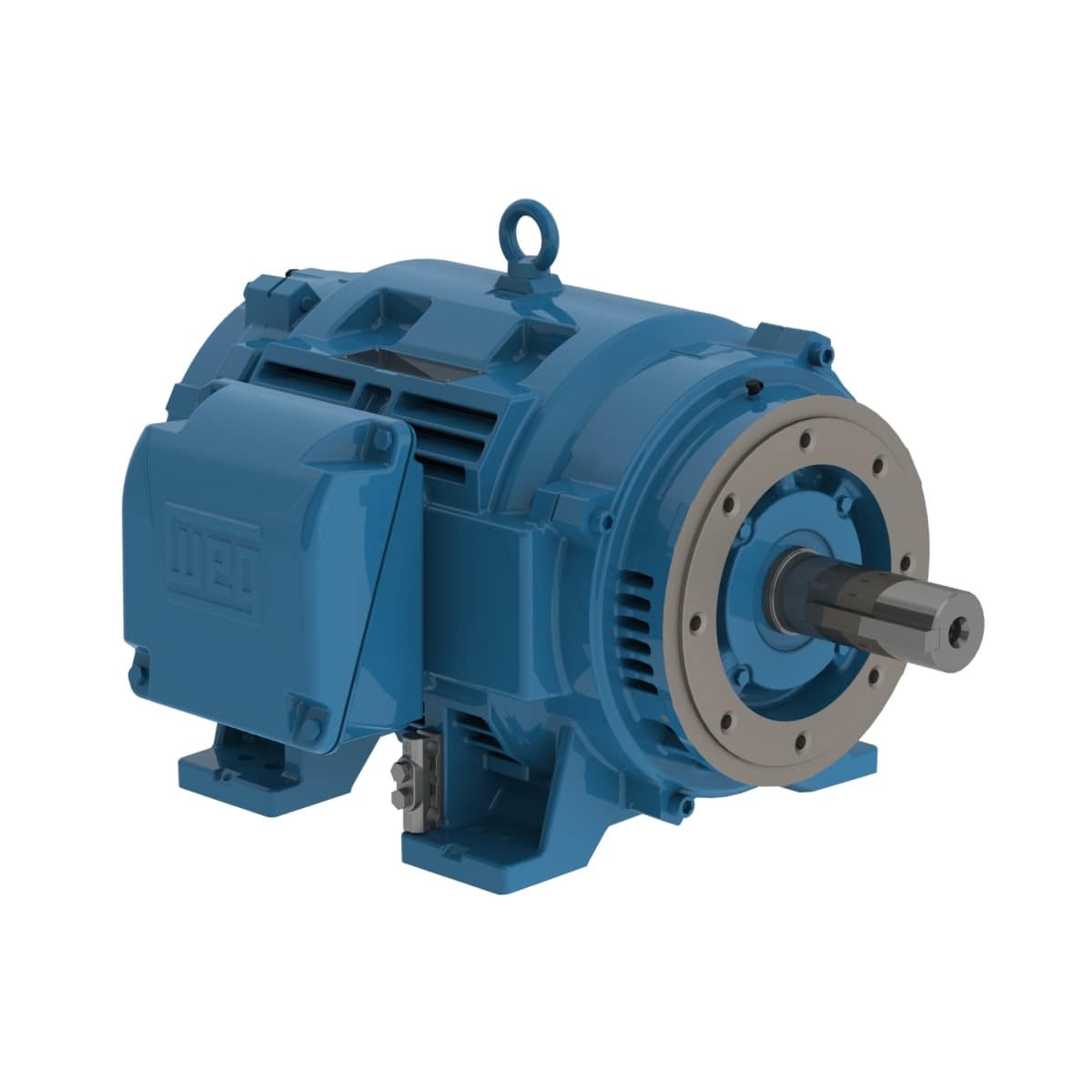

W40 NEMA Premium Efficiency 300 HP 2P 444/5TSC 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 30036OT3G445TSC-RFW4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating300 HP
- Rated Speed3563 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeC
- LRC 6.5x(Code G)
- Slip 1.03 %
- Design B
- Degree of Protection IP23
- Standard NEMA MG-1
- Rated speed 3563 rpm
- Temperature rise 80 K
- Mounting F-1
- Output rating 300 HP
- Frame 444/5TSC
- Insulation Class F
- Noise level² 85.0 dB(A)
- Number of poles 2
- L. R. Amperes 2129 A
- Breakdown torque 240 %
- Starting Method Direct On Line
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Locked rotor torque 150 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 1535 lb
- Rated voltage 460 V
- No load current 85.0 A
- Moment of inertia (J) 28.5 sq.ft.lb
- Flange C
- Output 300 HP (220 kW)
- Rated torque 442 ft.lb
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Rated current 328 A
- Locked rotor time 21s (cold) 12s (hot)
- Service factor 1.15
- Voltage 460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 30036OT3G445TSC-RFW4 Specs
1-year warranty
