20018OT3G445T-W40 WEG AC Motors
Part#:20018OT3G445T-W40
Manufacturer:WEG
Alt. Part#:7909323906439
Product Lifecycle:Active
Get a quick Quote!

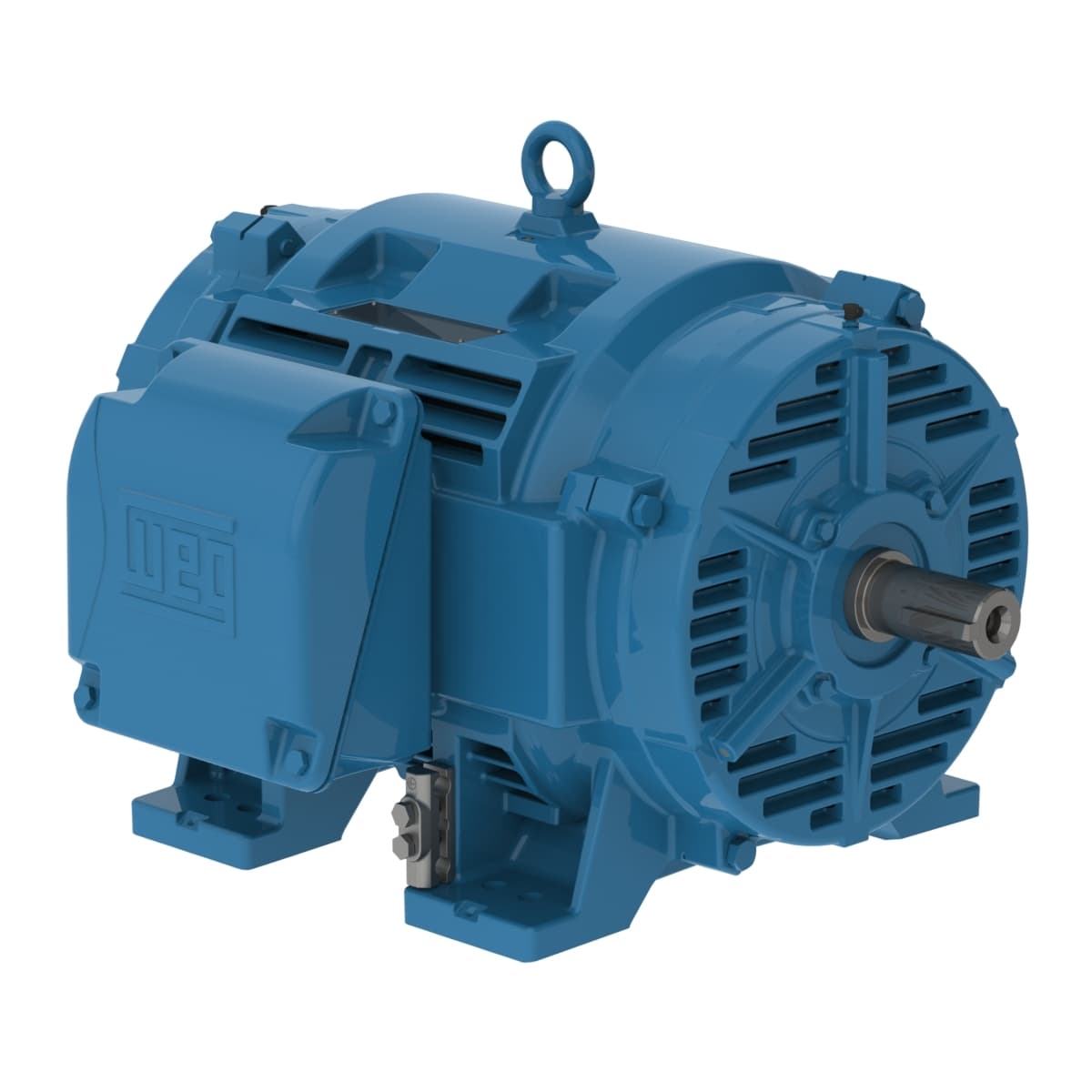

W40 NEMA Premium Efficiency 200 HP 4P 444/5T 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 20018OT3G445T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed1783 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Output 200 HP (150 kW)
- Temperature rise 80 K
- Approx. weight³ 1407 lb
- Frame 444/5T
- No load current 86.5 A
- Insulation Class F
- Output rating 200 HP
- LRC 6.6x(Code G)
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 1544 A
- Breakdown torque 250 %
- Locked rotor torque 210 %
- Ambient temperature -20°C to +40°C
- Frequency 60 Hz
- Design B
- Altitude 1000 m.a.s.l.
- Rated voltage 460 V
- Moment of inertia (J) 46.4 sq.ft.lb
- Rated speed 1783 rpm
- Rated torque 589 ft.lb
- Mounting F-1
- Synchronous speed 1800 rpm
- Slip 0.94 %
- Service factor 1.15
- Starting Method Direct On Line
- Number of poles 4
- Number of Poles 4
- Enclosure IC01 - ODP
- Voltage 460//380 V
- Rated current 234 A
- Degree of Protection IP23
- Standard NEMA MG-1
- Duty Cycle Cont.(S1)
- Noise level² 78.0 dB(A)
- Terminal box¹ Left position
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 20018OT3G445T-W40 Specs
1-year warranty
