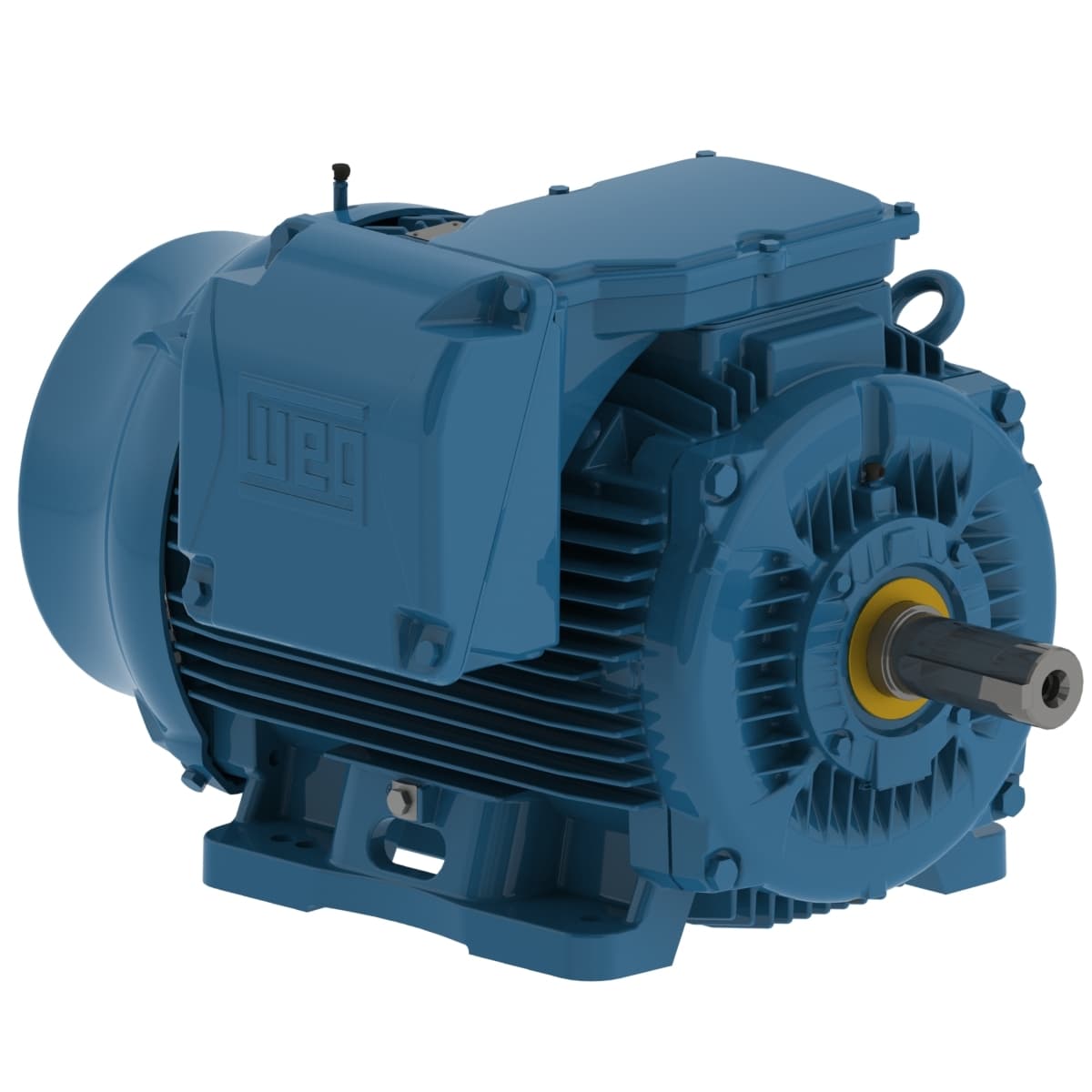

20012ST3HIE449T-W22 WEG AC Motors
Part#:20012ST3HIE449T-W22
Manufacturer:WEG
Alt. Part#:7891327141360
Product Lifecycle:Active
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 200 HP 6P 447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 20012ST3HIE449T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed1185 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- L. R. Amperes 1157 A
- Rated voltage 575 V
- Design B
- Noise level² 70.0 dB(A)
- Rated current 190 A
- No load current 68.0 A
- Temperature rise 80 K
- Voltage 575 V
- Frequency 60 Hz
- Breakdown torque 240 %
- Starting Method Direct On Line
- Number of poles 6
- Slip 1.25 %
- Moment of inertia (J) 145 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Frame 447/9T
- Degree of Protection IP56
- Approx. weight³ 2831 lb
- Number of Poles 6
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Rated speed 1185 rpm
- Rated torque 886 ft.lb
- Enclosure IC411 - TEFC
- Output rating 200 HP
- Output 200 HP (150 kW)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Flange Without
- LRC 6.1x(Code G)
- Locked rotor torque 220 %
- Mounting F-1
- Standard NEMA MG-1
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
