20012ST3HIERB449T-W2 WEG AC Motors
Part#:20012ST3HIERB449T-W2
Manufacturer:WEG
Alt. Part#:7909018396422
Product Lifecycle:Active
Get a quick Quote!

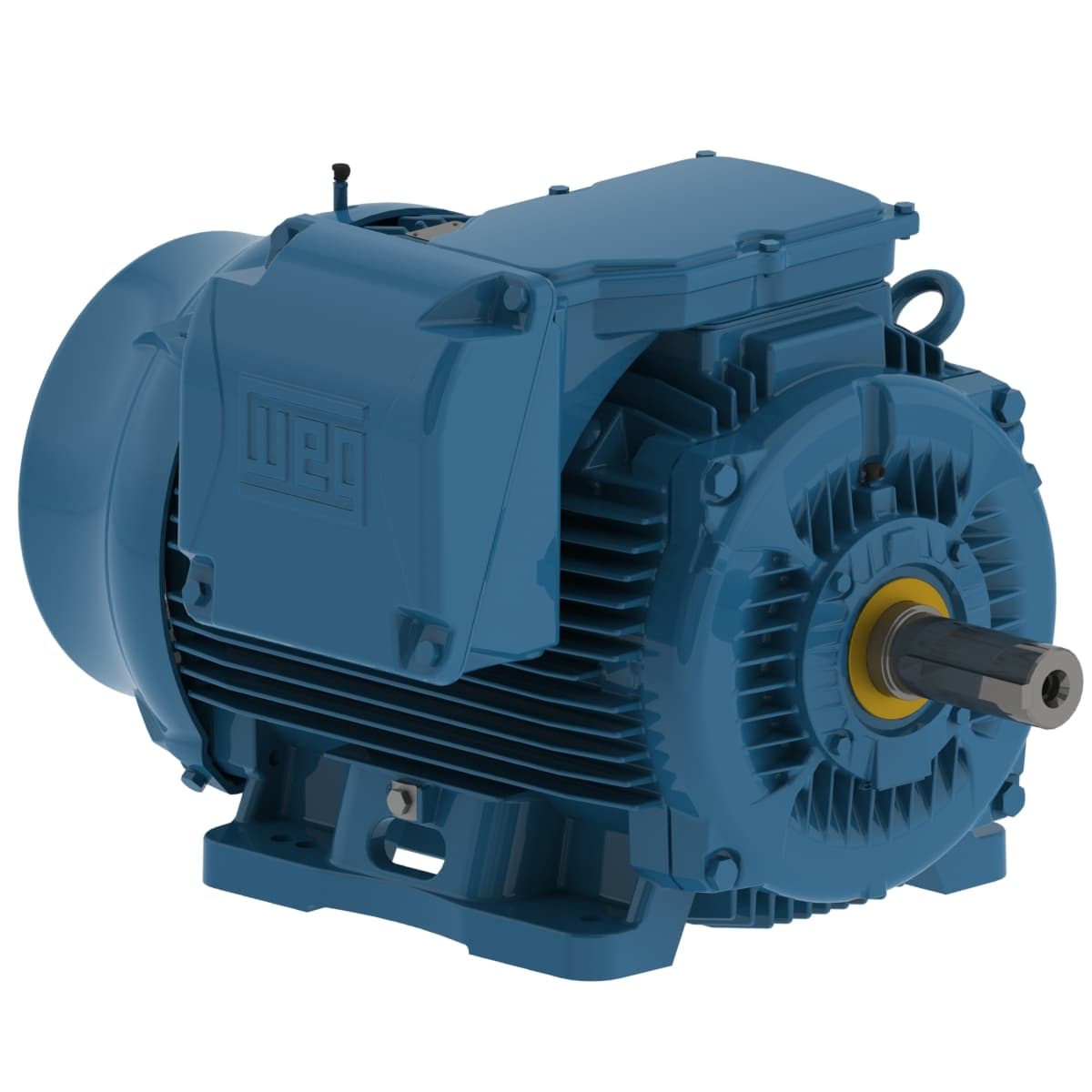

W22 IEEE 841 NEMA Premium Efficiency 200 HP 6P 447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 20012ST3HIERB449T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed1185 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- No load current 68.0 A
- Enclosure IC411 - TEFC
- Number of poles 6
- Output 200 HP (150 kW)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Slip 1.25 %
- Locked rotor time 27s (cold) 15s (hot)
- Starting Method Direct On Line
- Terminal box¹ Left position
- LRC 6.1x(Code G)
- Temperature rise 80 K
- Noise level² 70.0 dB(A)
- Number of Poles 6
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Output rating 200 HP
- L. R. Amperes 1157 A
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Rated speed 1185 rpm
- Design B
- Mounting F-1
- Synchronous speed 1200 rpm
- Frequency 60 Hz
- Moment of inertia (J) 145 sq.ft.lb
- Degree of Protection IP56
- Flange Without
- Rated current 190 A
- Locked rotor torque 220 %
- Standard NEMA MG-1
- Frame 447/9T
- Rated torque 886 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 2848 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 20012ST3HIERB449T-W2 Specs
1-year warranty
