20012XT3H447T WEG AC Motors
Part#:20012XT3H447T
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

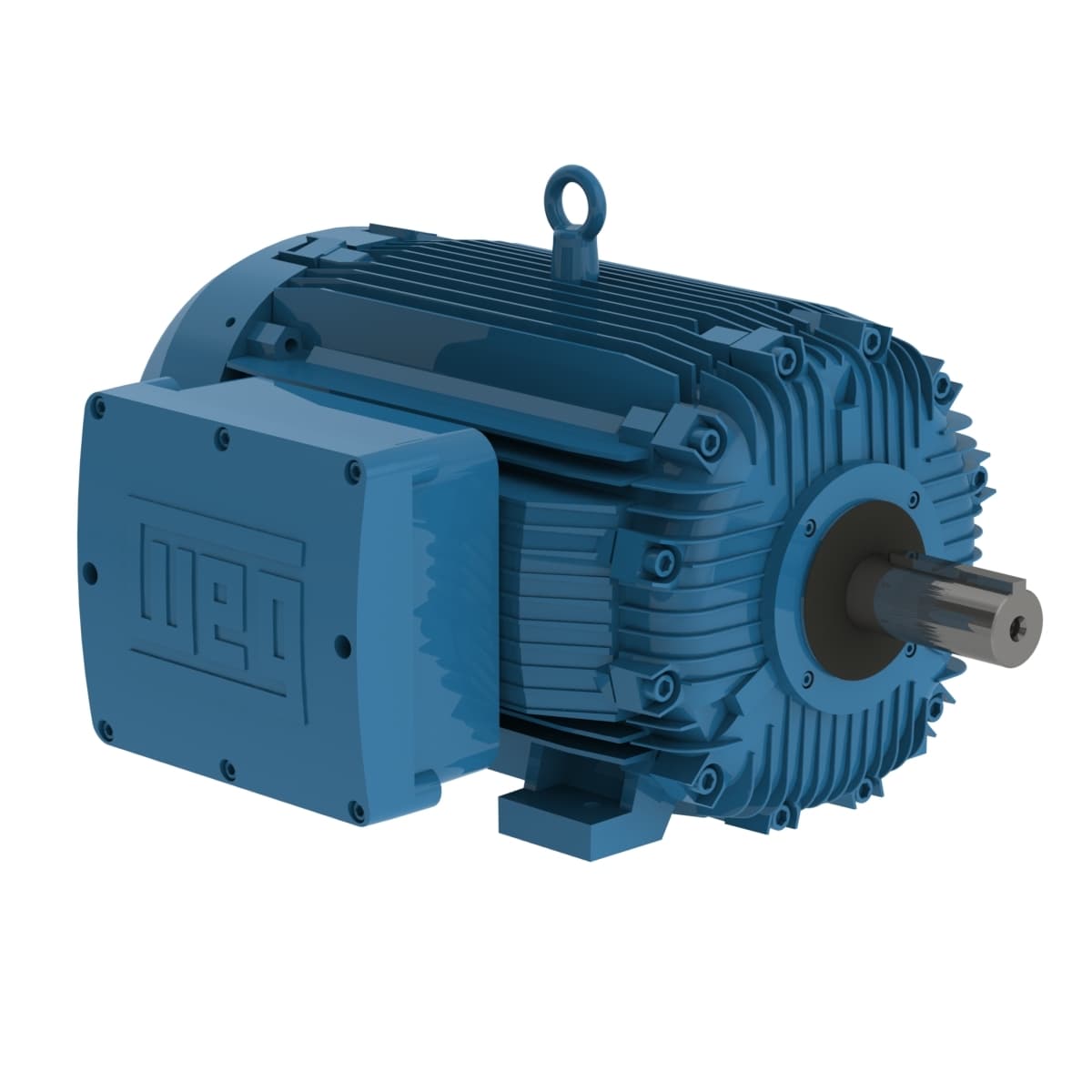

W21 Explosion-proof Motor NEMA Premium Efficiency 200 HP 6P 447T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 20012XT3H447T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed1190 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Rated torque 883 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 199 A
- Insulation Class F
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Number of Poles 6
- Moment of inertia (J) 134 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Slip 0.83 %
- Service factor 1.15
- Starting Method Direct On Line
- Output rating 200 HP
- Output 200 HP (150 kW)
- No load current 100 A
- Enclosure IC411 - TEFC
- Synchronous speed 1200 rpm
- Frame 447T
- Temperature rise 80 K
- Noise level² 73.0 dB(A)
- Rated speed 1190 rpm
- Locked rotor time 25s (cold) 14s (hot)
- Degree of Protection IP55
- Frequency 60 Hz
- Locked rotor torque 270 %
- Mounting F-1
- Flange Without
- L. R. Amperes 1554 A
- Breakdown torque 280 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 200 lb
- LRC 7.8x(Code J)
- Design B
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
