16166627 WEG AC Motors
Part#:16166627
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

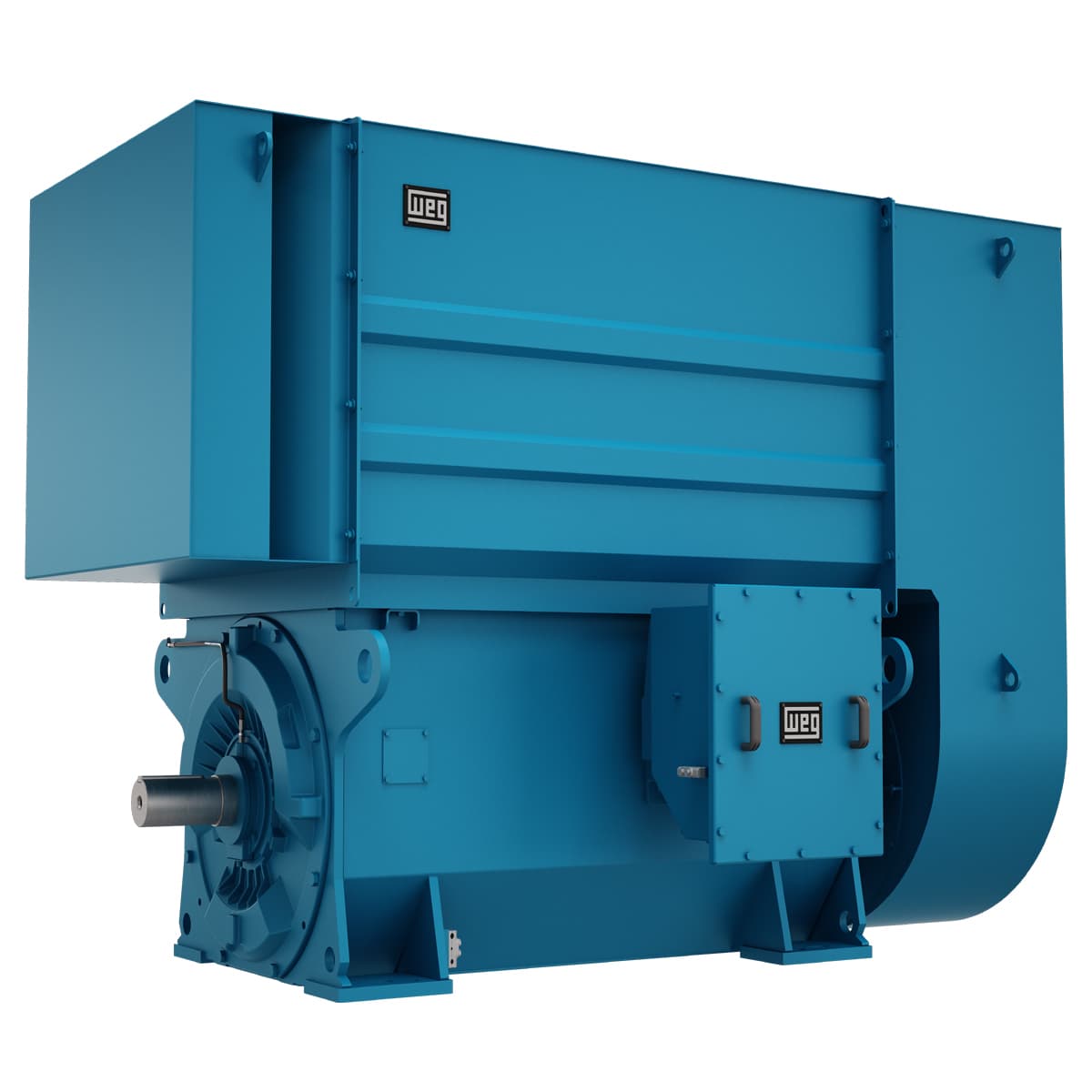

W60 Standard Efficiency 750 HP 6P 5810/11 3Ph 460 V 60 Hz - Foot-mounted
Check out the 16166627 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Breakdown torque 210 %
- Starting Method Direct On Line
- Number of poles 6
- LRC 7.0x(Code H)
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Rated speed 1185 rpm
- Insulation Class F
- Voltage 460 V
- Synchronous speed 1200 rpm
- Frame 5810/11
- Locked rotor torque 100 %
- Standard NEMA MG-1
- Number of Poles 6
- Rated torque 3320 ft.lb
- Approx. weight³ 5998 lb
- Output rating 750 HP
- Output 750 HP (560 kW)
- Locked rotor time 54s (cold) 30s (hot)
- Noise level² 77.0 dB(A)
- Rated current 917 A
- Moment of inertia (J) 225 sq.ft.lb
- Rotation¹ CW
- Terminal box¹ Left position
- L. R. Amperes 6421 A
- No load current 363 A
- Degree of Protection IP24
- Flange Without
- Slip 1.25 %
- Service factor 1.00
- Altitude 1000 m.a.s.l.
- Rated voltage 460 V
- Duty Cycle Cont.(S1)
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
