16166620 WEG AC Motors
Part#:16166620
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

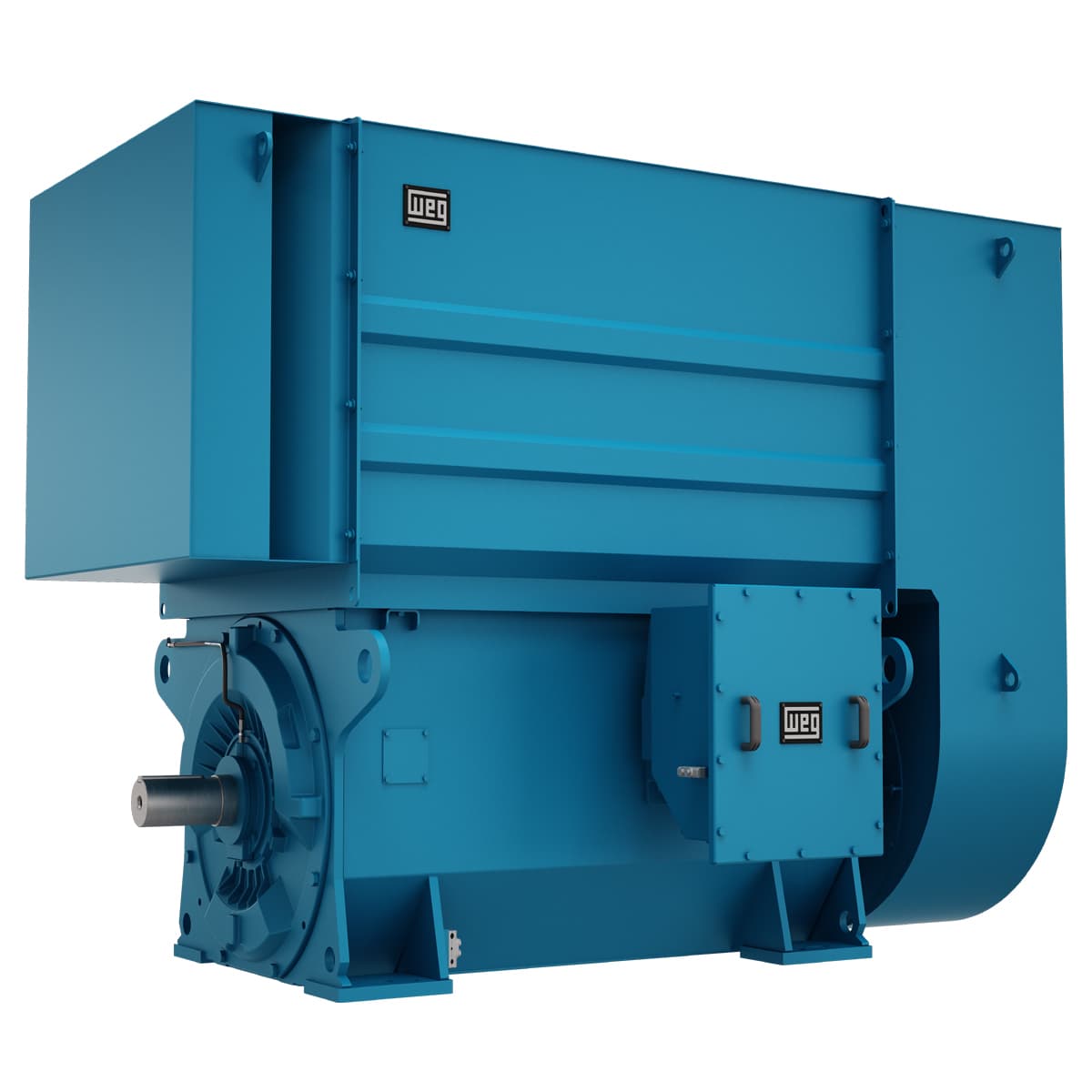

W60 Standard Efficiency 1350 HP 4P 5810/11 3Ph 690 V 60 Hz - Foot-mounted
Check out the 16166620 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 1350 HP (1000 kW)
- Insulation Class F
- Slip 1.11 %
- Locked rotor time 23s (cold) 13s (hot)
- Duty Cycle Cont.(S1)
- Output rating 1350 HP
- Breakdown torque 250 %
- Service factor 1.00
- Frame 5810/11
- Moment of inertia (J) 175 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 4
- L. R. Amperes 6549 A
- No load current 331 A
- Approx. weight³ 6225 lb
- Voltage 690 V
- Frequency 60 Hz
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Number of Poles 4
- Rated torque 3980 ft.lb
- Locked rotor torque 120 %
- Terminal box¹ Left position
- Rated speed 1780 rpm
- Mounting F-1
- Rated voltage 690 V
- Degree of Protection IP24
- Noise level² 82.0 dB(A)
- Flange Without
- Rated current 1008 A
- LRC 6.5x(Code G)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rotation¹ CW
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 16166620 Specs
