16166619 WEG AC Motors
Part#:16166619
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

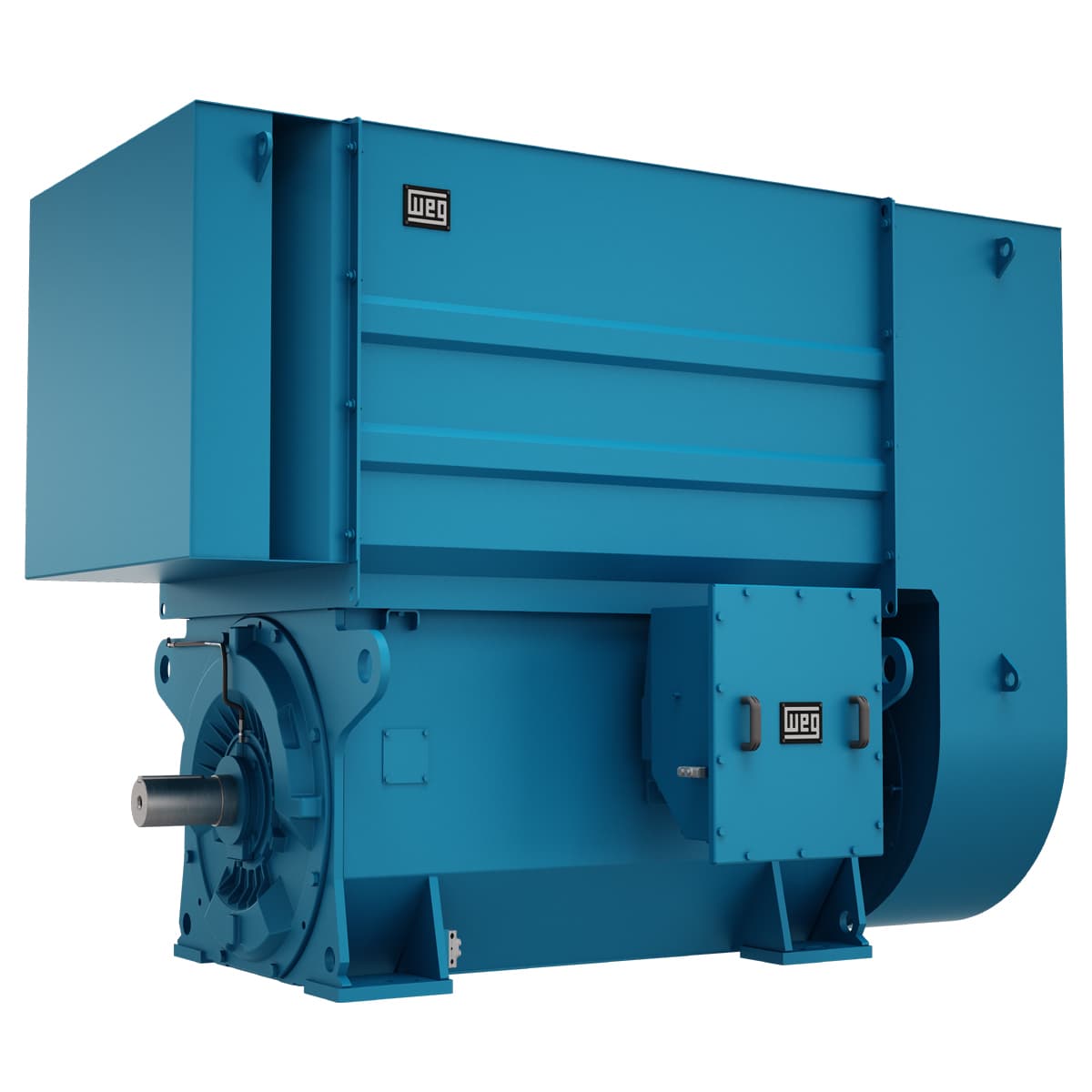

W60 Standard Efficiency 1250 HP 4P 5810/11 3Ph 690 V 60 Hz - Foot-mounted
Check out the 16166619 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 5810/11
- Moment of inertia (J) 166 sq.ft.lb
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Voltage 690 V
- No load current 298 A
- Service factor 1.00
- Terminal box¹ Left position
- Output 1250 HP (900 kW)
- Rated voltage 690 V
- Noise level² 82.0 dB(A)
- Output rating 1250 HP
- Rated current 906 A
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ CW
- Rated torque 3690 ft.lb
- Breakdown torque 250 %
- Number of poles 4
- Number of Poles 4
- Temperature rise 80 K
- Mounting F-1
- L. R. Amperes 5886 A
- Locked rotor torque 120 %
- Flange Without
- Rated speed 1779 rpm
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Slip 1.17 %
- LRC 6.5x(Code G)
- Degree of Protection IP24
- Approx. weight³ 6057 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 16166619 Specs
