16166649 WEG AC Motors
Part#:16166649
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

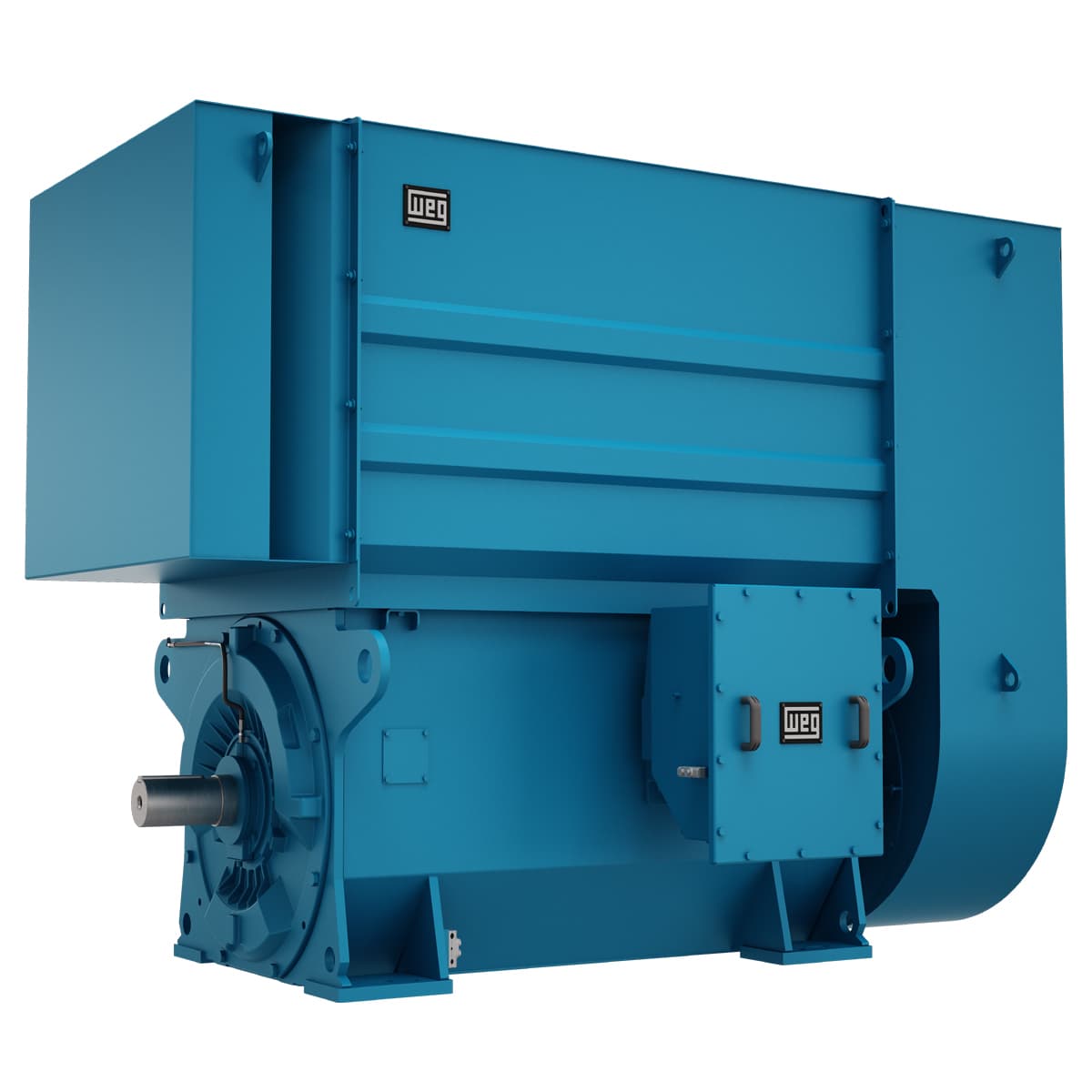

W60 Standard Efficiency 800 HP 6P 5810/11 3Ph 460 V 60 Hz - Foot-mounted
Check out the 16166649 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 5810/11
- Locked rotor time 54s (cold) 30s (hot)
- Standard NEMA MG-1
- L. R. Amperes 6763 A
- Breakdown torque 210 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 6174 lb
- Rated voltage 460 V
- Temperature rise 80 K
- Voltage 460 V
- Number of Poles 6
- Locked rotor torque 100 %
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Rated current 966 A
- LRC 7.0x(Code H)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated speed 1185 rpm
- No load current 335 A
- Rotation¹ CW
- Synchronous speed 1200 rpm
- Frequency 60 Hz
- Rated torque 3550 ft.lb
- Duty Cycle Cont.(S1)
- Output rating 800 HP
- Output 800 HP (590 kW)
- Service factor 1.00
- Noise level² 77.0 dB(A)
- Flange Without
- Slip 1.25 %
- Insulation Class F
- Mounting F-1
- Moment of inertia (J) 242 sq.ft.lb
- Degree of Protection IP24
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 16166649 Specs
