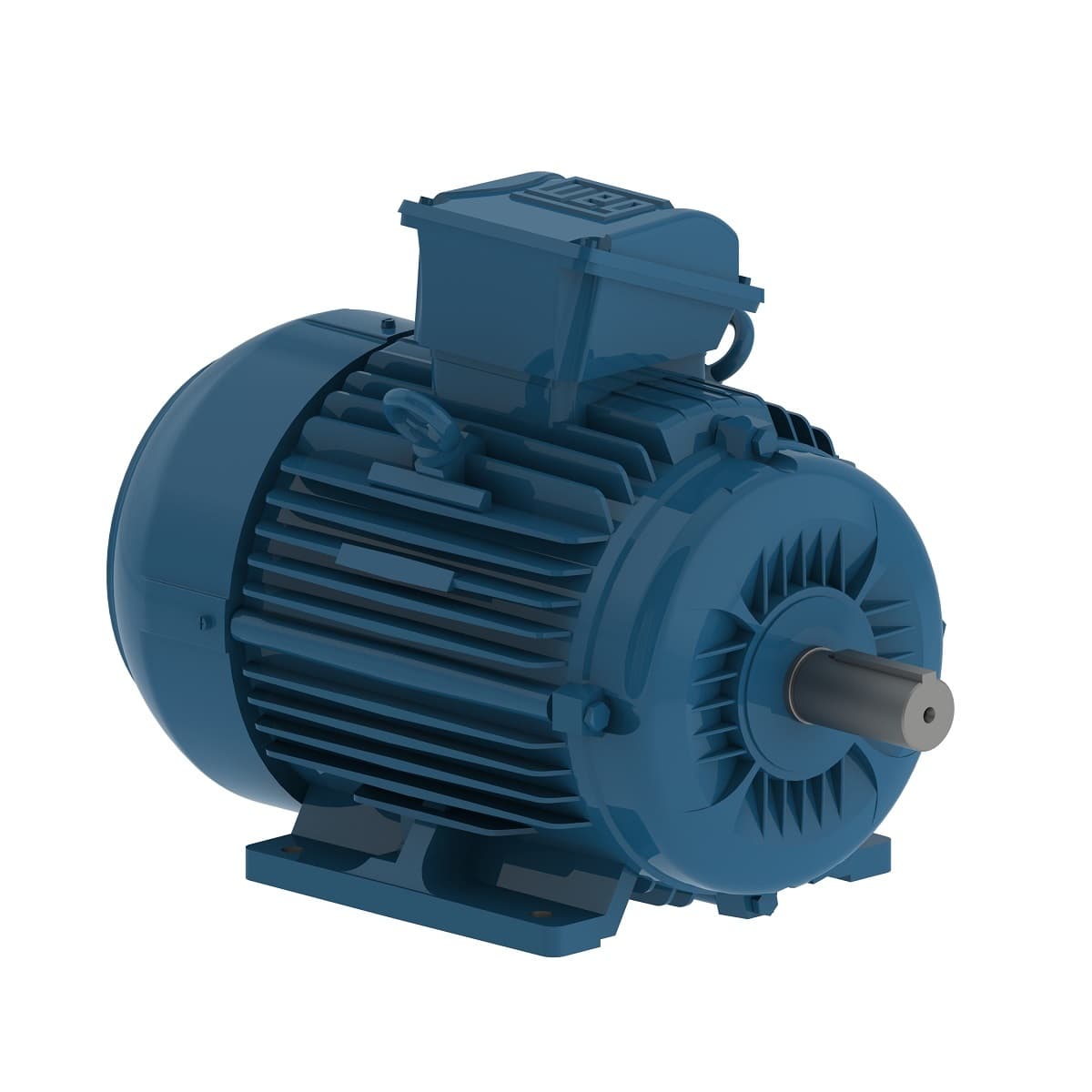

11807165 WEG AC Motors
Part#:11807165
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 NEMA Premium Efficiency 7.5 HP 2P 213T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11807165 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Locked rotor time 36s (cold) 20s (hot)
- Altitude 1000 m.a.s.l.
- Rated speed 3530 rpm
- Rated current 17.5/8.76 A
- Frame 213T
- Rated torque 11.2 ft.lb
- Locked rotor torque 210 %
- L. R. Amperes 126/63.1 A
- Output 7.5 HP (5.5 kW)
- Breakdown torque 300 %
- Insulation Class F
- Starting Method Direct On Line
- Standard NEMA MG-1
- Noise level² 68.0 dB(A)
- Flange Without
- Rated voltage 230/460 V
- LRC 7.2x(Code H)
- No load current 6.00/3.00 A
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Approx. weight³ 146 lb
- Number of Poles 2
- Service factor 1.25
- Temperature rise 80 K
- Slip 1.94 %
- Moment of inertia (J) 0.4665 sq.ft.lb
- Enclosure IC411 - TEFC
- Mounting F-3
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP55
- Terminal box¹ Top
- Synchronous speed 3600 rpm
- Output rating 7.5 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
