11805057 WEG AC Motors
Part#:11805057
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

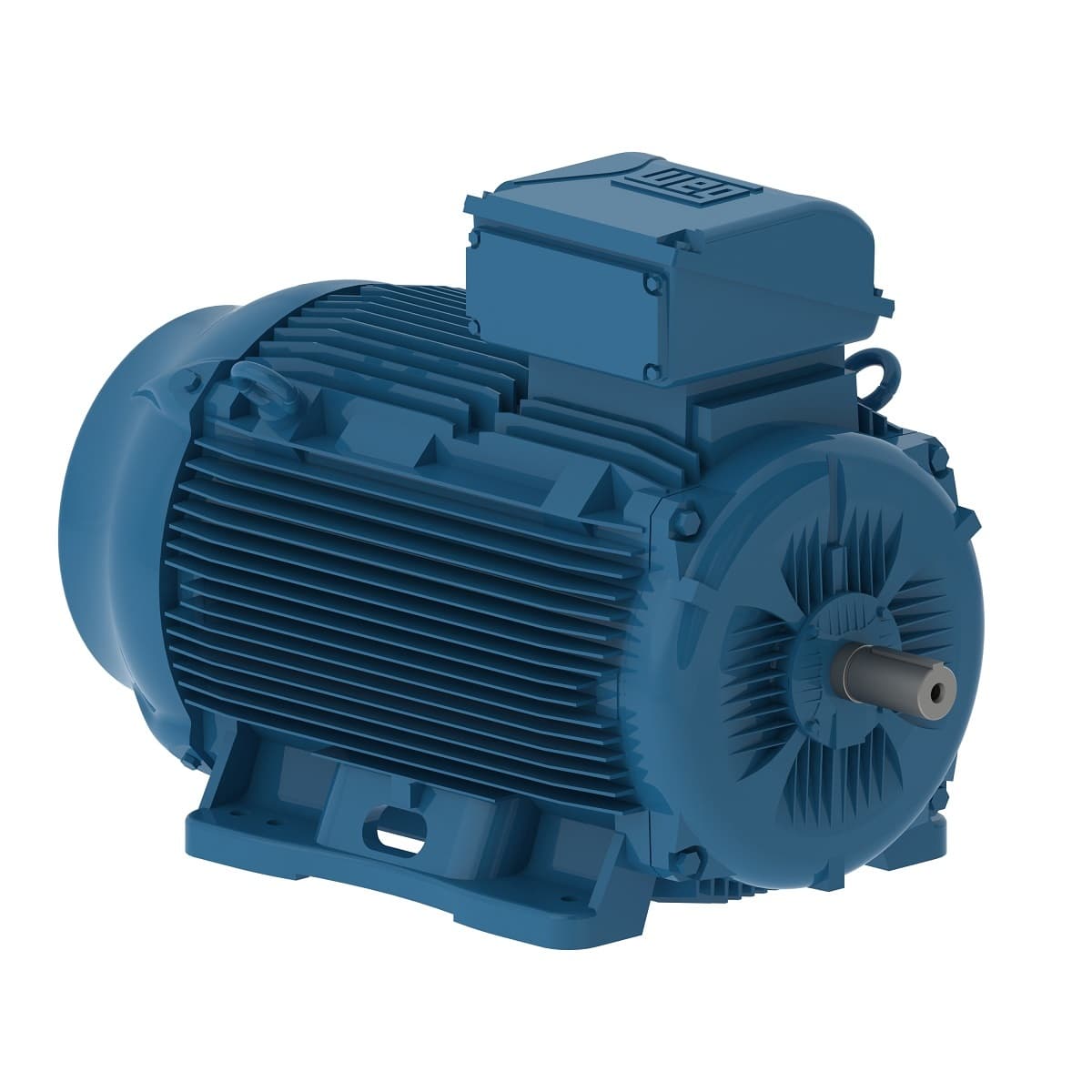

W22 NEMA Premium Efficiency 200 HP 4P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11805057 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 460 V
- Rotation¹ Both (CW and CCW)
- Service factor 1.15
- Frame 445/7T
- Moment of inertia (J) 76.2 sq.ft.lb
- Approx. weight³ 2010 lb
- Degree of Protection IP55
- Rated speed 1785 rpm
- Rated torque 588 ft.lb
- Locked rotor time 28s (cold) 16s (hot)
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Flange Without
- Rated current 230 A
- Locked rotor torque 229 %
- Breakdown torque 250 %
- Standard NEMA MG-1
- Output 200 HP (150 kW)
- Duty Cycle Cont.(S1)
- Output rating 200 HP
- LRC 6.8x(Code G)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Top
- L. R. Amperes 1564 A
- No load current 70.0 A
- Starting Method Direct On Line
- Number of poles 4
- Slip 0.83 %
- Insulation Class F
- Noise level² 73.0 dB(A)
- Voltage 460 V
- Number of Poles 4
- Design B
- Ambient temperature -20°C to +40°C
- Mounting F-3
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
