11804412 WEG AC Motors
Part#:11804412
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

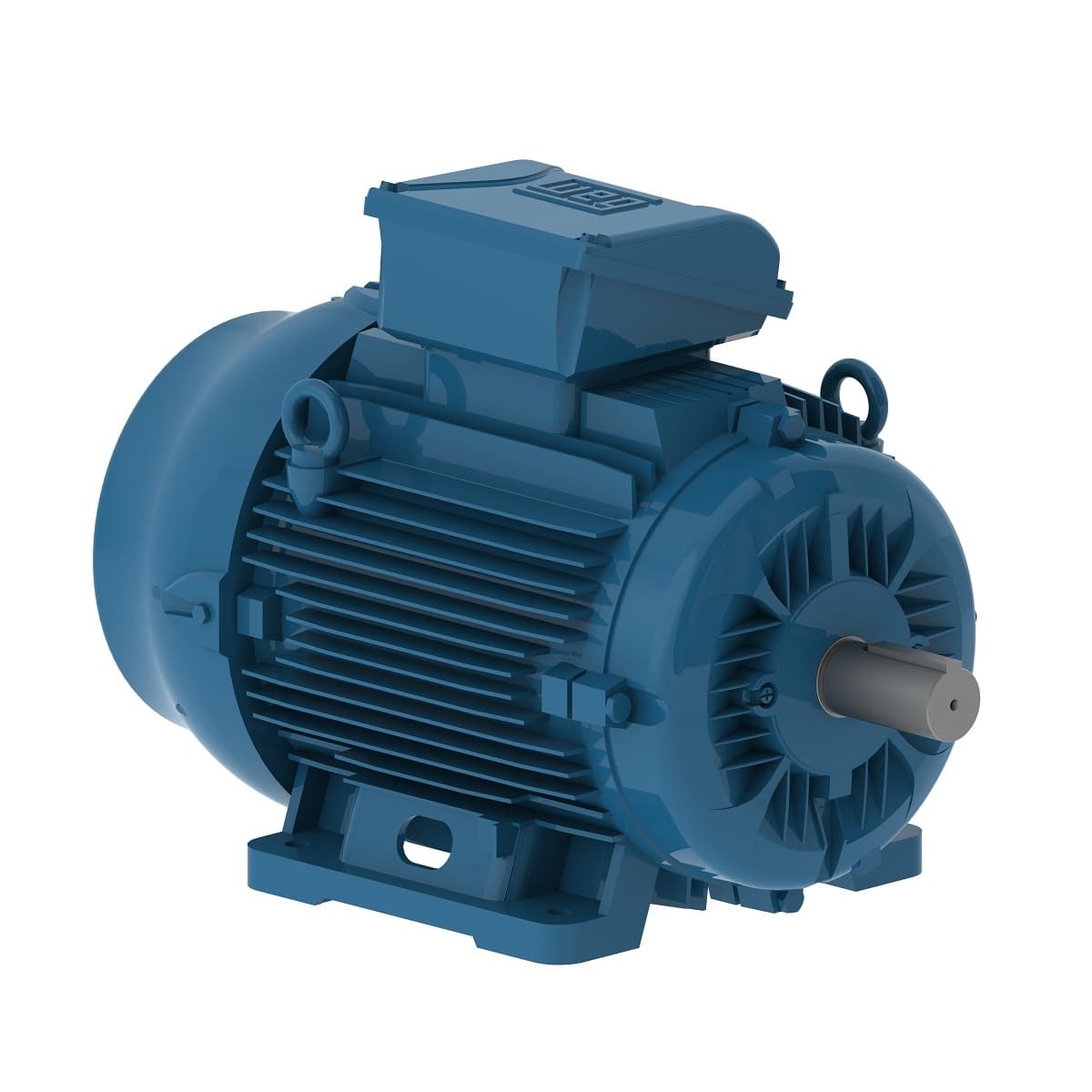

W22 NEMA Premium Efficiency 50 HP 4P 326T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11804412 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.39 %
- Rated torque 148 ft.lb
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- L. R. Amperes 734/367 A
- Service factor 1.25
- Approx. weight³ 596 lb
- Number of Poles 4
- Insulation Class F
- Mounting F-3
- Terminal box¹ Top
- Output 50 HP (37 kW)
- No load current 47.0/23.5 A
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Frame 326T
- Design B
- Enclosure IC411 - TEFC
- Output rating 50 HP
- Rated speed 1775 rpm
- Moment of inertia (J) 9.16 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated current 118/59.2 A
- Locked rotor time 27s (cold) 15s (hot)
- Standard NEMA MG-1
- LRC 6.2x(Code G)
- Temperature rise 80 K
- Voltage 230/460//380 V
- Frequency 60 Hz
- Breakdown torque 270 %
- Degree of Protection IP55
- Rated voltage 230/460 V
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Noise level² 70.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
