11804415 WEG AC Motors
Part#:11804415
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

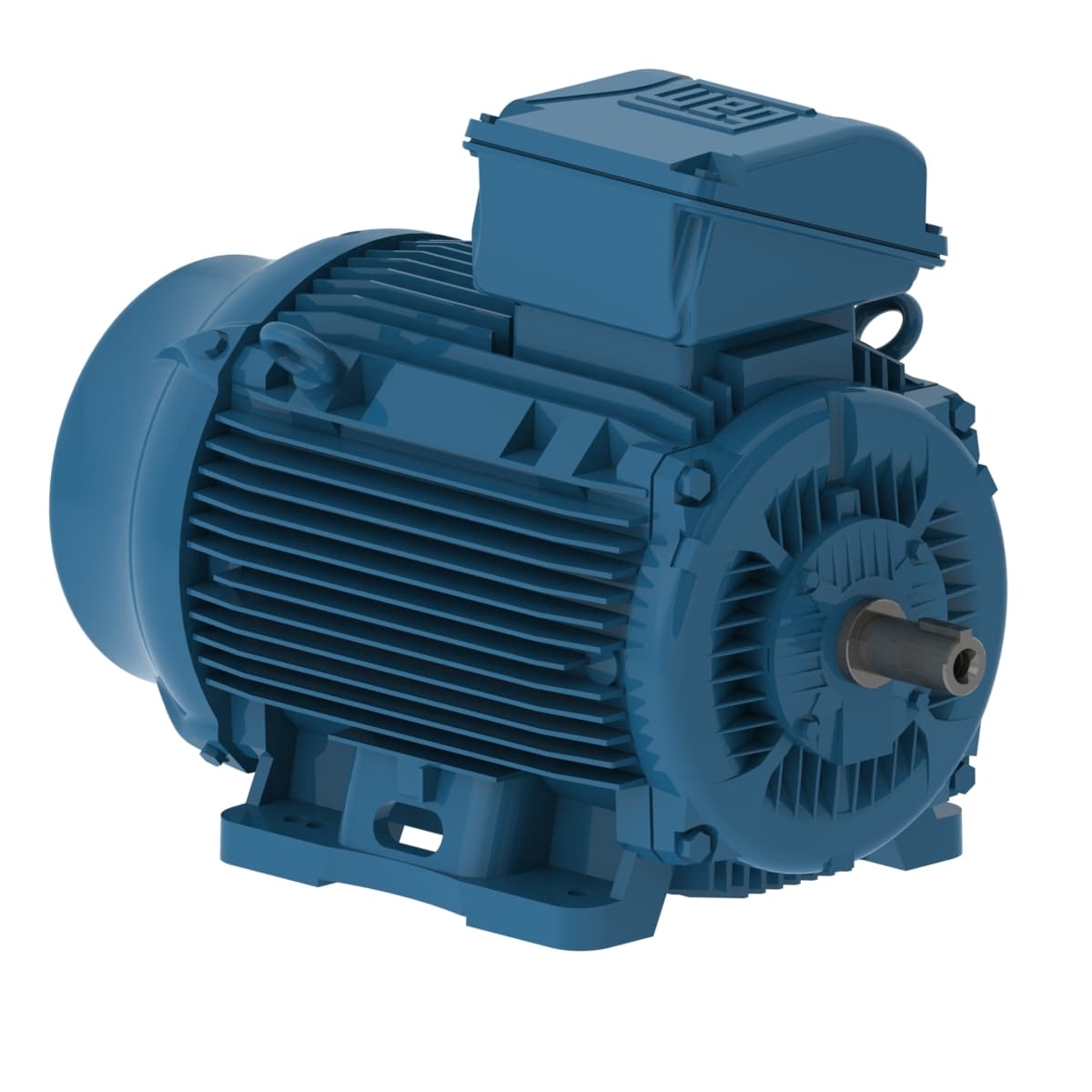

W22 NEMA Premium Efficiency 60 HP 4P 364/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11804415 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 60 HP (45 kW)
- Rated torque 177 ft.lb
- LRC 6.2x(Code G)
- Insulation Class F
- Approx. weight³ 935 lb
- Rated speed 1780 rpm
- Design B
- Noise level² 67.0 dB(A)
- Flange Without
- Rated voltage 230/460 V
- Breakdown torque 240 %
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- No load current 56.0/28.0 A
- Degree of Protection IP55
- Terminal box¹ Top
- L. R. Amperes 888/444 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.25
- Mounting F-3
- Synchronous speed 1800 rpm
- Frame 364/5T
- Locked rotor time 27s (cold) 15s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Slip 1.11 %
- Locked rotor torque 220 %
- Moment of inertia (J) 22.4 sq.ft.lb
- Enclosure IC411 - TEFC
- Output rating 60 HP
- Rated current 143/71.6 A
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Starting Method Direct On Line
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11804415 Specs
1-year warranty
