11448097 WEG AC Motors
Part#:11448097
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

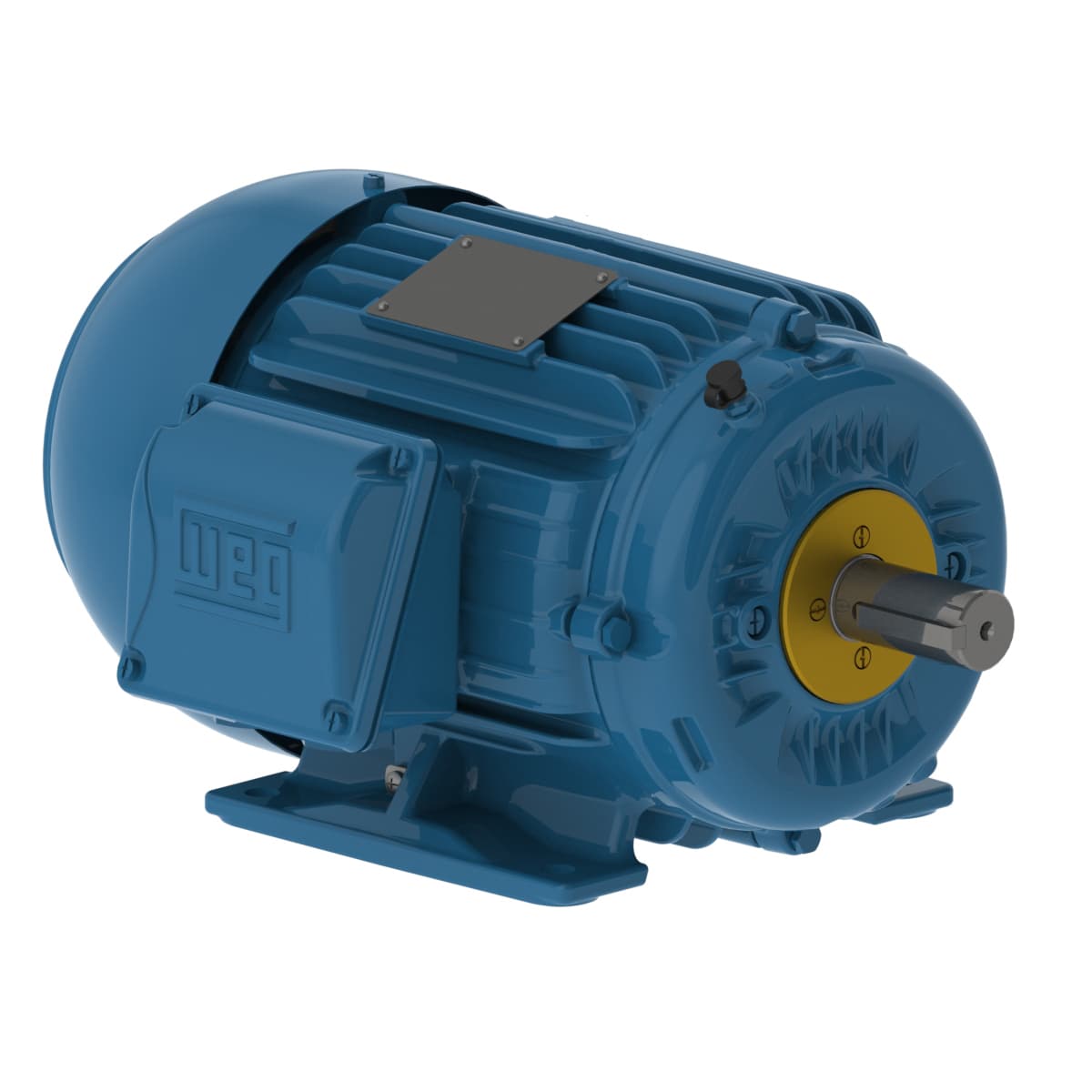

W22 IEEE 841 NEMA Premium Efficiency 2 HP 4P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11448097 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 2.23 A
- Rated torque 6.00 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Rated voltage 575 V
- Ambient temperature -20°C to +40°C
- Output 2 HP (1.5 kW)
- No load current 1.30 A
- Locked rotor torque 270 %
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- L. R. Amperes 18.5 A
- Locked rotor time 18s (cold) 10s (hot)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Number of poles 4
- Slip 2.78 %
- Breakdown torque 320 %
- Mounting F-1
- LRC 8.3x(Code L)
- Starting Method Direct On Line
- Voltage 575 V
- Frequency 60 Hz
- Design B
- Service factor 1.25
- Approx. weight³ 61.0 lb
- Number of Poles 4
- Moment of inertia (J) 0.1561 sq.ft.lb
- Degree of Protection IP56
- Flange Without
- Rated speed 1750 rpm
- Insulation Class F
- Noise level² 51.0 dB(A)
- Terminal box¹ Left position
- Frame 143/5T
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
