11447364 WEG AC Motors
Part#:11447364
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

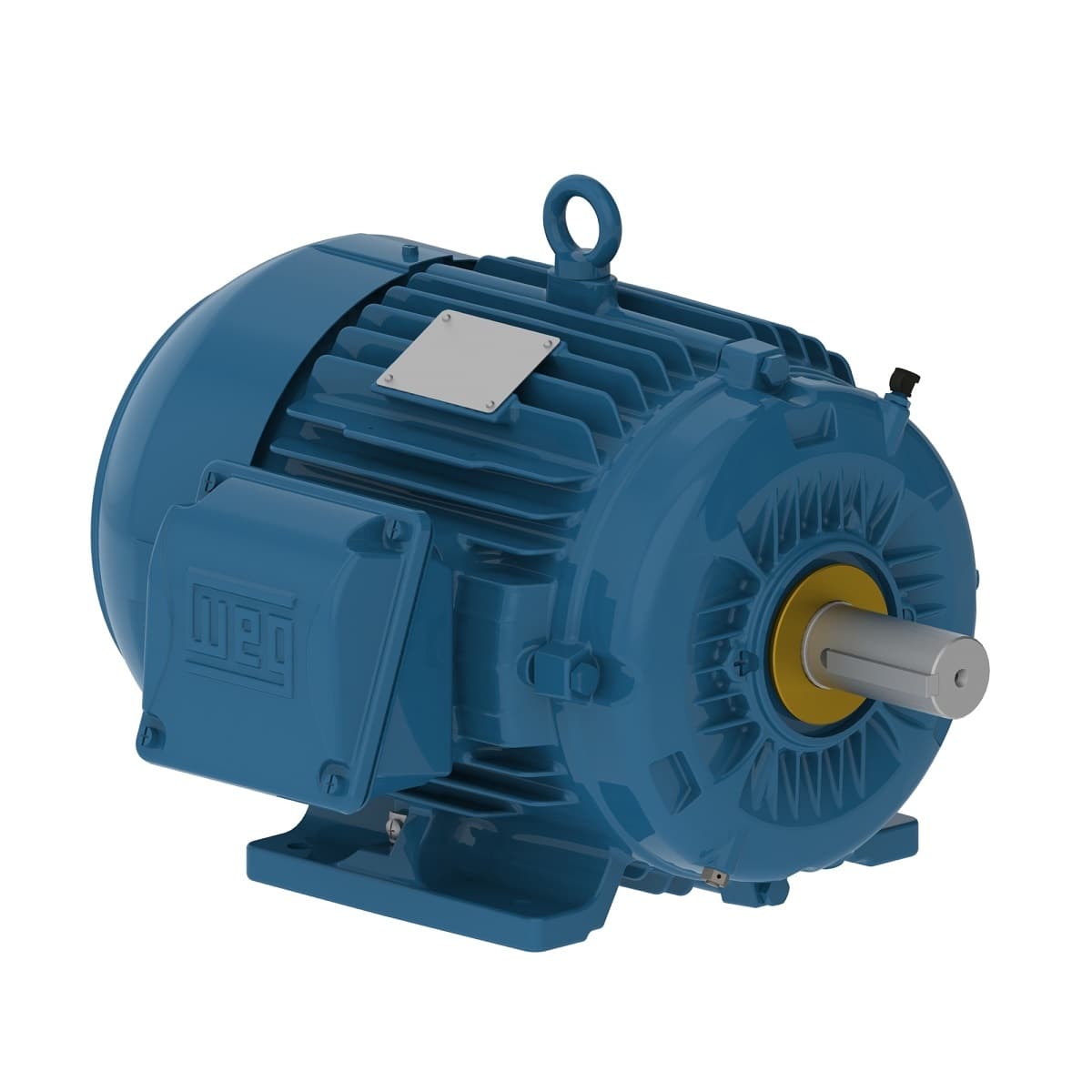

W22 IEEE 841 NEMA Premium Efficiency 3 HP 6P 213T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11447364 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 30.9 A
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Rated voltage 460 V
- Locked rotor time 104s (cold) 58s (hot)
- Enclosure IC411 - TEFC
- Synchronous speed 1200 rpm
- Rated speed 1175 rpm
- Moment of inertia (J) 1.20 sq.ft.lb
- Degree of Protection IP55
- Output rating 3 HP
- Slip 2.08 %
- Rated torque 13.4 ft.lb
- Starting Method Direct On Line
- Voltage 460 V
- Number of Poles 6
- Design B
- Mounting F-1
- Terminal box¹ Left position
- LRC 7.0x(Code K)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.25
- Approx. weight³ 339 lb
- Frame 213T
- Locked rotor torque 200 %
- Temperature rise 80 K
- Noise level² 55.0 dB(A)
- Rated current 4.41 A
- No load current 2.75 A
- Altitude 1000 m.a.s.l.
- Flange Without
- Output 3 HP (2.2 kW)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11447364 Specs
1-year warranty
