11447451 WEG AC Motors
Part#:11447451
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

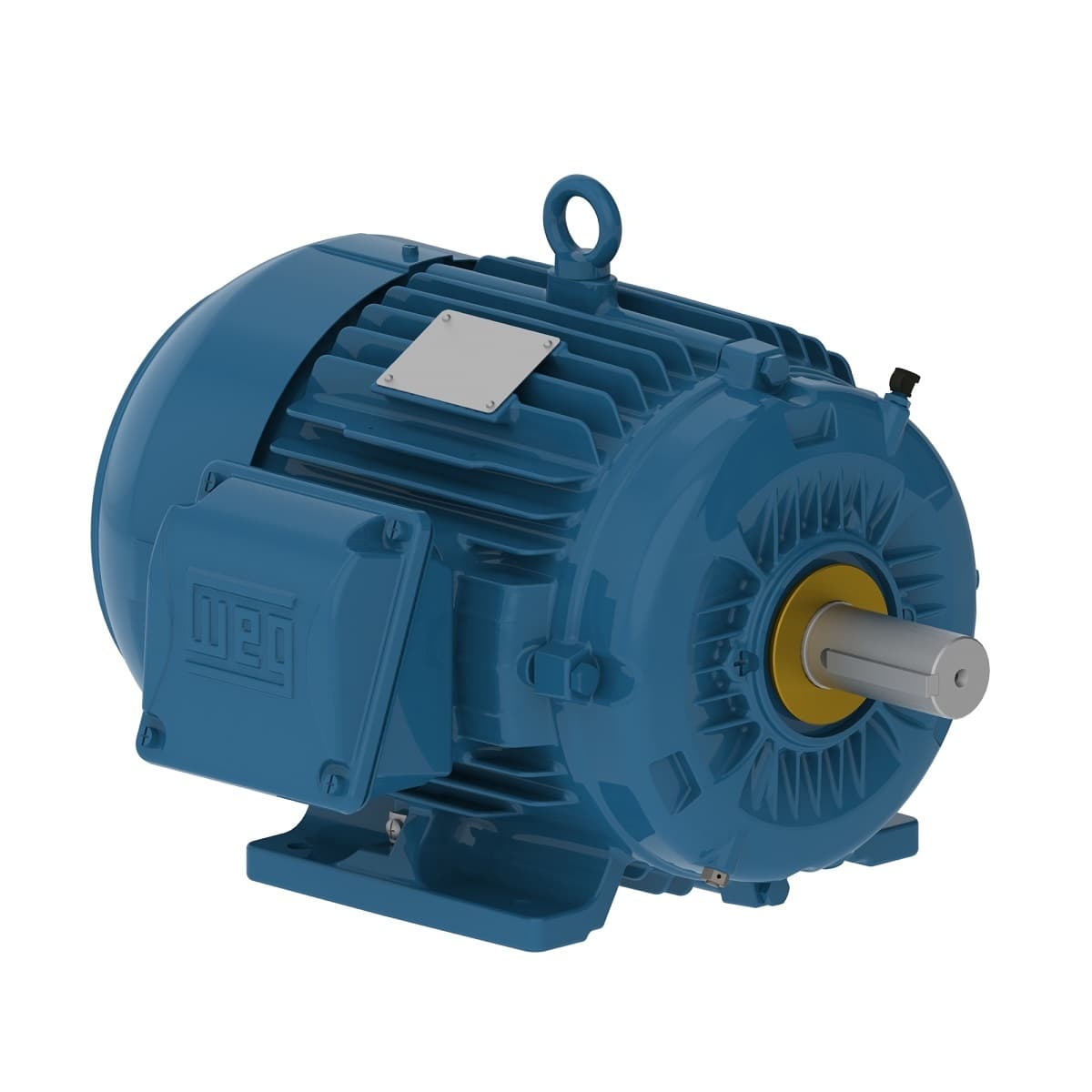

W22 IEEE 841 NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11447451 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 2.58 A
- Locked rotor time 55s (cold) 31s (hot)
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Rated torque 8.98 ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- L. R. Amperes 19.3 A
- Moment of inertia (J) 0.6210 sq.ft.lb
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Frame 182/4T
- Duty Cycle Cont.(S1)
- Mounting F-1
- Rated speed 1170 rpm
- Design B
- Noise level² 52.0 dB(A)
- Flange Without
- Rated voltage 575 V
- Service factor 1.25
- Degree of Protection IP56
- Output rating 2 HP
- Slip 2.50 %
- Locked rotor torque 300 %
- Starting Method Direct On Line
- Voltage 575 V
- Number of Poles 6
- No load current 1.52 A
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Output 2 HP (1.5 kW)
- Insulation Class F
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- LRC 7.5x(Code L)
- Breakdown torque 350 %
- Approx. weight³ 109 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11447451 Specs
