11442842 WEG AC Motors
Part#:11442842
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

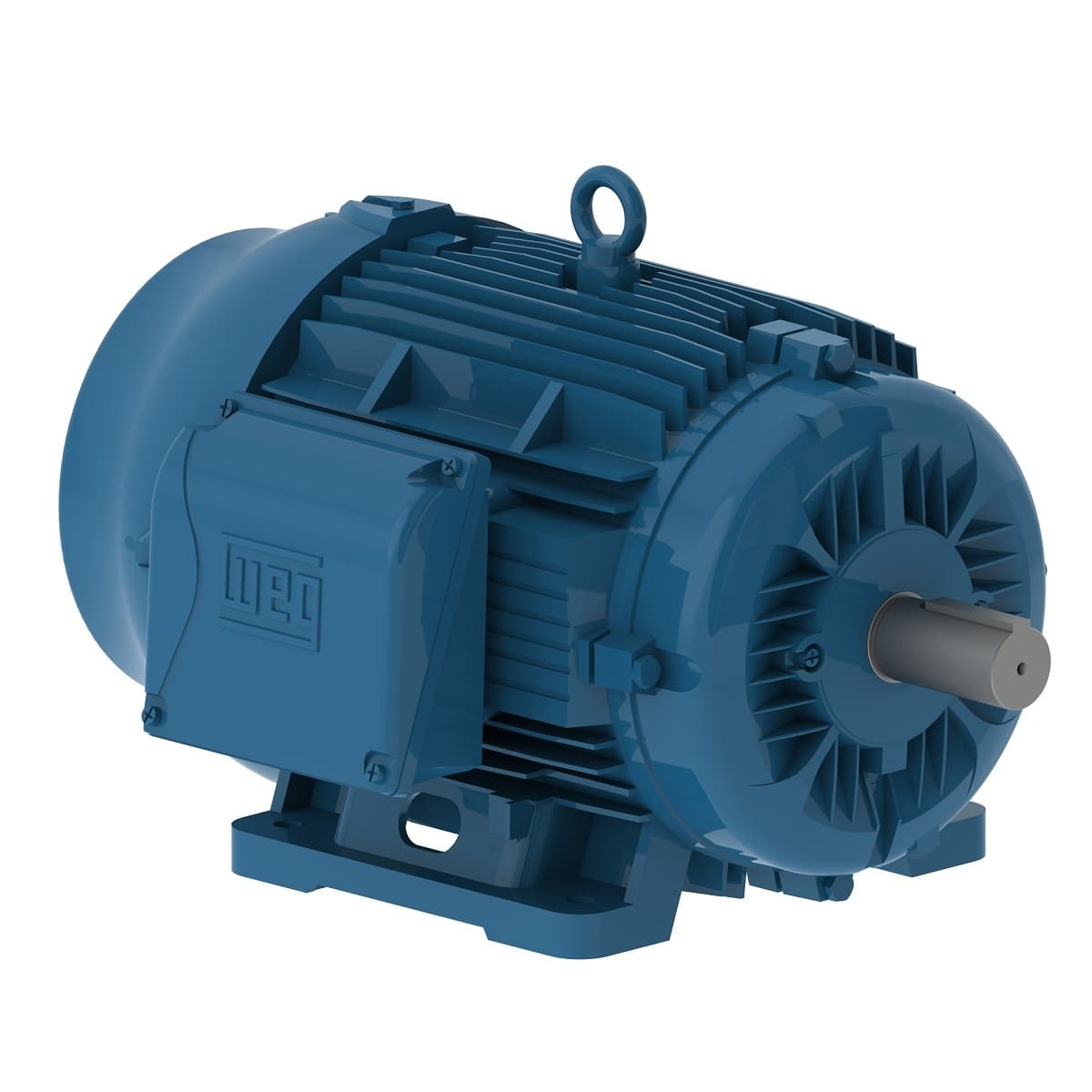

W22 NEMA Premium Efficiency 15 HP 6P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11442842 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 15 HP (11 kW)
- Insulation Class F
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- LRC 6.4x(Code G)
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Output rating 15 HP
- Rated speed 1175 rpm
- Starting Method Direct On Line
- Noise level² 59.0 dB(A)
- Frame 284T
- Locked rotor time 36s (cold) 20s (hot)
- Mounting F-1
- Terminal box¹ Left position
- L. R. Amperes 229/115 A
- Voltage 230/460//380 V
- Number of Poles 6
- Service factor 1.25
- Flange Without
- Frequency 60 Hz
- Slip 2.08 %
- Approx. weight³ 382 lb
- Design B
- Moment of inertia (J) 7.85 sq.ft.lb
- Degree of Protection IP55
- No load current 14.0/7.00 A
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Rated current 35.8/17.9 A
- Rated torque 67.0 ft.lb
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Locked rotor torque 229 %
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
