11356432 WEG AC Motors
Part#:11356432
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

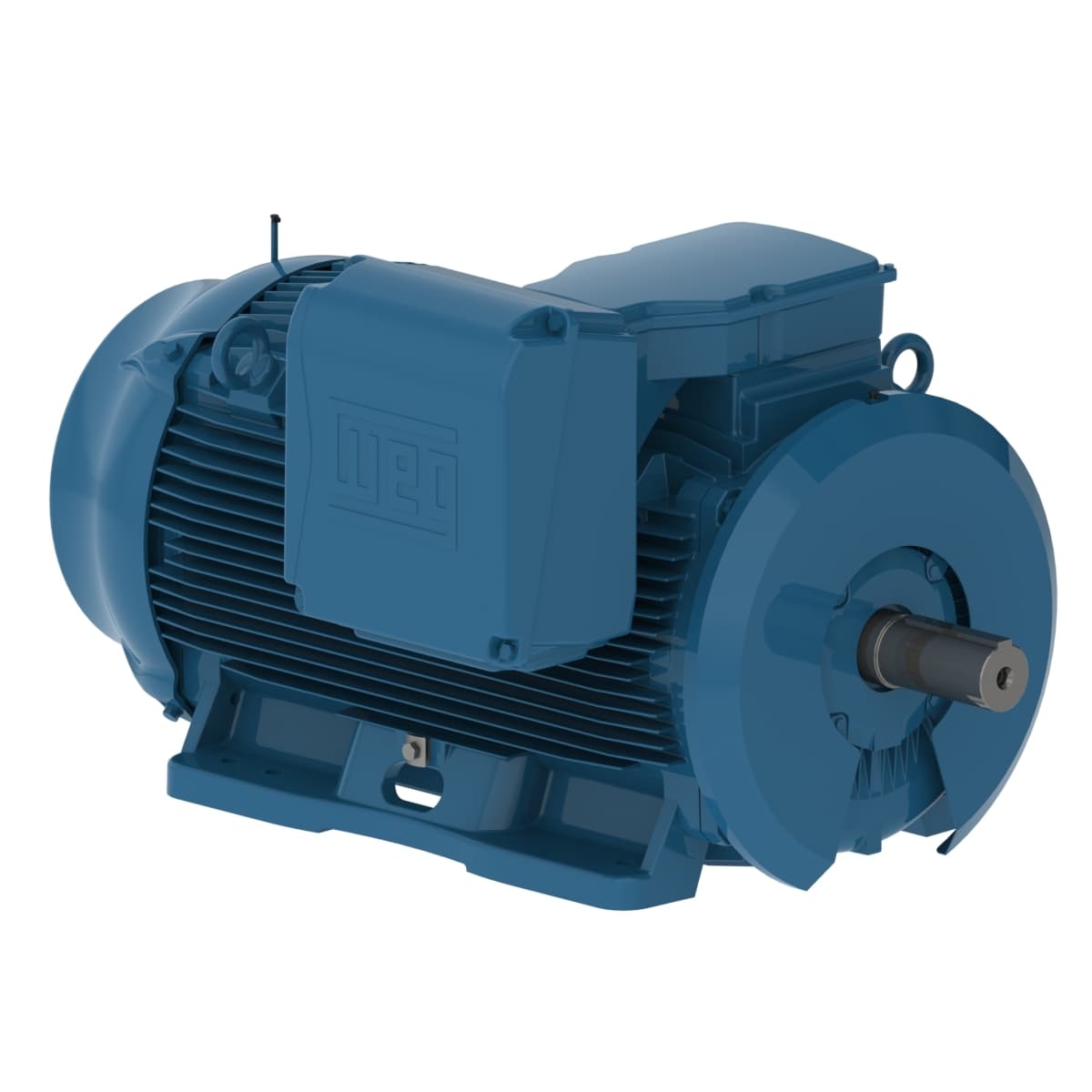

W22 High Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11356432 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 3485 A
- Locked rotor time 18s (cold) 10s (hot)
- Enclosure IC411 - TEFC
- Approx. weight³ 3010 lb
- Number of Poles 6
- Breakdown torque 350 %
- Ambient temperature -20°C to +40°C
- Output rating 300 HP
- Altitude 1000 m.a.s.l.
- Output 300 HP (220 kW)
- Design B
- Mounting F-1
- Rated voltage 460 V
- Moment of inertia (J) 169 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Slip 0.83 %
- LRC 9.6x(Code L)
- Service factor 1.15
- Number of poles 6
- Frequency 60 Hz
- Rated torque 1320 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 1190 rpm
- No load current 190 A
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- Rated current 363 A
- Locked rotor torque 320 %
- Degree of Protection IP55
- Flange Without
- Frame 447/9T
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11356432 Specs
