11356430 WEG AC Motors
Part#:11356430
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

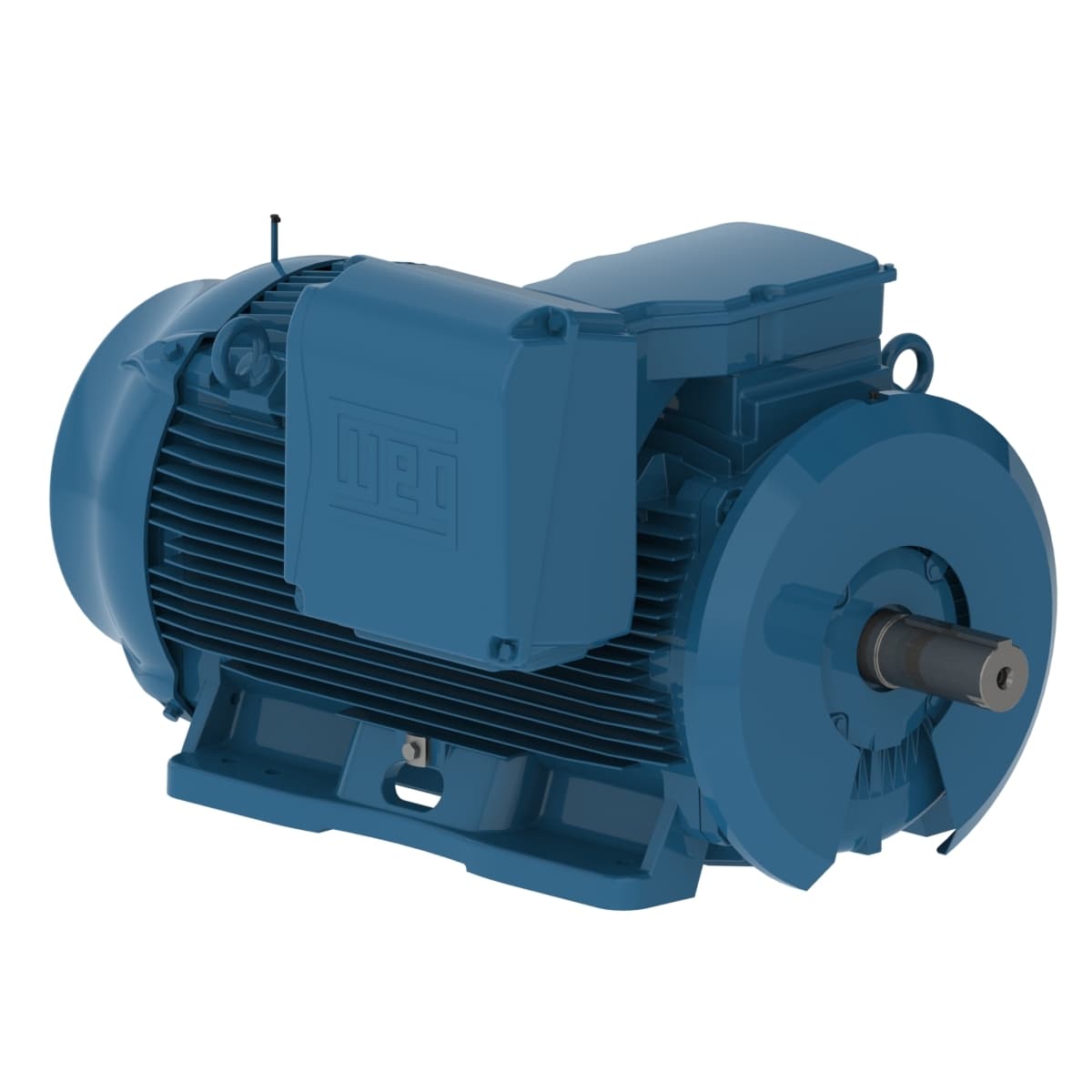

W22 High Efficiency 250 HP 6P 447/9T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11356430 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 291 A
- Locked rotor time 19s (cold) 11s (hot)
- Approx. weight³ 2653 lb
- Moment of inertia (J) 153 sq.ft.lb
- Starting Method Direct On Line
- Output rating 250 HP
- Output 250 HP (185 kW)
- Rated torque 1110 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Frame 447/9T
- LRC 6.2x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- L. R. Amperes 1804 A
- Locked rotor torque 220 %
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Frequency 60 Hz
- No load current 105 A
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Rated voltage 460 V
- Breakdown torque 220 %
- Mounting F-1
- Flange Without
- Number of Poles 6
- Service factor 1.15
- Number of poles 6
- Slip 1.25 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated speed 1185 rpm
- Design B
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11356430 Specs
1-year warranty
