11355139 WEG AC Motors
Part#:11355139
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

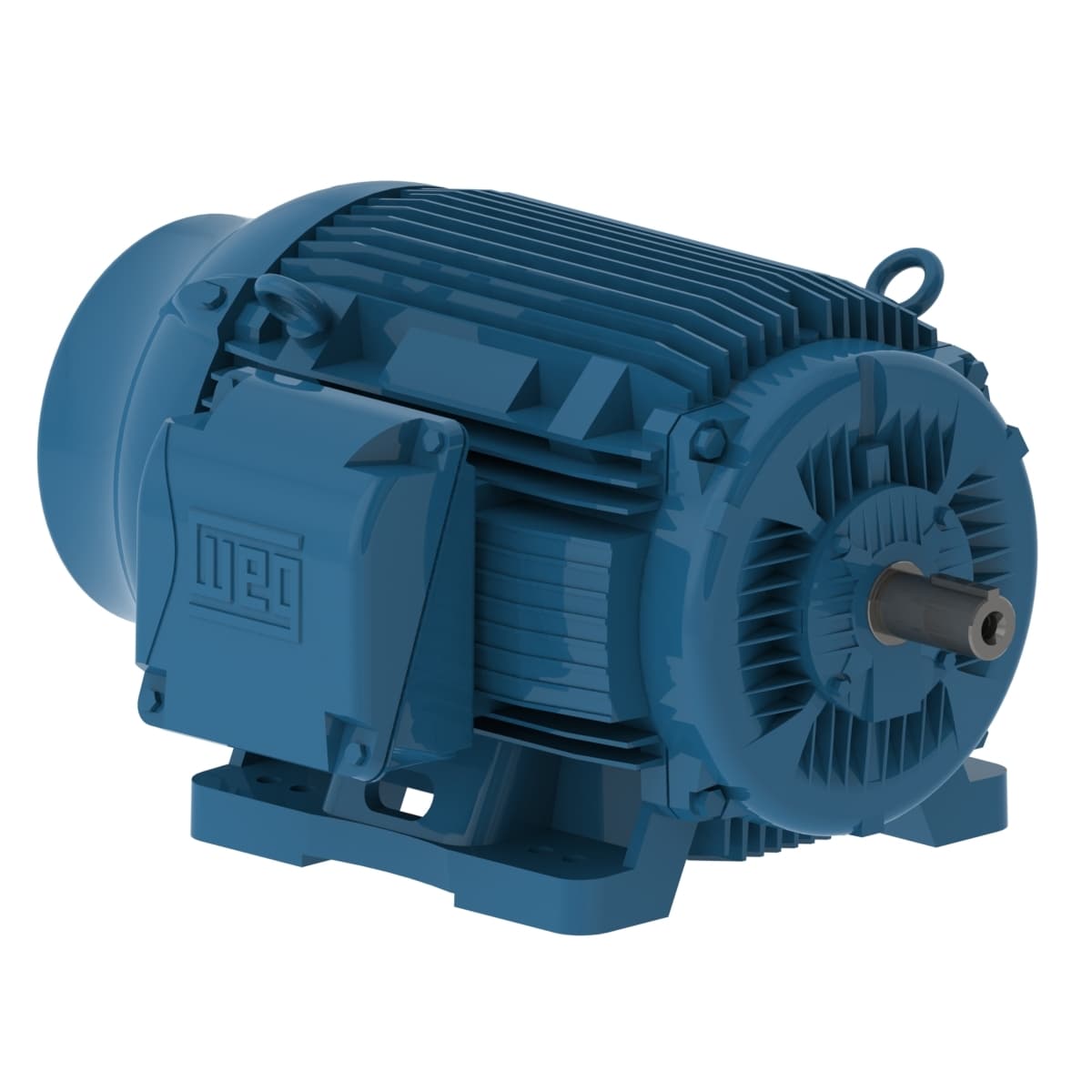

W22 High Efficiency 40 HP 6P 364/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11355139 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 575 V
- No load current 13.6 A
- Frame 364/5T
- Moment of inertia (J) 23.5 sq.ft.lb
- Number of Poles 6
- Service factor 1.25
- Number of poles 6
- L. R. Amperes 234 A
- Altitude 1000 m.a.s.l.
- Approx. weight³ 889 lb
- Rated current 37.7 A
- Locked rotor torque 190 %
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Breakdown torque 229 %
- Temperature rise 80 K
- Flange Without
- Output 40 HP (30 kW)
- Design B
- Starting Method Direct On Line
- Mounting F-1
- Output rating 40 HP
- Slip 1.67 %
- Locked rotor time 28s (cold) 16s (hot)
- Degree of Protection IP55
- Noise level² 66.0 dB(A)
- Rated speed 1180 rpm
- LRC 6.2x(Code G)
- Standard NEMA MG-1
- Insulation Class F
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Terminal box¹ Left position
- Rated torque 178 ft.lb
- Voltage 575 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11355139 Specs
