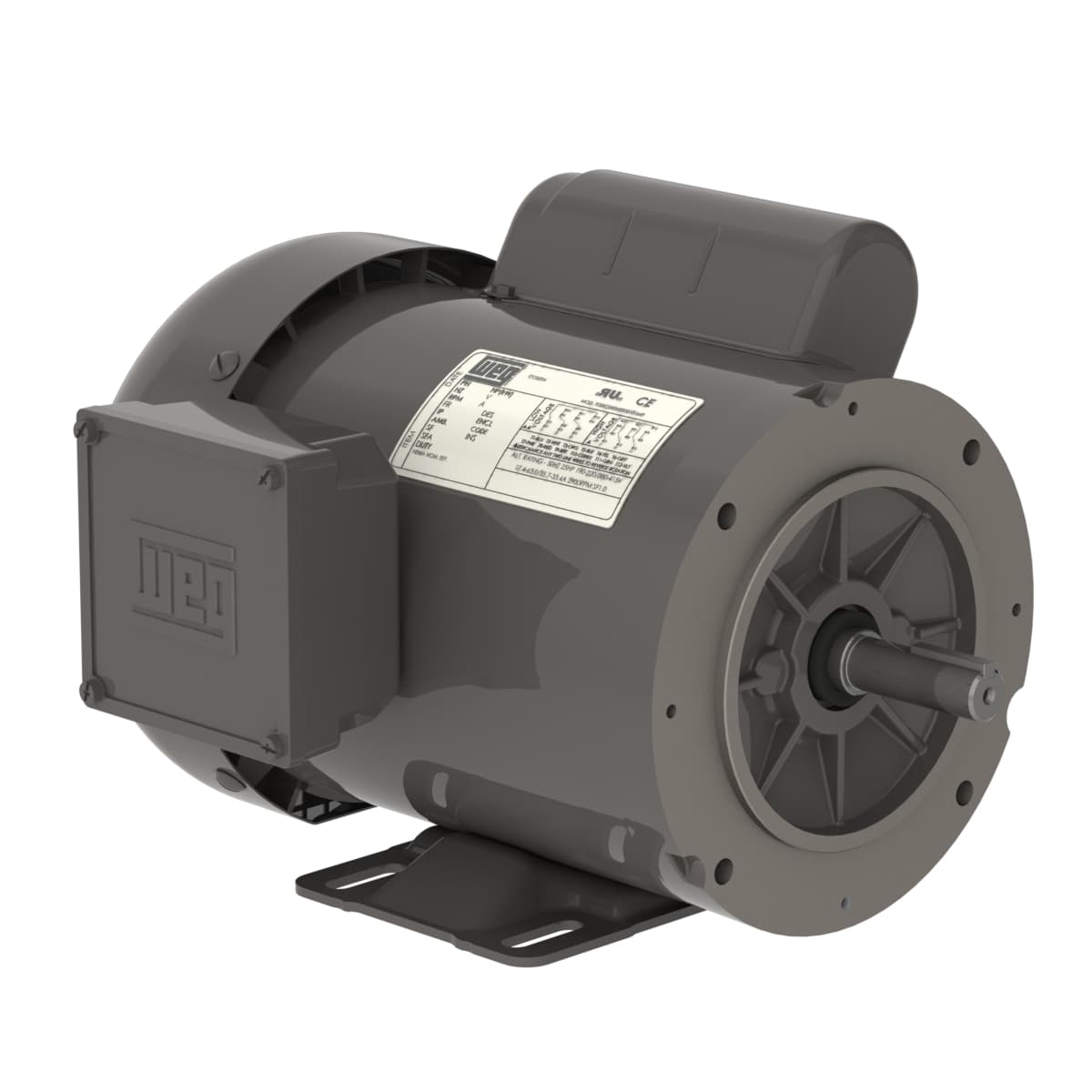

10022075 WEG AC Motors
Part#:10022075
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General 0.5 HP 4P B56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10022075 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 4
- Locked rotor torque 290 %
- Mounting F-1
- Flange FC 149
- Frame B56C
- Output 0.5 HP (0.37 kW)
- Moment of inertia (J) 0.0804 sq.ft.lb
- Noise level² 55.0 dB(A)
- Slip 2.78 %
- Rated current 7.44/3.60-3.72 A
- Frequency 60 Hz
- Rated torque 1.50 ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated voltage 115/208-230 V
- Locked rotor time 10s (cold) 6s (hot)
- LRC 5.8x(Code L)
- Duty Cycle Cont.(S1)
- Voltage 115/208-230 V
- Rated speed 1750 rpm
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Output rating 0.5 HP
- L. R. Amperes 43.2/20.9-21.6 A
- Service factor 1.15 (1.00 @ 208V)
- Rotation¹ Both (CW and CCW)
- No load current 6.00/2.59-3.00 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Insulation Class B
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Temperature rise 80 K
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Approx. weight³ 26.9 lb
