10023133 WEG AC Motors
Part#:10023133
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

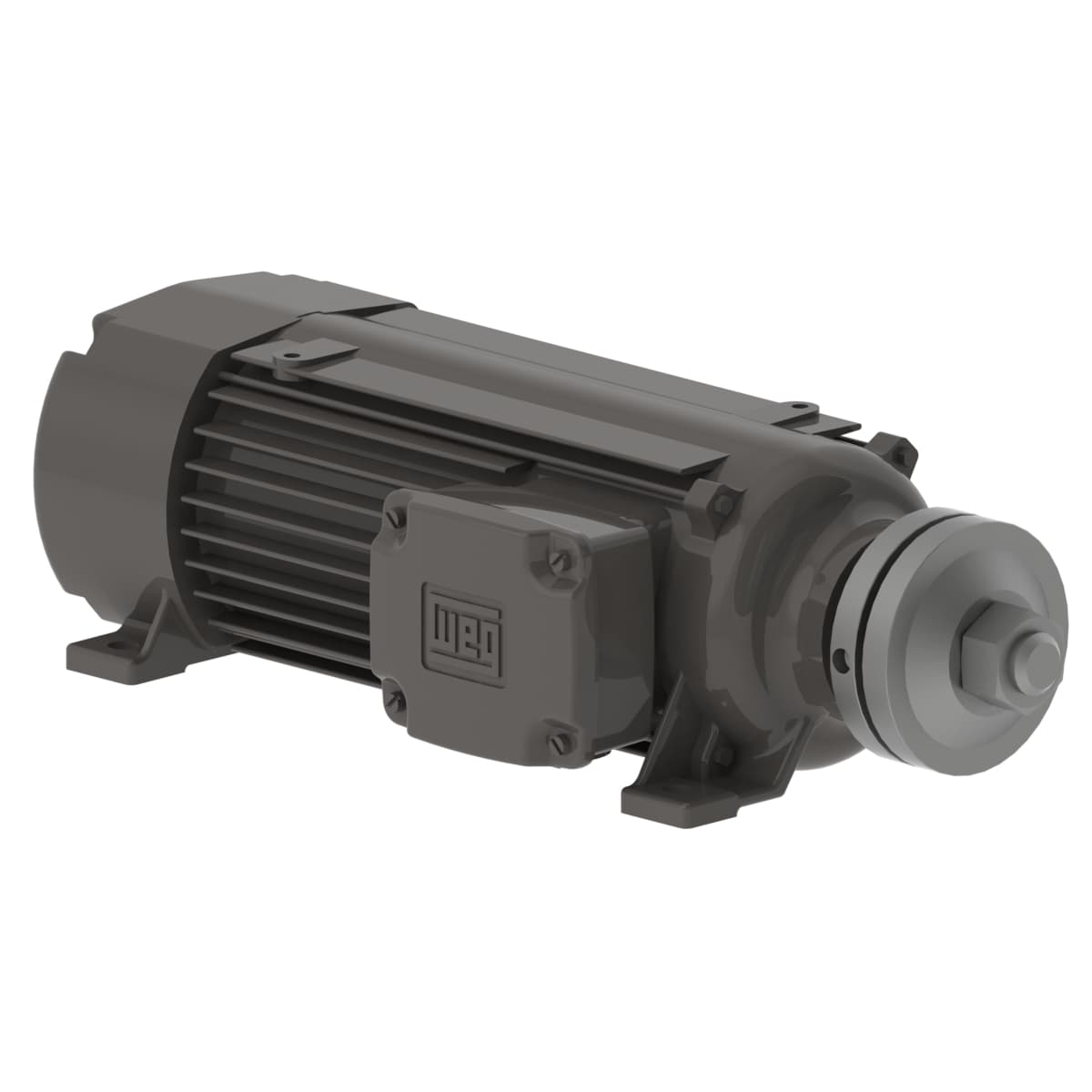

Saw Arbor Motor Standard Efficiency 5 HP 2P 80M/MS 3Ph 208-230/460 V 60 Hz IC411 - TEFC - B3R(D)
Check out the 10023133 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 5 HP (3.7 kW)
- Breakdown torque 409 %
- Rotation¹ CCW
- Frame 80M/MS
- Moment of inertia (J) 0.0978 sq.ft.lb
- Mounting B3R(D)
- Rated voltage 208-230/460 V
- No load current 6.35-5.74/2.87 A
- Ambient temperature -20°C to +40°C
- Voltage 208-230/460 V
- LRC 8.0
- Insulation Class F
- Approx. weight³ 99.4 lb
- Rated speed 3470 rpm
- Locked rotor time 12s (cold) 7s (hot)
- Starting Method Direct On Line
- Number of poles 2
- Slip 3.61 %
- Temperature rise 80 K
- Duty Cycle S1
- Flange Without
- Number of Poles 2
- Service factor 1.00
- Noise level² 62.0 dB(A)
- Frequency 60 Hz
- Locked rotor torque 340 %
- Degree of Protection IP54
- Synchronous speed 3600 rpm
- Rated current 14.7-13.3/6.65 A
- Design N
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- L. R. Amperes 118-106/53.2 A
- Rated torque 7.57 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 5 HP
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
