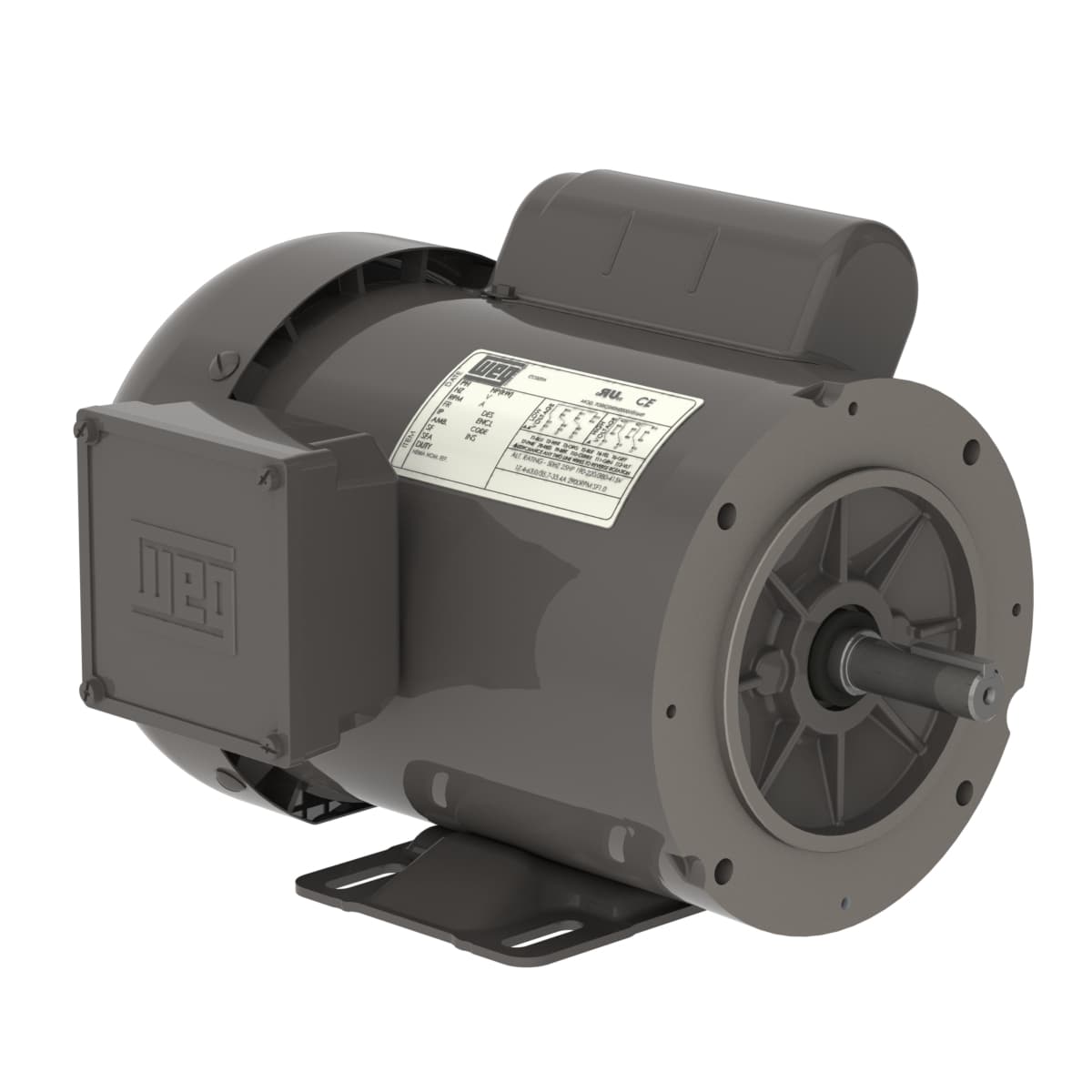

10022062 WEG AC Motors
Part#:10022062
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General 0.25 HP 4P B56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10022062 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 0.25 HP (0.18 kW)
- Moment of inertia (J) 0.0536 sq.ft.lb
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Locked rotor torque 360 %
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Flange FC 149
- Rated current 4.70/2.20-2.35 A
- L. R. Amperes 27.3/12.8-13.6 A
- Slip 2.78 %
- No load current 4.00/1.72-2.00 A
- Enclosure IC411 - TEFC
- Approx. weight³ 22.1 lb
- Rated speed 1750 rpm
- LRC 5.8x(Code P)
- Locked rotor time 10s (cold) 6s (hot)
- Noise level² 50.0 dB(A)
- Output rating 0.25 HP
- Frame B56C
- Breakdown torque 280 %
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Number of Poles 4
- Insulation Class B
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated voltage 115/208-230 V
- Rated torque 0.750 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 115/208-230 V
- Frequency 60 Hz
- Service factor 1.15 (1.00 @ 208V)
- Mounting F-1
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10022062 Specs
1-year warranty
