10023141 WEG AC Motors
Part#:10023141
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

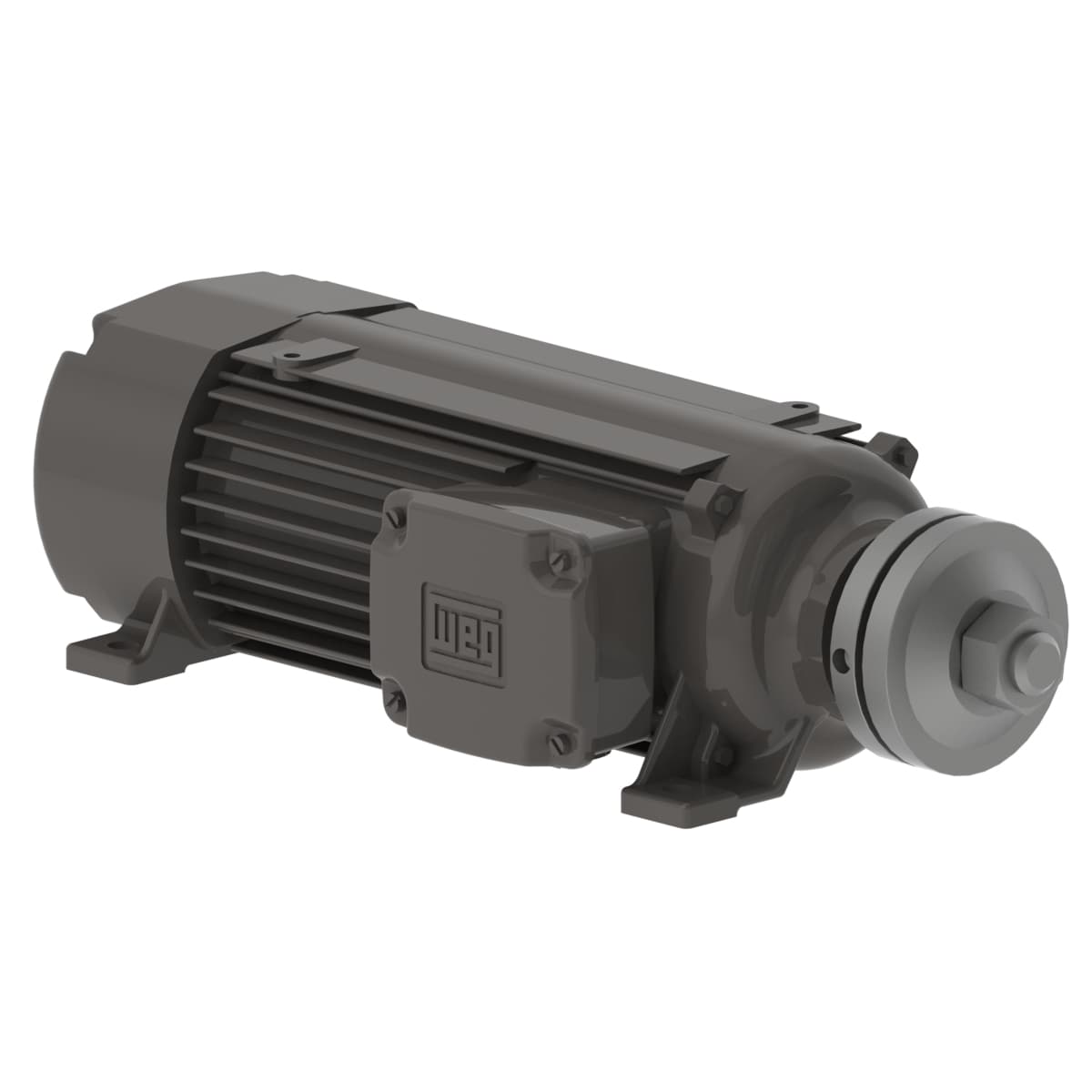

Saw Arbor Motor Standard Efficiency 3 HP 2P 80S/MS 3Ph 208-230/460 V 60 Hz IC411 - TEFC - B3R(D)
Check out the 10023141 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 9.49-8.58/4.29 A
- Frequency 60 Hz
- Locked rotor time 16s (cold) 9s (hot)
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Frame 80S/MS
- Slip 2.78 %
- Breakdown torque 370 %
- Service factor 1.00
- Voltage 208-230/460 V
- Rated speed 3500 rpm
- Moment of inertia (J) 0.0747 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated voltage 208-230/460 V
- Design N
- Approx. weight³ 84.8 lb
- Number of Poles 2
- LRC 7.3
- Insulation Class F
- Noise level² 62.0 dB(A)
- Terminal box¹ Left position
- Locked rotor torque 330 %
- Rotation¹ CW
- L. R. Amperes 69.3-62.6/31.3 A
- Mounting B3R(D)
- Number of poles 2
- Output 3 HP (2.2 kW)
- Degree of Protection IP54
- Flange Without
- Rated torque 4.50 ft.lb
- Temperature rise 80 K
- Duty Cycle S1
- Output rating 3 HP
- No load current 4.55-4.11/2.06 A
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
