10021666 WEG AC Motors
Part#:10021666
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

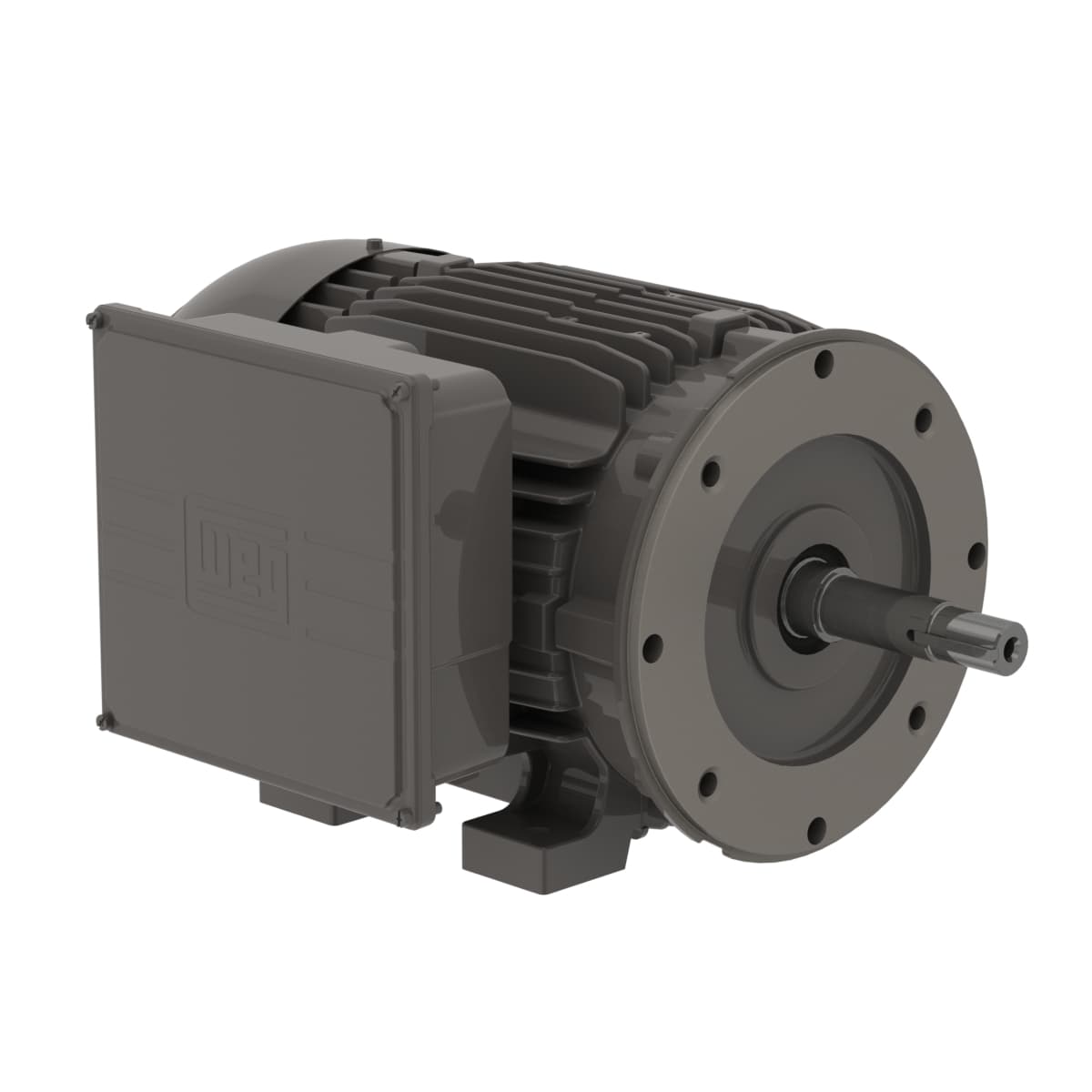

Close Coupled Pump 3 HP 2P 145JM 1Ph 208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10021666 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 208-230 V
- Rated torque 4.50 ft.lb
- Ambient temperature -20°C to +40°C
- L. R. Amperes 102-94.5 A
- Insulation Class F
- Rotation¹ CCW
- Voltage 208-230 V
- Frame 145JM
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Output 3 HP (2.2 kW)
- Moment of inertia (J) 0.0664 sq.ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- Frequency 60 Hz
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 3500 rpm
- Breakdown torque 229 %
- Mounting F-1
- Terminal box¹ Left position
- Locked rotor torque 210 %
- LRC 7.0x(Code J)
- Degree of Protection IP55
- Output rating 3 HP
- Rated current 14.6-13.5 A
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor time 14s (cold) 8s (hot)
- Approx. weight³ 67.2 lb
- Slip 2.78 %
- No load current 4.57-5.30 A
- Service factor 1.15 (1.00 @ 208V)
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10021666 Specs
