10018OT3E404TS-W40G WEG AC Motors
Part#:10018OT3E404TS-W40G
Manufacturer:WEG
Alt. Part#:7909323934388
Product Lifecycle:Active
Get a quick Quote!

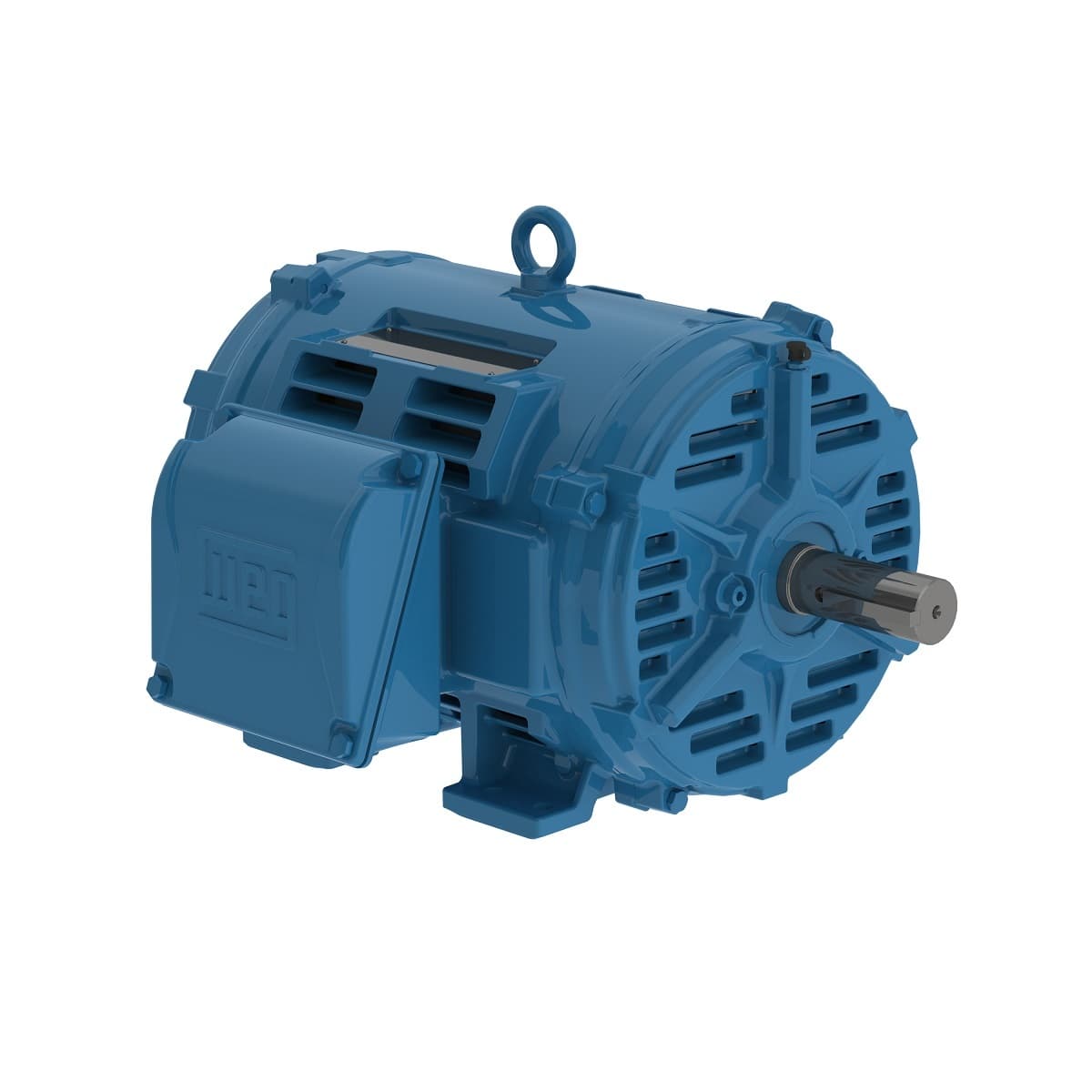

W40 NEMA Premium Efficiency 100 HP 4P 404/5TS 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 10018OT3E404TS-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Output 100 HP (75 kW)
- Number of Poles 4
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Noise level² 69.0 dB(A)
- Rated voltage 230/460 V
- Rated current 229/115 A
- Slip 1.11 %
- No load current 74.0/37.0 A
- Moment of inertia (J) 21.9 sq.ft.lb
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Number of poles 4
- Flange Without
- Standard NEMA MG-1
- Rated speed 1780 rpm
- Breakdown torque 250 %
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Synchronous speed 1800 rpm
- L. R. Amperes 1560/780 A
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Frequency 60 Hz
- Service factor 1.25
- Enclosure IC01 - ODP
- Output rating 100 HP
- LRC 6.8x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated torque 295 ft.lb
- Design B
- Degree of Protection IP23
- Terminal box¹ Left position
- Frame 404/5TS
- Temperature rise 80 K
- Approx. weight³ 971 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
