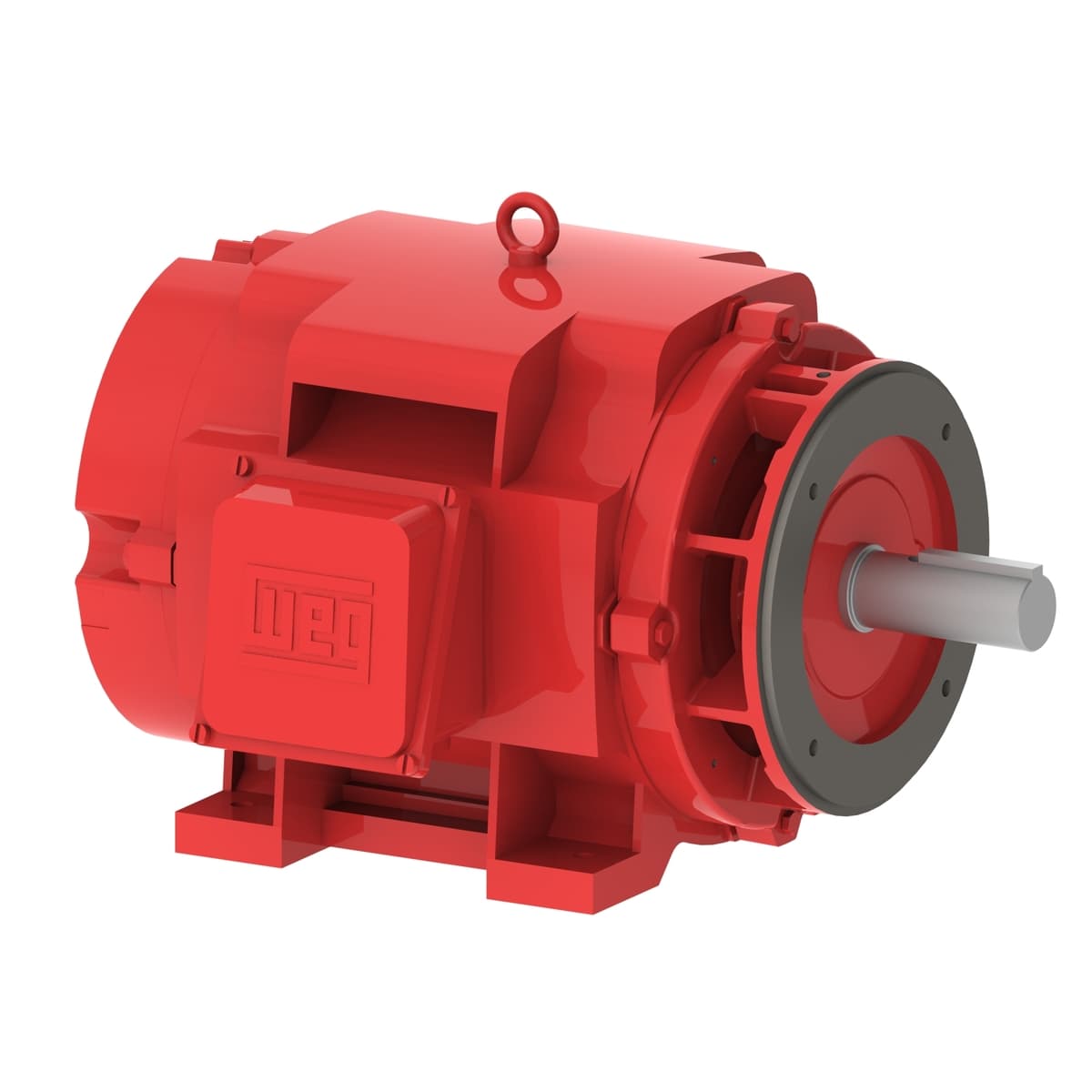

10018OP3VFP404TC WEG AC Motors
Part#:10018OP3VFP404TC
Manufacturer:WEG
Alt. Part#:7909018461281
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 100 HP 4P 404/5TC 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10018OP3VFP404TC WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- Frame 404/5TC
- Temperature rise 105 K
- Noise level² 69.0 dB(A)
- Rated voltage 200/400 V
- Rated torque 296 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 921 lb
- Voltage 200/400 V
- Frequency 60 Hz
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Output 100 HP (75 kW)
- No load current 82.8/41.4 A
- Ambient temperature -20°C to +40°C
- Number of poles 4
- L. R. Amperes 1628/814 A
- LRC 6.0x(Code G)
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Synchronous speed 1800 rpm
- Slip 1.39 %
- Locked rotor torque 220 %
- Service factor 1.15
- Standard NEMA MG-1
- Rated speed 1775 rpm
- Moment of inertia (J) 18.3 sq.ft.lb
- Insulation Class F
- Degree of Protection IP23
- Flange C
- Number of Poles 4
- Breakdown torque 250 %
- Enclosure IC01 - ODP
- Output rating 100 HP
- Locked rotor time 18s (cold) 10s (hot)
- Design B
- Rated current 271/136 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
