10015OP3OFP405TS-W40 WEG AC Motors
Part#:10015OP3OFP405TS-W40
Manufacturer:WEG
Alt. Part#:7909712249802
Product Lifecycle:Active
Get a quick Quote!

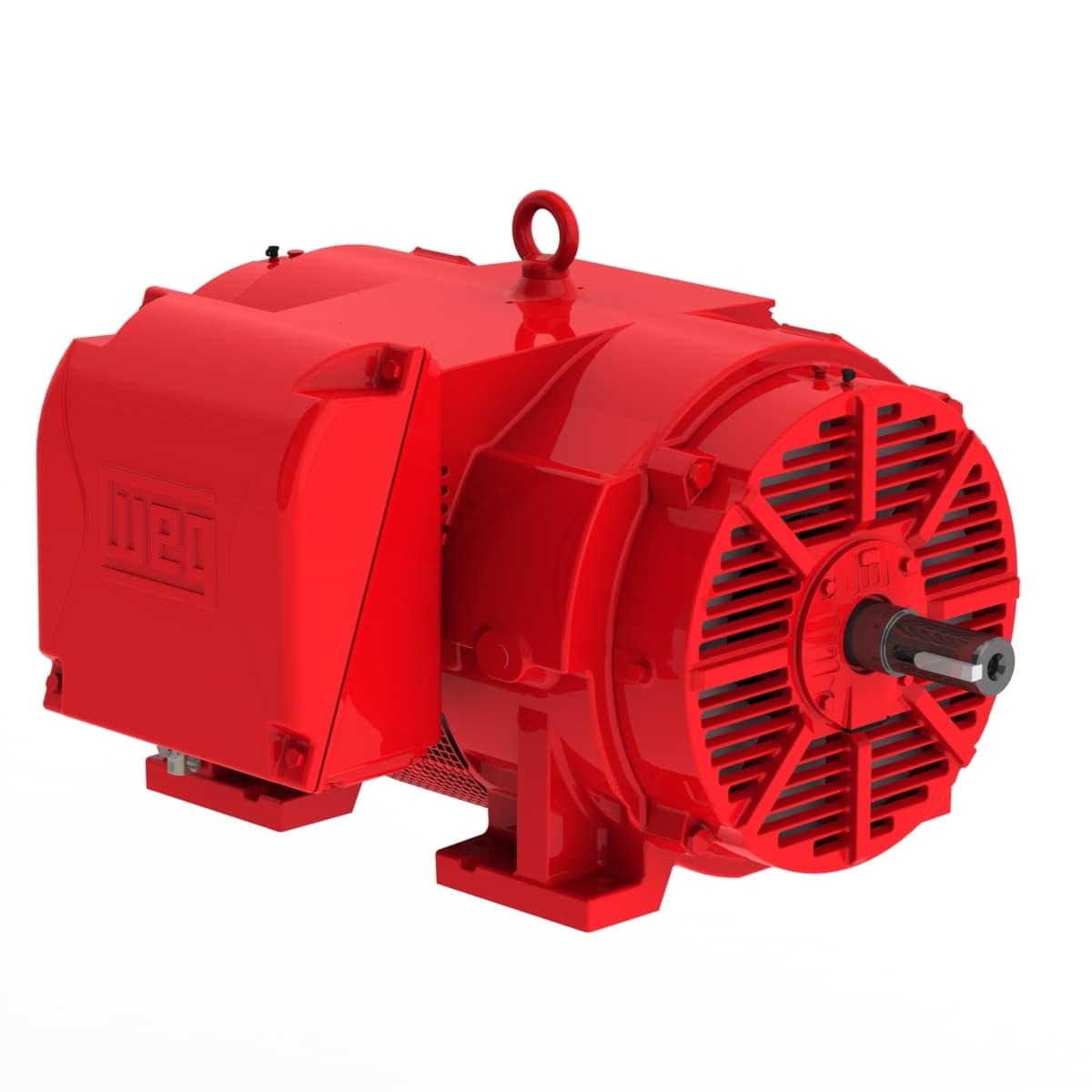

W40 High Efficiency 100 HP 4P 404/5TS 3Ph 380-400-415 V 50 Hz IC01 - ODP - Foot-mounted
Check out the 10015OP3OFP405TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1480 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeWithout
- Output 100 HP (75 kW)
- Frame 404/5TS
- Rated torque 355 ft.lb
- Degree of Protection IP23
- Rated speed 1480 rpm
- Locked rotor time 0s (cold) 0s (hot)
- Duty Cycle Cont.(S1)
- Synchronous speed 1500 rpm
- LRC 5.9x(Code F)
- Temperature rise 70 K
- Approx. weight³ 1036 lb
- Slip 1.33 %
- Design B
- Starting Method Direct On Line
- Voltage 380-400-415 V
- Rated current 142 A
- Breakdown torque 200 %
- Number of poles 4
- Number of Poles 4
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated voltage 380 V
- Service factor 1.15
- Enclosure IC01 - ODP
- Output rating 100 HP
- L. R. Amperes 838 A
- Insulation Class H
- Rotation¹ Both (CW and CCW)
- Frequency 50 Hz
- No load current 41.0 A
- Ambient temperature -20°C to +50°C
- Standard NEMA MG-1
- Moment of inertia (J) 25.6 sq.ft.lb
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10015OP3OFP405TS-W40 Specs
