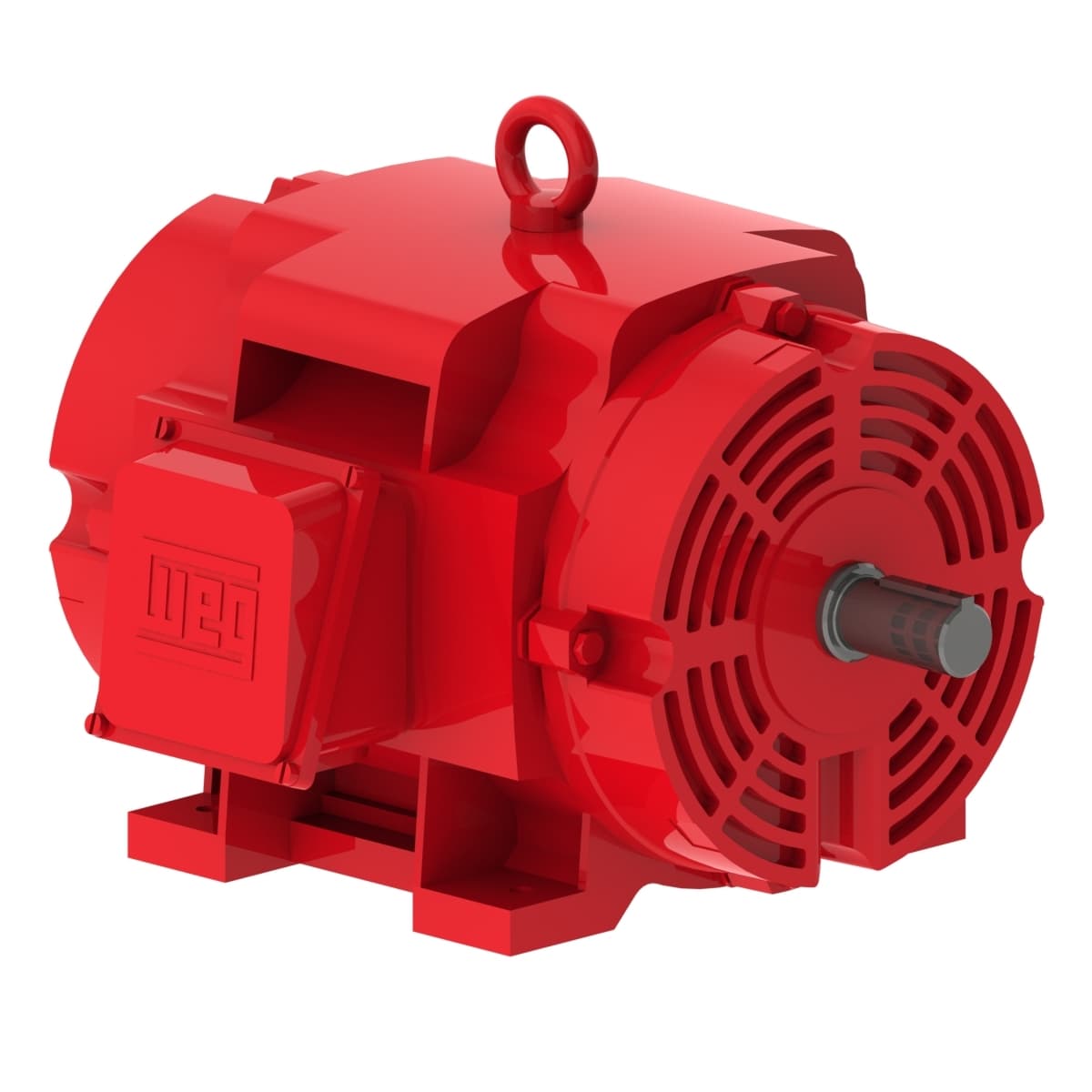

10018OP3HFP404TS WEG AC Motors
Part#:10018OP3HFP404TS
Manufacturer:WEG
Alt. Part#:7891327473690
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 100 HP 4P 404/5TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10018OP3HFP404TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- No load current 28.8 A
- Insulation Class F
- Noise level² 69.0 dB(A)
- Output 100 HP (75 kW)
- Rated torque 296 ft.lb
- Degree of Protection IP23
- Standard NEMA MG-1
- Rated speed 1775 rpm
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Number of Poles 4
- Breakdown torque 250 %
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- Rated voltage 575 V
- Frame 404/5TS
- Service factor 1.15
- Mounting F-1
- Frequency 60 Hz
- Temperature rise 105 K
- Voltage 575 V
- L. R. Amperes 566 A
- LRC 6.0x(Code G)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 877 lb
- Slip 1.39 %
- Moment of inertia (J) 18.3 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 100 HP
- Locked rotor time 18s (cold) 10s (hot)
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated current 94.4 A
- Locked rotor torque 220 %
- Starting Method Direct On Line
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10018OP3HFP404TS Specs
