10018OP3EFP404JPV WEG AC Motors
Part#:10018OP3EFP404JPV
Manufacturer:WEG
Alt. Part#:7909322400037
Product Lifecycle:Active
Get a quick Quote!

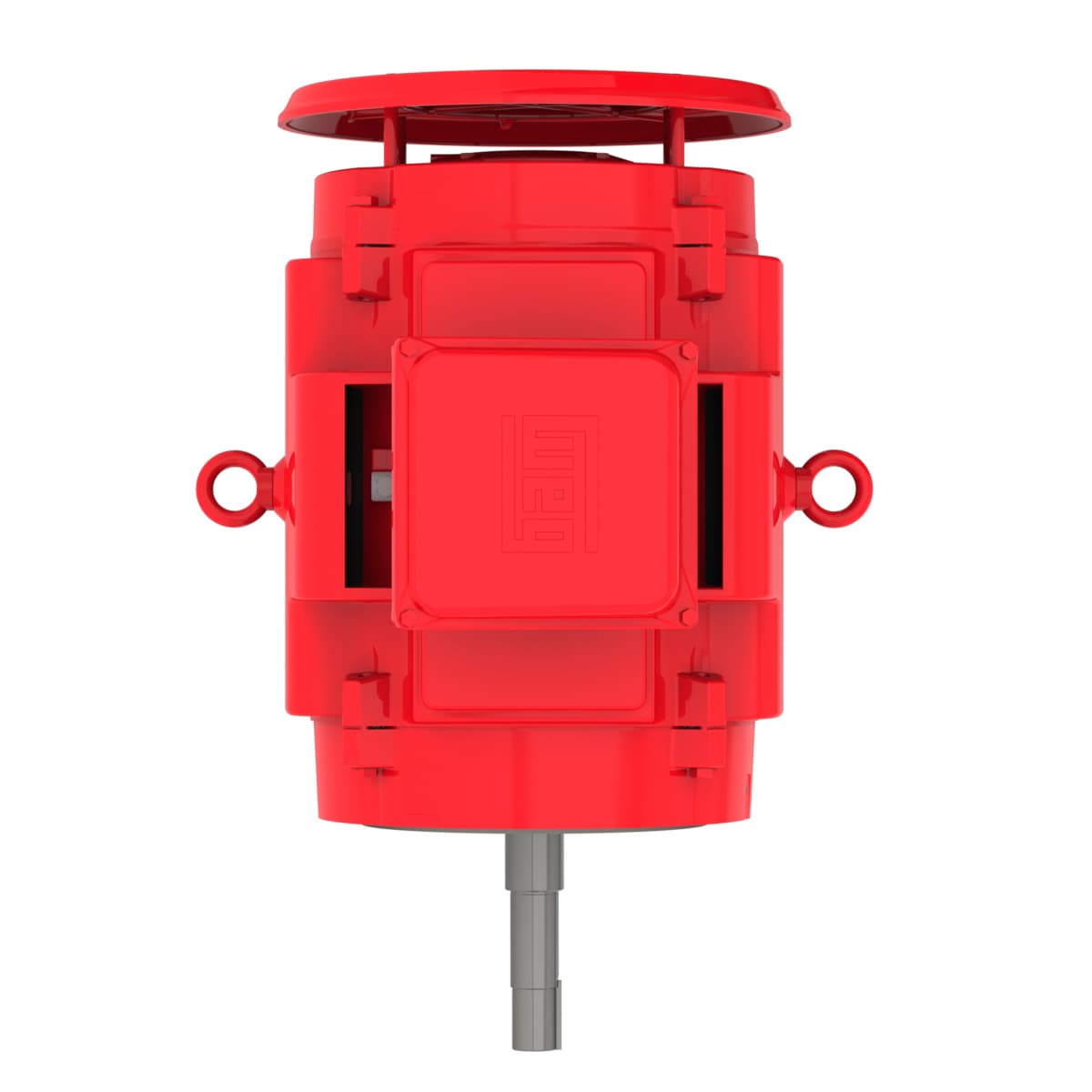

Close Coupled Pump High Efficiency 100 HP 4P 404/5JP 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 10018OP3EFP404JPV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- L. R. Amperes 1416/708 A
- Locked rotor torque 220 %
- Degree of Protection IP23
- Output rating 100 HP
- Number of Poles 4
- Design B
- Altitude 1000 m.a.s.l.
- Flange C
- Rated voltage 230/460 V
- Locked rotor time 18s (cold) 10s (hot)
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Temperature rise 105 K
- Approx. weight³ 870 lb
- LRC 6.0x(Code G)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Output 100 HP (75 kW)
- Rated current 236/118 A
- Rated torque 296 ft.lb
- Insulation Class F
- Starting Method Direct On Line
- Voltage 230/460 V
- Moment of inertia (J) 18.3 sq.ft.lb
- Noise level² 69.0 dB(A)
- Frame 404/5JP
- Rated speed 1775 rpm
- Slip 1.39 %
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- No load current 72.0/36.0 A
- Service factor 1.15
- Enclosure IC01 - ODP
- Frequency 60 Hz
- Breakdown torque 250 %
- Mounting W-6
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10018OP3EFP404JPV Specs
