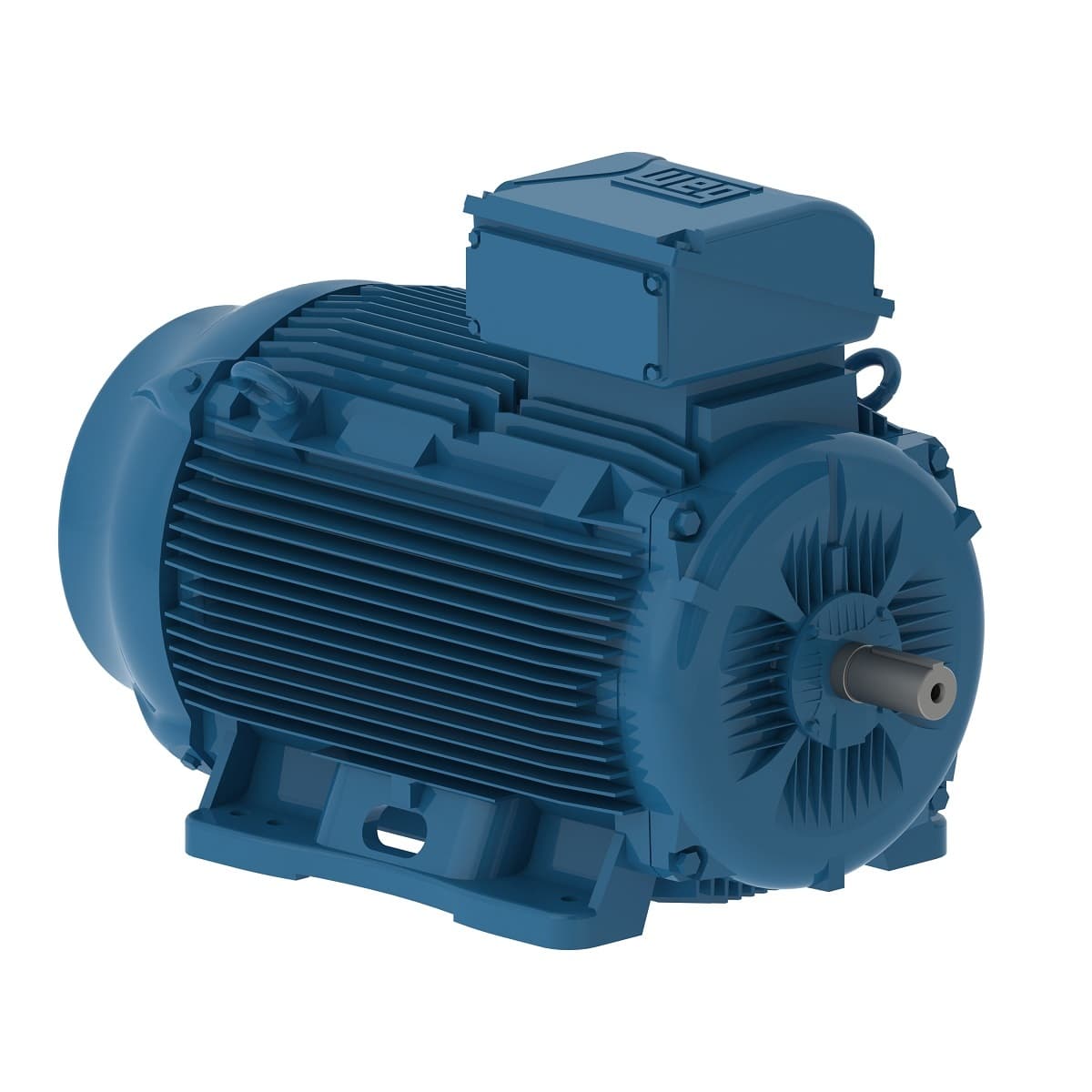

10018ET3G405TF3-W22 WEG AC Motors
Part#:10018ET3G405TF3-W22
Manufacturer:WEG
Alt. Part#:7894171931644
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 100 HP 4P 404/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10018ET3G405TF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 1.11 %
- Output 100 HP (75 kW)
- Service factor 1.25
- Output rating 100 HP
- Number of Poles 4
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 825 A
- Locked rotor time 23s (cold) 13s (hot)
- Standard NEMA MG-1
- Frequency 60 Hz
- Breakdown torque 260 %
- LRC 7.3x(Code H)
- Approx. weight³ 1166 lb
- Voltage 460 V
- Rated current 113 A
- Starting Method Direct On Line
- No load current 38.0 A
- Flange Without
- Rated voltage 460 V
- Moment of inertia (J) 29.9 sq.ft.lb
- Number of poles 4
- Rated torque 295 ft.lb
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- Terminal box¹ Top
- Frame 404/5T
- Insulation Class F
- Locked rotor torque 240 %
- Noise level² 68.0 dB(A)
- Design B
- Altitude 1000 m.a.s.l.
- Mounting F-3
- Synchronous speed 1800 rpm
- Rated speed 1780 rpm
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10018ET3G405TF3-W22 Specs
1-year warranty
