06030EP3OFP364TS-W22 WEG AC Motors
Part#:06030EP3OFP364TS-W22
Manufacturer:WEG
Alt. Part#:7909018810638
Product Lifecycle:Active
Get a quick Quote!

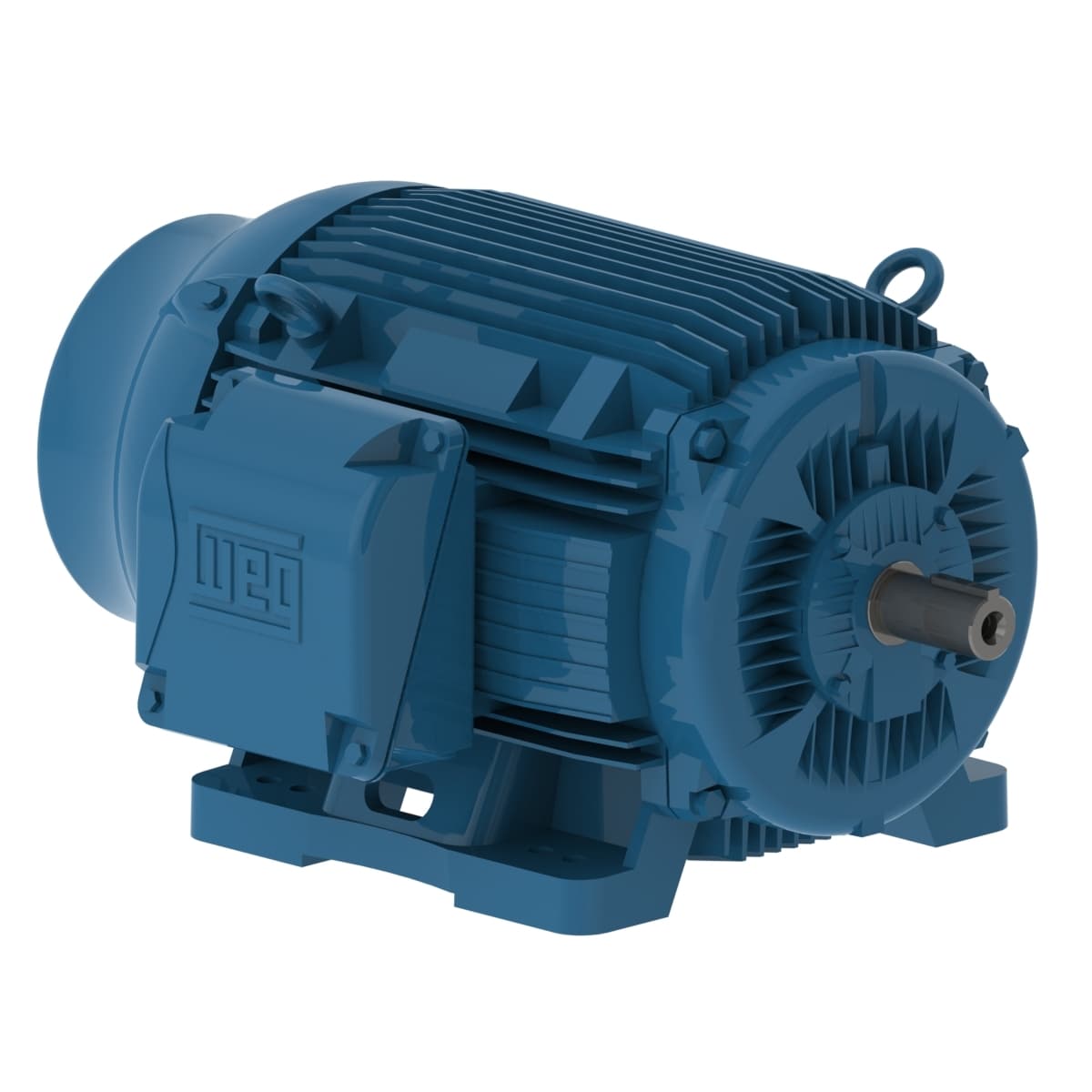

W22 High Efficiency 60 HP 2P 364/5TS 3Ph 380-400-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 06030EP3OFP364TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed2950 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated current 80.1 A
- Locked rotor torque 170 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- L. R. Amperes 473 A
- Rated torque 107 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frame 364/5TS
- Design B
- Altitude 1000 m.a.s.l.
- Voltage 380-400-415 V
- Frequency 50 Hz
- Moment of inertia (J) 0.0287 sq.ft.lb
- Mounting F-1
- Output rating 60 HP
- Output 60 HP (45 kW)
- Locked rotor time 28s (cold) 16s (hot)
- Starting Method Direct On Line
- Synchronous speed 3000 rpm
- Slip 1.67 %
- LRC 5.9x(Code F)
- Degree of Protection IP55
- Flange Without
- Rated speed 2950 rpm
- Insulation Class F
- Approx. weight³ 807 lb
- Number of Poles 2
- Service factor 1.15
- Noise level² 78.0 dB(A)
- Rated voltage 380 V
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- No load current 21.5 A
- Breakdown torque 250 %
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
