06036OT3E326JM WEG AC Motors
Part#:06036OT3E326JM
Manufacturer:WEG
Alt. Part#:7890355861813
Product Lifecycle:Active
Get a quick Quote!

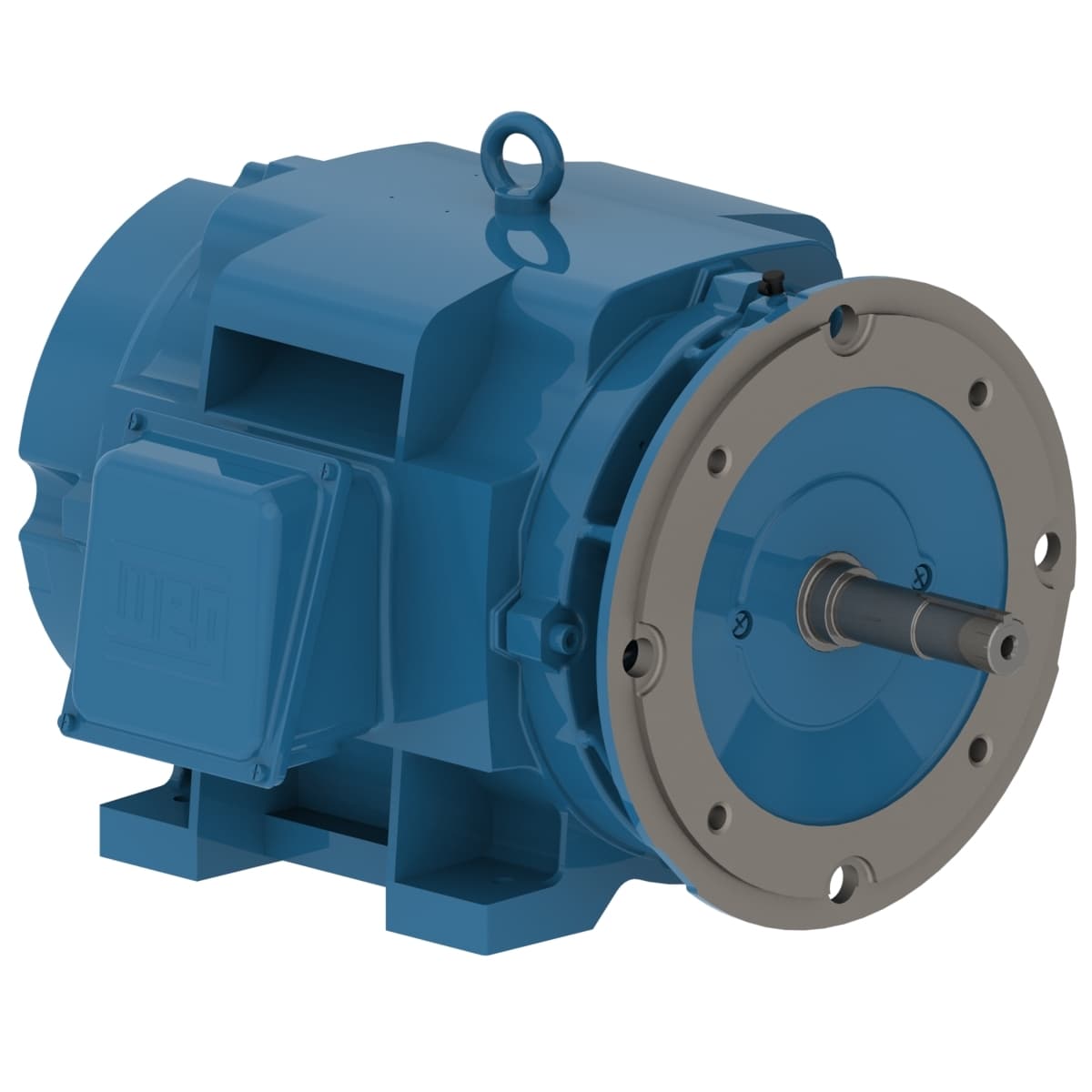

Close Coupled Pump NEMA Premium Efficiency 60 HP 2P 326JM 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 06036OT3E326JM WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Number of Poles 2
- Breakdown torque 229 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frequency 60 Hz
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Frame 326JM
- Insulation Class F
- Mounting F-1
- Output rating 60 HP
- Output 60 HP (45 kW)
- LRC 6.0x(Code G)
- Service factor 1.15
- Approx. weight³ 531 lb
- Rated speed 3560 rpm
- Locked rotor torque 220 %
- Degree of Protection IP23
- Flange C
- No load current 43.0/21.5 A
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Locked rotor time 43s (cold) 24s (hot)
- Temperature rise 80 K
- Voltage 230/460 V
- L. R. Amperes 852/426 A
- Duty Cycle Cont.(S1)
- Noise level² 75.0 dB(A)
- Rated current 142/71.0 A
- Design B
- Enclosure IC01 - ODP
- Slip 1.11 %
- Rated torque 88.5 ft.lb
- Moment of inertia (J) 4.36 sq.ft.lb
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
