06036OP3VFP326JPV WEG AC Motors
Part#:06036OP3VFP326JPV
Manufacturer:WEG
Alt. Part#:7909322400464
Product Lifecycle:Active
Get a quick Quote!

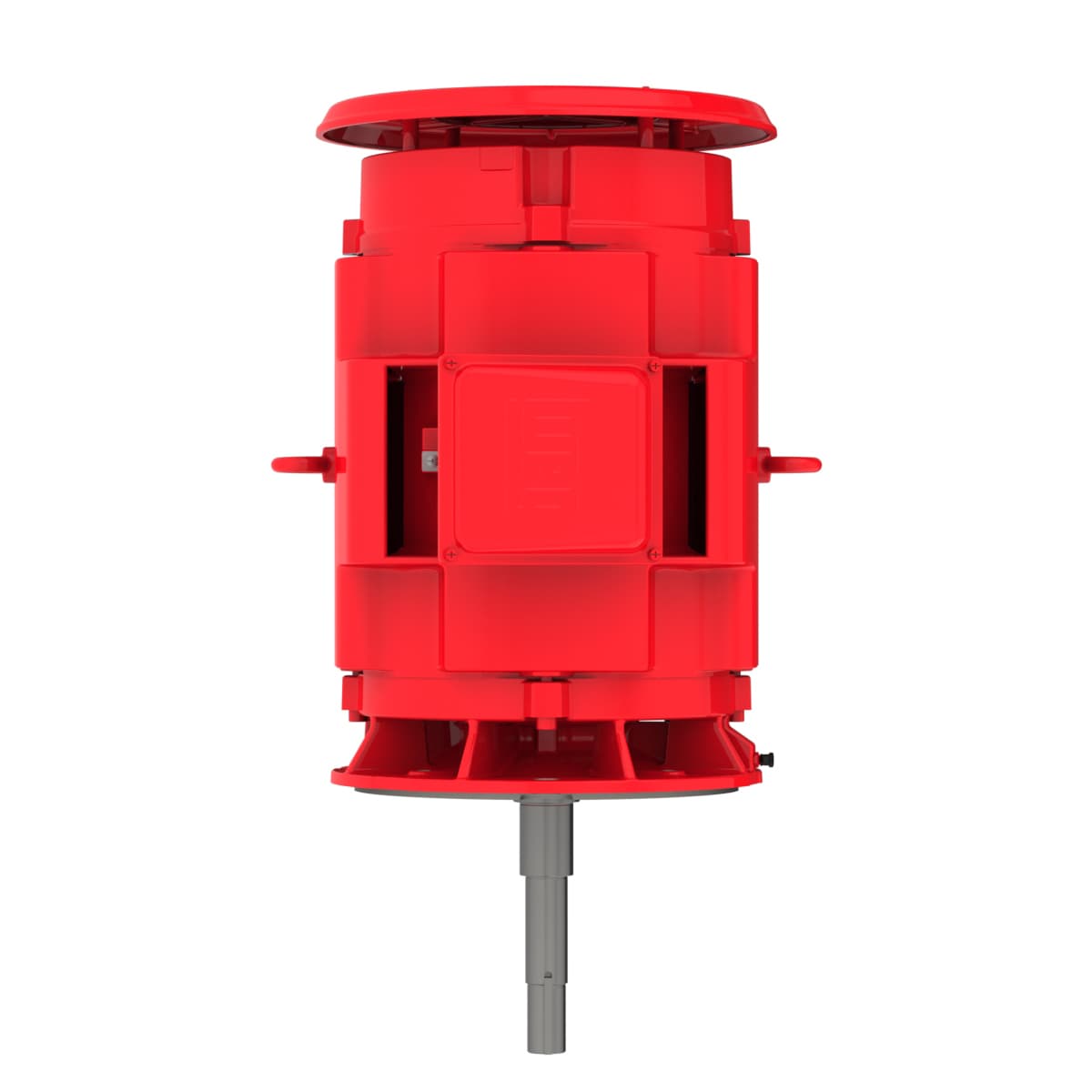

Close Coupled Pump High Efficiency 60 HP 2P 326JP 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 06036OP3VFP326JPV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- L. R. Amperes 974/487 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated current 162/81.2 A
- Moment of inertia (J) 3.94 sq.ft.lb
- Rated torque 88.6 ft.lb
- Noise level² 75.0 dB(A)
- Rated speed 3555 rpm
- No load current 46.0/23.0 A
- Insulation Class F
- Enclosure IC01 - ODP
- LRC 6.0x(Code G)
- Breakdown torque 210 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frame 326JP
- Design B
- Approx. weight³ 516 lb
- Flange C
- Number of Poles 2
- Locked rotor time 30s (cold) 17s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated voltage 200/400 V
- Service factor 1.15
- Mounting W-6
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Output 60 HP (45 kW)
- Locked rotor torque 220 %
- Degree of Protection IP23
- Output rating 60 HP
- Slip 1.25 %
- Temperature rise 80 K
- Voltage 200/400 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06036OP3VFP326JPV Specs
