06036OT3H326JM WEG AC Motors
Part#:06036OT3H326JM
Manufacturer:WEG
Alt. Part#:7909158156146
Product Lifecycle:Active
Get a quick Quote!

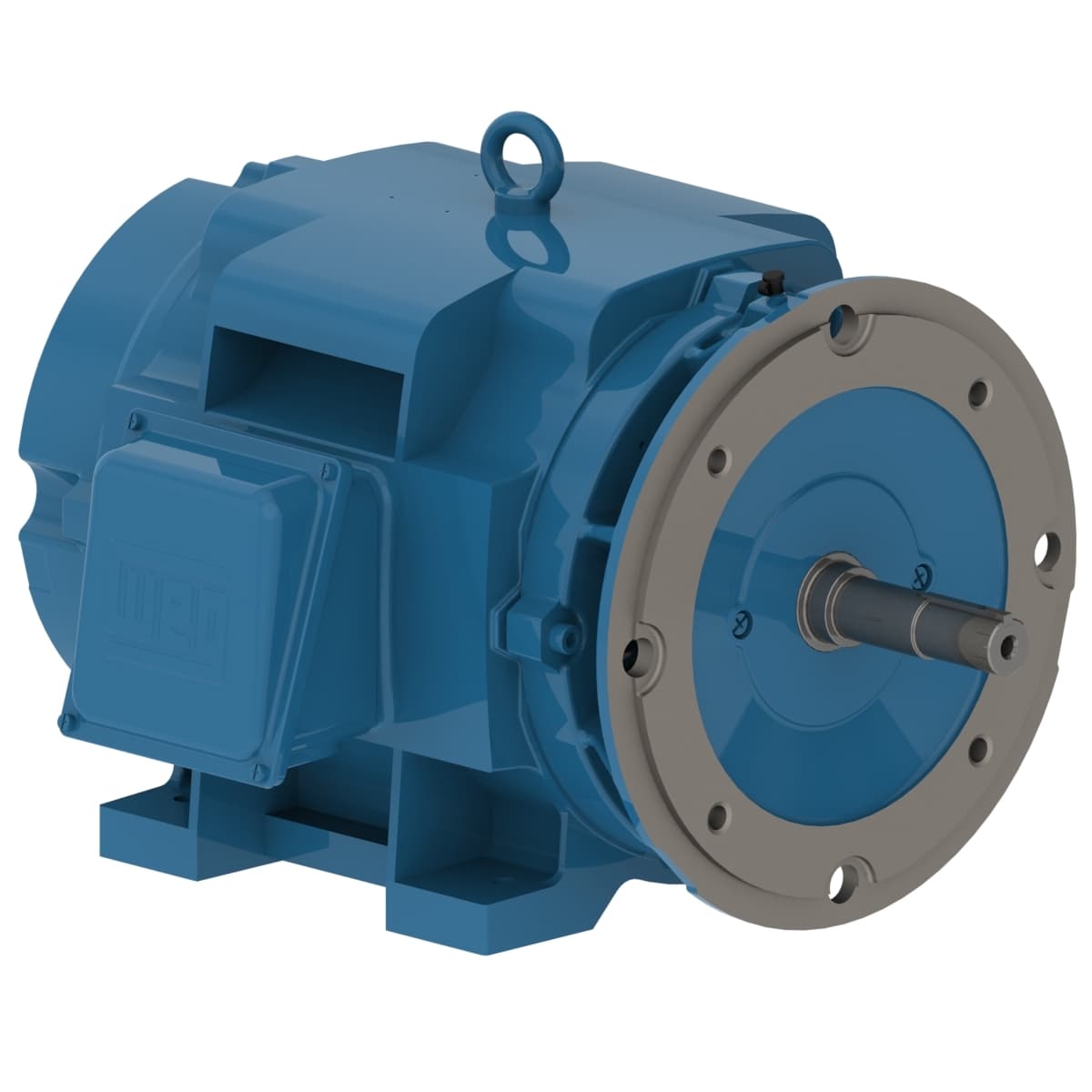

Close Coupled Pump NEMA Premium Efficiency 60 HP 2P 326JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 06036OT3H326JM WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frame 326JM
- Insulation Class F
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Rated torque 88.5 ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Slip 1.11 %
- Breakdown torque 229 %
- Noise level² 75.0 dB(A)
- Output 60 HP (45 kW)
- Design B
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- L. R. Amperes 341 A
- Locked rotor torque 220 %
- Temperature rise 80 K
- Approx. weight³ 527 lb
- Output rating 60 HP
- LRC 6.0x(Code G)
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Rated voltage 575 V
- Locked rotor time 43s (cold) 24s (hot)
- Enclosure IC01 - ODP
- Number of poles 2
- Number of Poles 2
- Moment of inertia (J) 4.36 sq.ft.lb
- Mounting F-1
- Rated current 56.8 A
- No load current 17.2 A
- Service factor 1.15
- Flange C
- Rated speed 3560 rpm
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06036OT3H326JM Specs
