06018OT3G364JM WEG AC Motors
Part#:06018OT3G364JM
Manufacturer:WEG
Alt. Part#:7890355871201
Product Lifecycle:Active
Get a quick Quote!

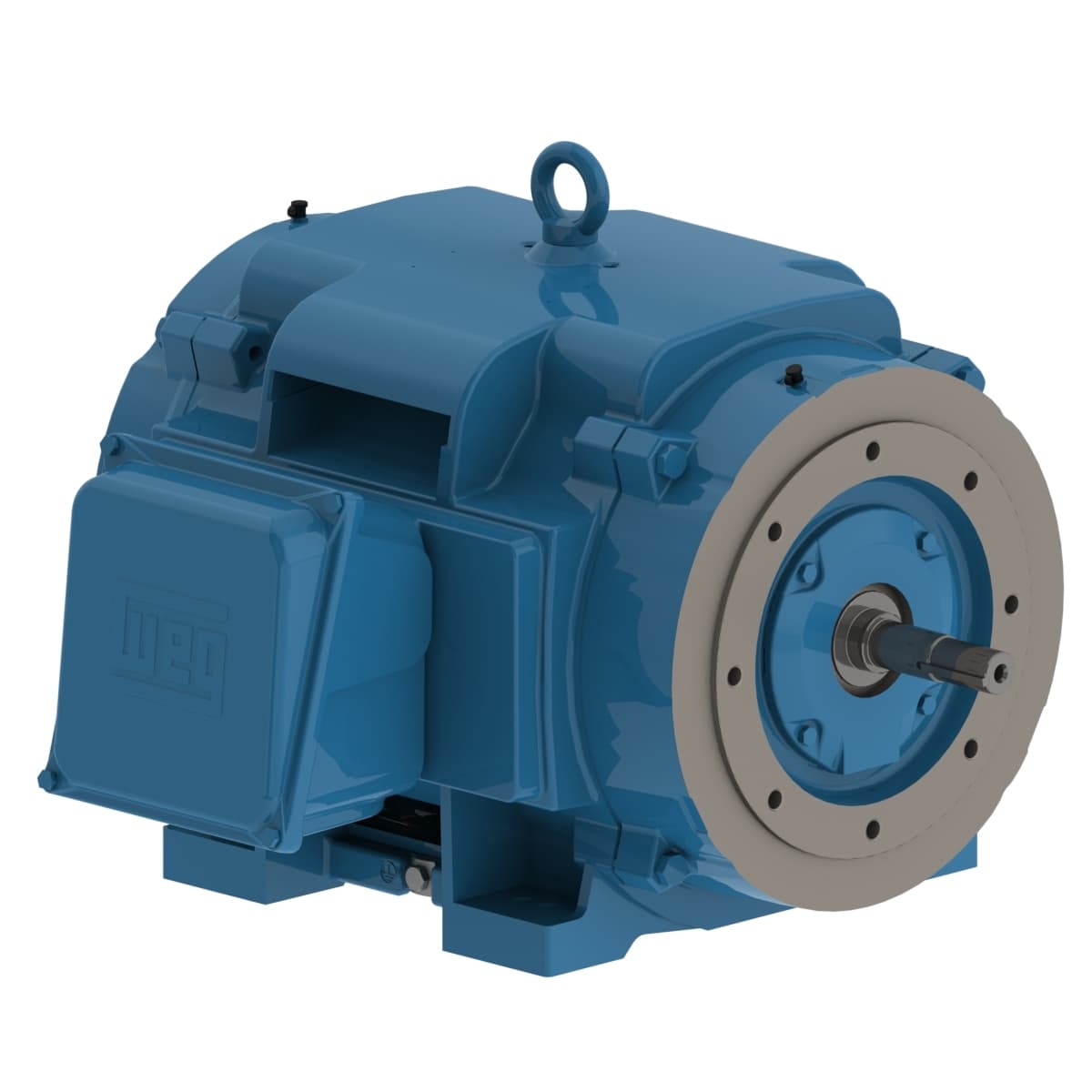

Close Coupled Pump NEMA Premium Efficiency 60 HP 4P 364/5JM 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 06018OT3G364JM WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeC
- LRC 6.7x(Code G)
- Noise level² 68.0 dB(A)
- Rated voltage 460 V
- Moment of inertia (J) 15.6 sq.ft.lb
- Temperature rise 80 K
- Standard NEMA MG-1
- Output 60 HP (45 kW)
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated current 69.9 A
- No load current 22.0 A
- Service factor 1.15
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- Number of Poles 4
- Slip 1.11 %
- Duty Cycle Cont.(S1)
- Mounting F-1
- Flange C
- Frequency 60 Hz
- Insulation Class F
- Output rating 60 HP
- Frame 364/5JM
- Locked rotor time 27s (cold) 15s (hot)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 799 lb
- Design B
- Starting Method Direct On Line
- Number of poles 4
- L. R. Amperes 468 A
- Breakdown torque 250 %
- Degree of Protection IP23
- Rated speed 1780 rpm
- Rated torque 177 ft.lb
- Rotation¹ Both (CW and CCW)
- Voltage 460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06018OT3G364JM Specs
1-year warranty
