06018ST3QAP364T-W22 WEG AC Motors
Part#:06018ST3QAP364T-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

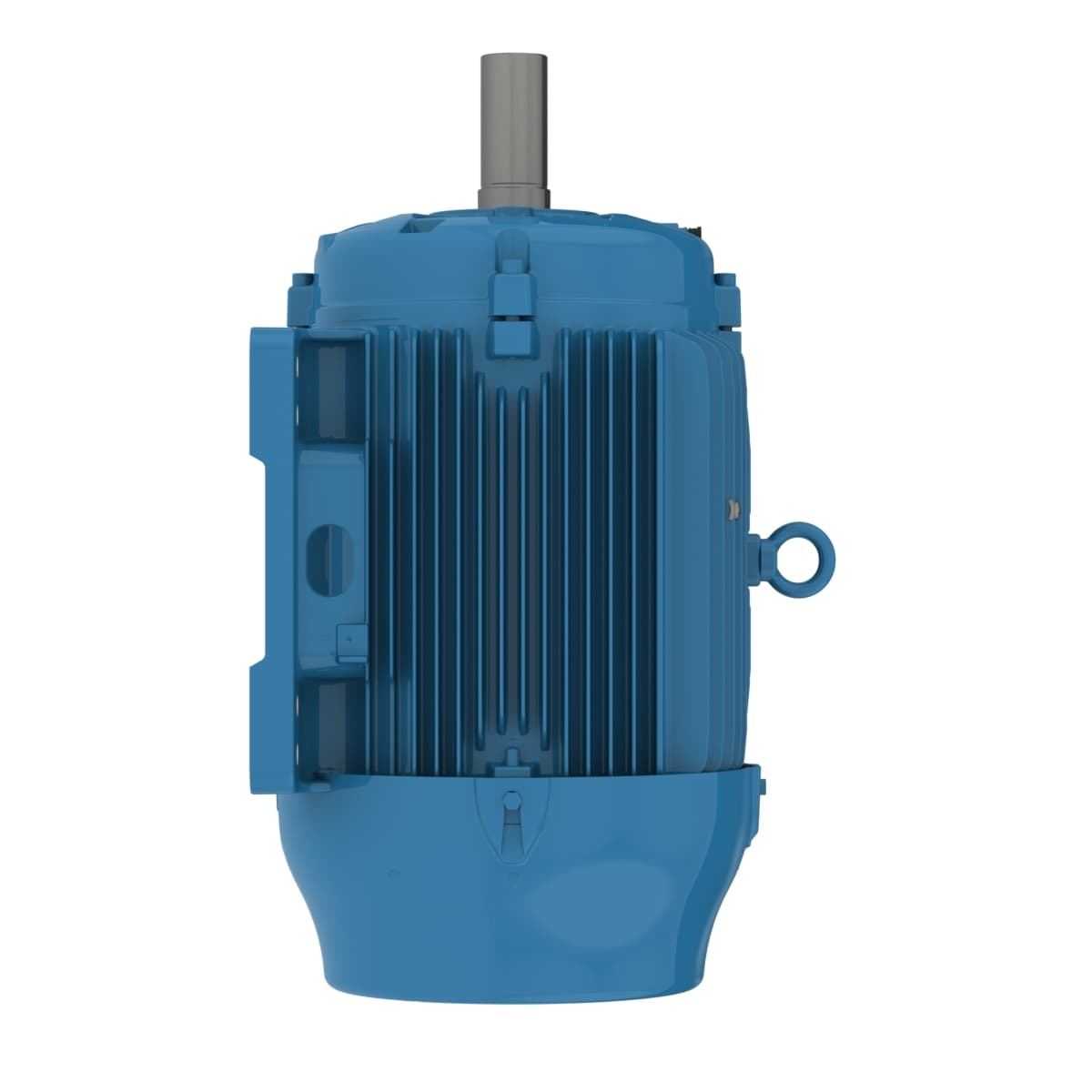

W22 IEEE 841 NEMA Premium Efficiency 60 HP 4P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 06018ST3QAP364T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1780 rpm
- Starting Method Direct On Line
- Number of Poles 4
- No load current 28.0 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- LRC 6.2x(Code G)
- Noise level² 67.0 dB(A)
- Flange Without
- Frame 364/5T
- Moment of inertia (J) 22.4 sq.ft.lb
- Degree of Protection IP56
- Output rating 60 HP
- L. R. Amperes 444 A
- Design B
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Output 60 HP (45 kW)
- Temperature rise 80 K
- Approx. weight³ 873 lb
- Frequency 60 Hz
- Rated torque 177 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Insulation Class F
- Slip 1.11 %
- Locked rotor time 27s (cold) 15s (hot)
- Voltage 460 V
- Rated current 71.6 A
- Locked rotor torque 220 %
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Rated voltage 460 V
- Service factor 1.15
- Mounting W-8
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06018ST3QAP364T-W22 Specs
1-year warranty
