06018OP3VFP364TS-W40 WEG AC Motors
Part#:06018OP3VFP364TS-W40
Manufacturer:WEG
Alt. Part#:7909323925942
Product Lifecycle:Active
Get a quick Quote!

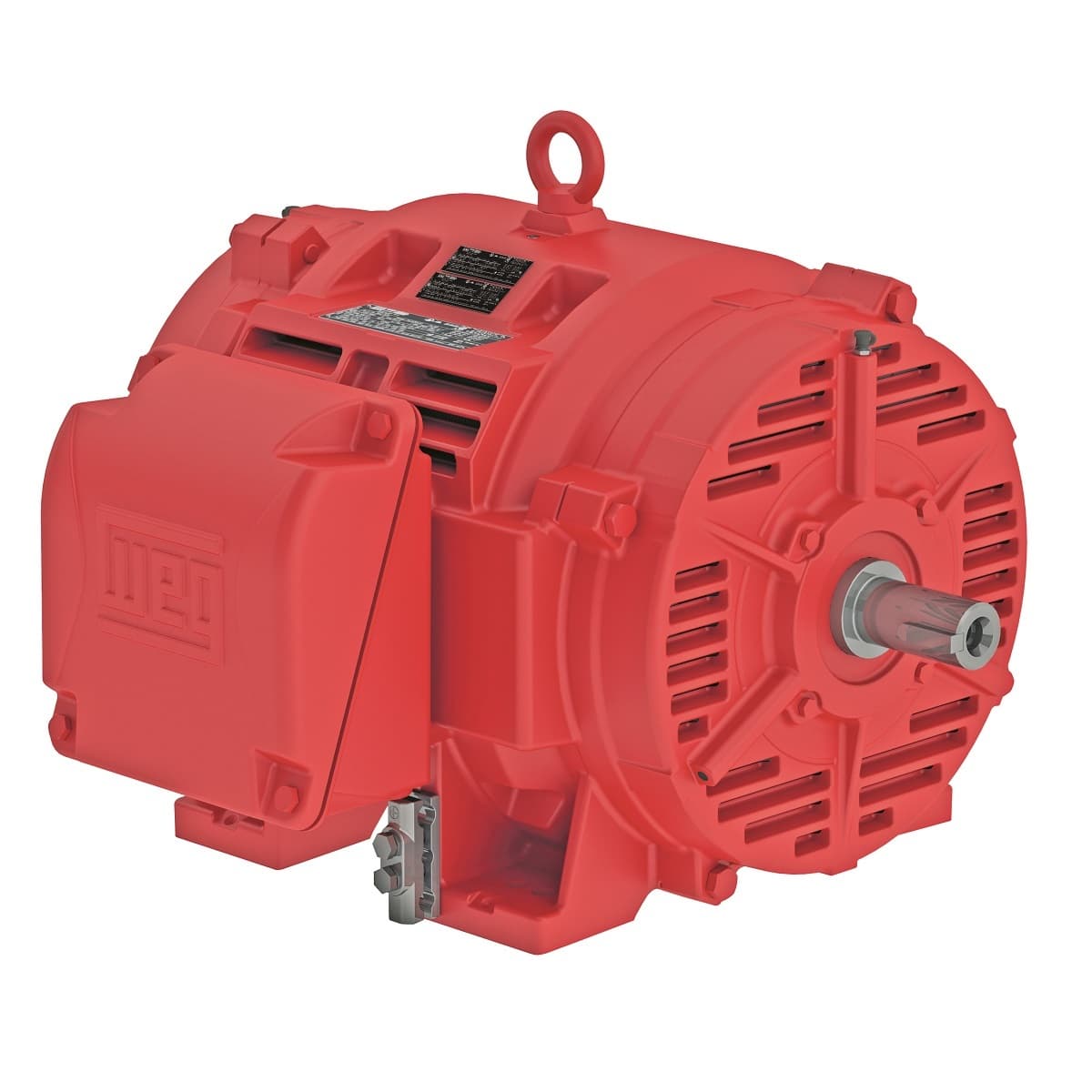

W40 High Efficiency 60 HP 4P 364/5TS 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 06018OP3VFP364TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1777 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeWithout
- Frame 364/5TS
- Number of Poles 4
- Slip 1.28 %
- Rated voltage 200/400 V
- Rated current 163/81.7 A
- L. R. Amperes 1000/498 A
- Rated speed 1777 rpm
- Output 60 HP (45 kW)
- Frequency 60 Hz
- No load current 52.9/26.5 A
- LRC 6.1x(Code G)
- Locked rotor torque 180 %
- Rated torque 177 ft.lb
- Locked rotor time 39s (cold) 22s (hot)
- Moment of inertia (J) 12.8 sq.ft.lb
- Insulation Class F
- Design B
- Service factor 1.15
- Temperature rise 80 K
- Breakdown torque 229 %
- Starting Method Direct On Line
- Enclosure IC01 - ODP
- Flange Without
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Voltage 200/400 V
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Mounting F-1
- Terminal box¹ Left position
- Approx. weight³ 693 lb
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- Ambient temperature -20°C to +40°C
- Output rating 60 HP
