06018ET3H364JP-W22 WEG AC Motors
Part#:06018ET3H364JP-W22
Manufacturer:WEG
Alt. Part#:7909158614042
Product Lifecycle:Active
Get a quick Quote!

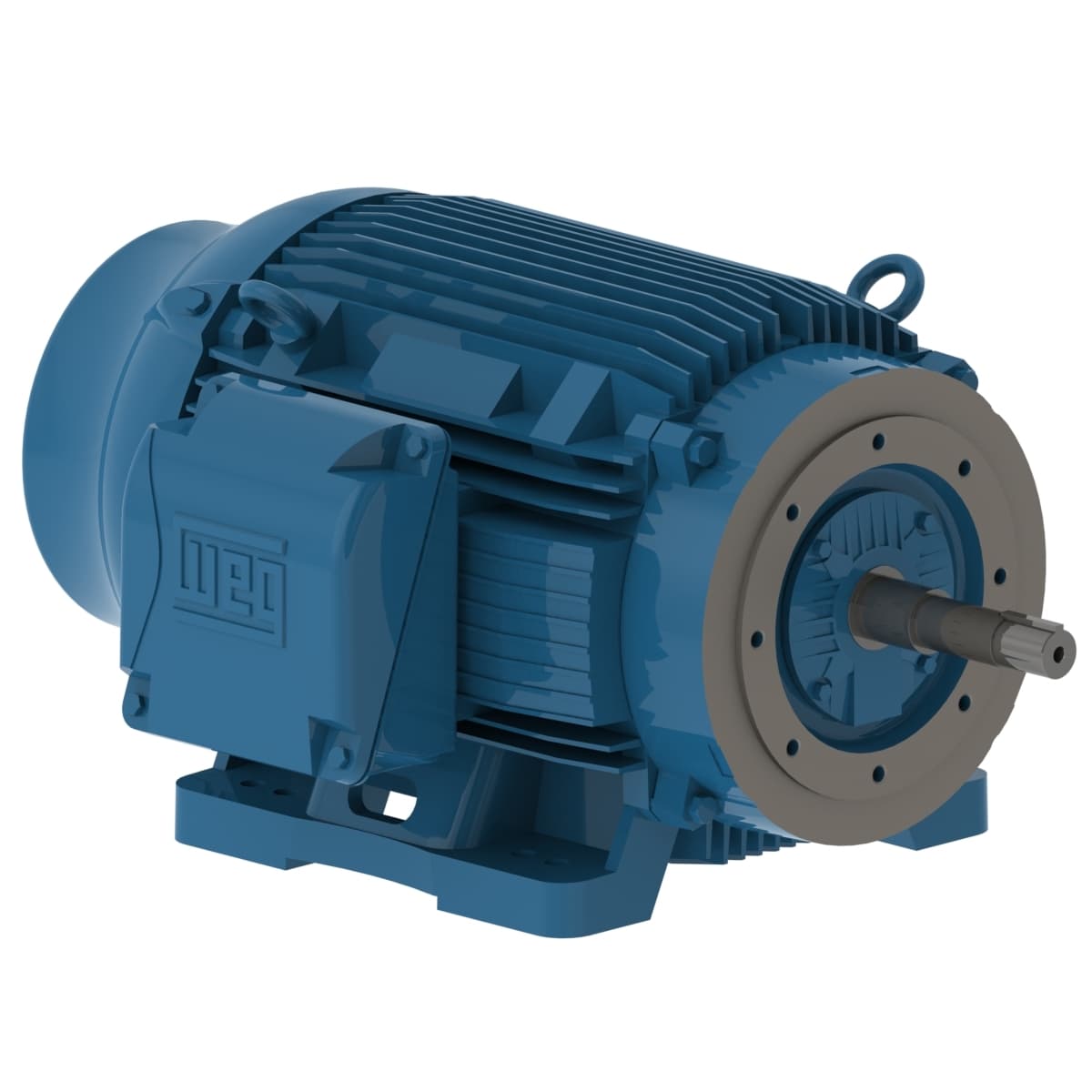

W22 Close Coupled Pump JP NEMA Premium Efficiency 60 HP 4P 364/5JP 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 06018ET3H364JP-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeC
- Slip 1.11 %
- Starting Method Direct On Line
- Flange C
- Output rating 60 HP
- L. R. Amperes 355 A
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Locked rotor time 27s (cold) 15s (hot)
- Number of Poles 4
- Locked rotor torque 220 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 879 lb
- Service factor 1.25
- Rated voltage 575 V
- Output 60 HP (45 kW)
- Design B
- Temperature rise 80 K
- Degree of Protection IP55
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Frame 364/5JP
- Rated current 57.3 A
- No load current 22.4 A
- Insulation Class F
- Standard NEMA MG-1
- Voltage 575 V
- Terminal box¹ Left position
- Rated speed 1780 rpm
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Frequency 60 Hz
- Moment of inertia (J) 22.4 sq.ft.lb
- Rated torque 177 ft.lb
- Noise level² 67.0 dB(A)
- LRC 6.2x(Code G)
- Mounting F-1
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06018ET3H364JP-W22 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
