06018ET3H364T-W22 WEG AC Motors
Part#:06018ET3H364T-W22
Manufacturer:WEG
Alt. Part#:7890355668405
Product Lifecycle:Active
Get a quick Quote!

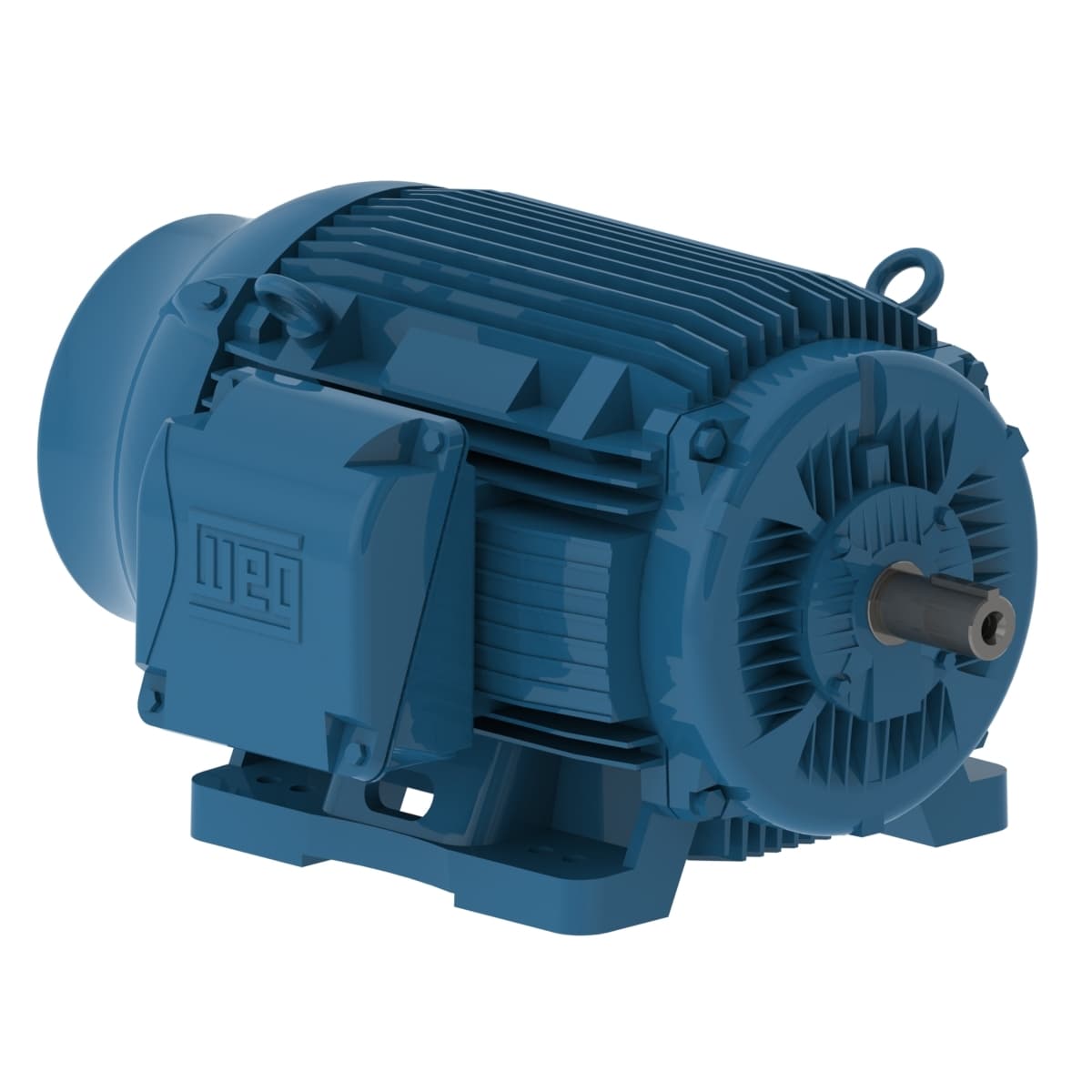

W22 NEMA Premium Efficiency 60 HP 4P 364/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 06018ET3H364T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- L. R. Amperes 355 A
- Moment of inertia (J) 22.4 sq.ft.lb
- Noise level² 67.0 dB(A)
- Rated current 57.3 A
- Output 60 HP (45 kW)
- Service factor 1.25
- Voltage 575 V
- Number of Poles 4
- No load current 22.4 A
- Starting Method Direct On Line
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 856 lb
- Synchronous speed 1800 rpm
- LRC 6.2x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Rated voltage 575 V
- Rated torque 177 ft.lb
- Mounting F-1
- Rated speed 1780 rpm
- Design B
- Degree of Protection IP55
- Output rating 60 HP
- Slip 1.11 %
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Frame 364/5T
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Frequency 60 Hz
- Breakdown torque 240 %
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
