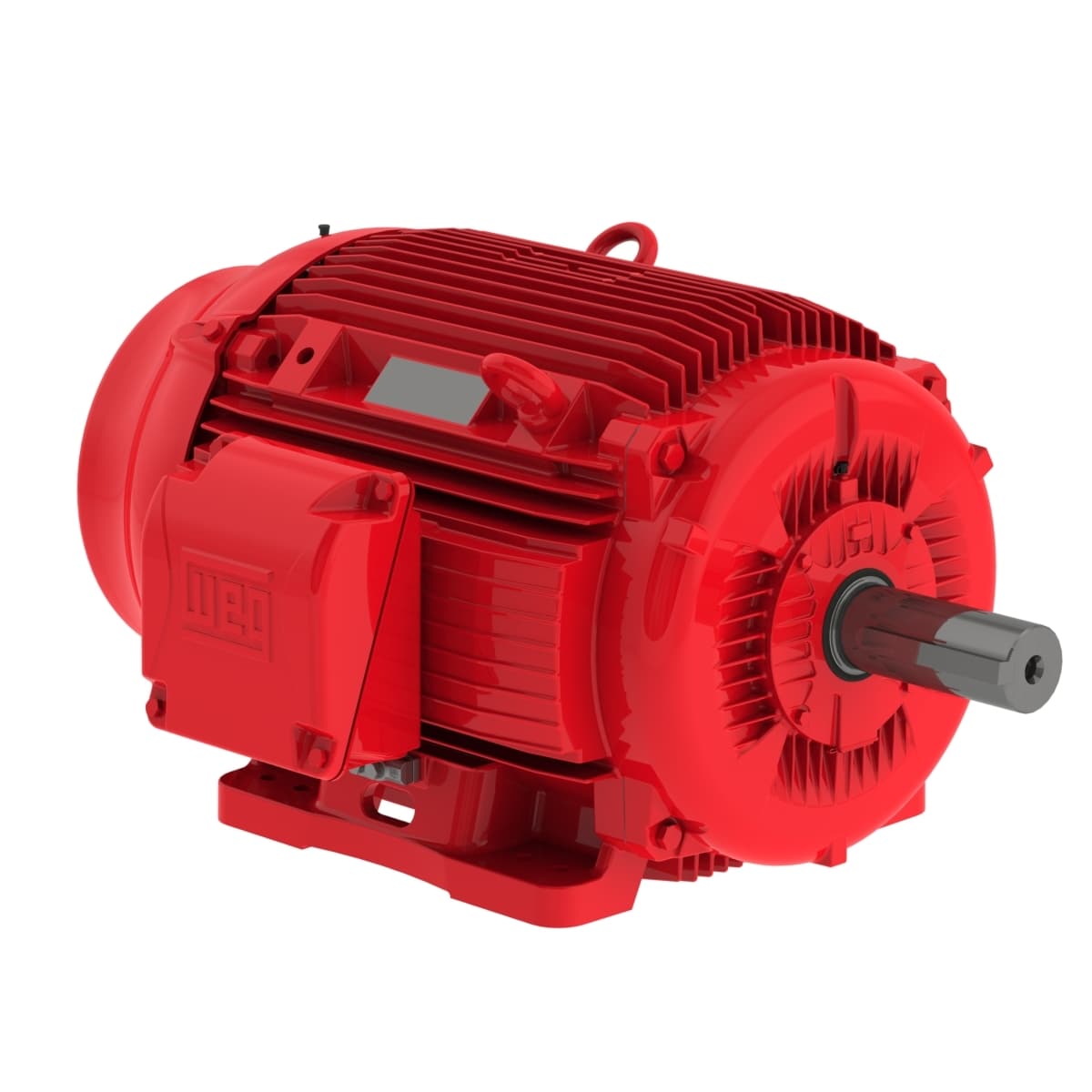

06015EP3OFP364TS-W22 WEG AC Motors
Part#:06015EP3OFP364TS-W22
Manufacturer:WEG
Alt. Part#:7909322730271
Product Lifecycle:Active
Get a quick Quote!
W22 High Efficiency 60 HP 4P 364/5TS 3Ph 380-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 06015EP3OFP364TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed1475 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeWithout
- Rated voltage 380 V
- Locked rotor time 36s (cold) 20s (hot)
- Starting Method Direct On Line
- Synchronous speed 1500 rpm
- Output 60 HP (45 kW)
- Moment of inertia (J) 22.4 sq.ft.lb
- Degree of Protection IP55
- Number of poles 4
- Rated speed 1475 rpm
- Design B
- Insulation Class F
- Standard NEMA MG-1
- Frequency 50 Hz
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Rated torque 214 ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated current 85.9 A
- No load current 24.6 A
- Service factor 1.15
- Approx. weight³ 869 lb
- Voltage 380-415 V
- Slip 1.67 %
- Breakdown torque 215 %
- Enclosure IC411 - TEFC
- L. R. Amperes 490 A
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- LRC 5.7x(Code F)
- Mounting F-1
- Output rating 60 HP
- Frame 364/5TS
- Locked rotor torque 175 %
- Altitude 1000 m.a.s.l.
- Noise level² 67.0 dB(A)
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06015EP3OFP364TS-W22 Specs
1-year warranty
