05018OT3G326TS-W40 WEG AC Motors
Part#:05018OT3G326TS-W40
Manufacturer:WEG
Alt. Part#:7909492253662
Product Lifecycle:Active
Get a quick Quote!

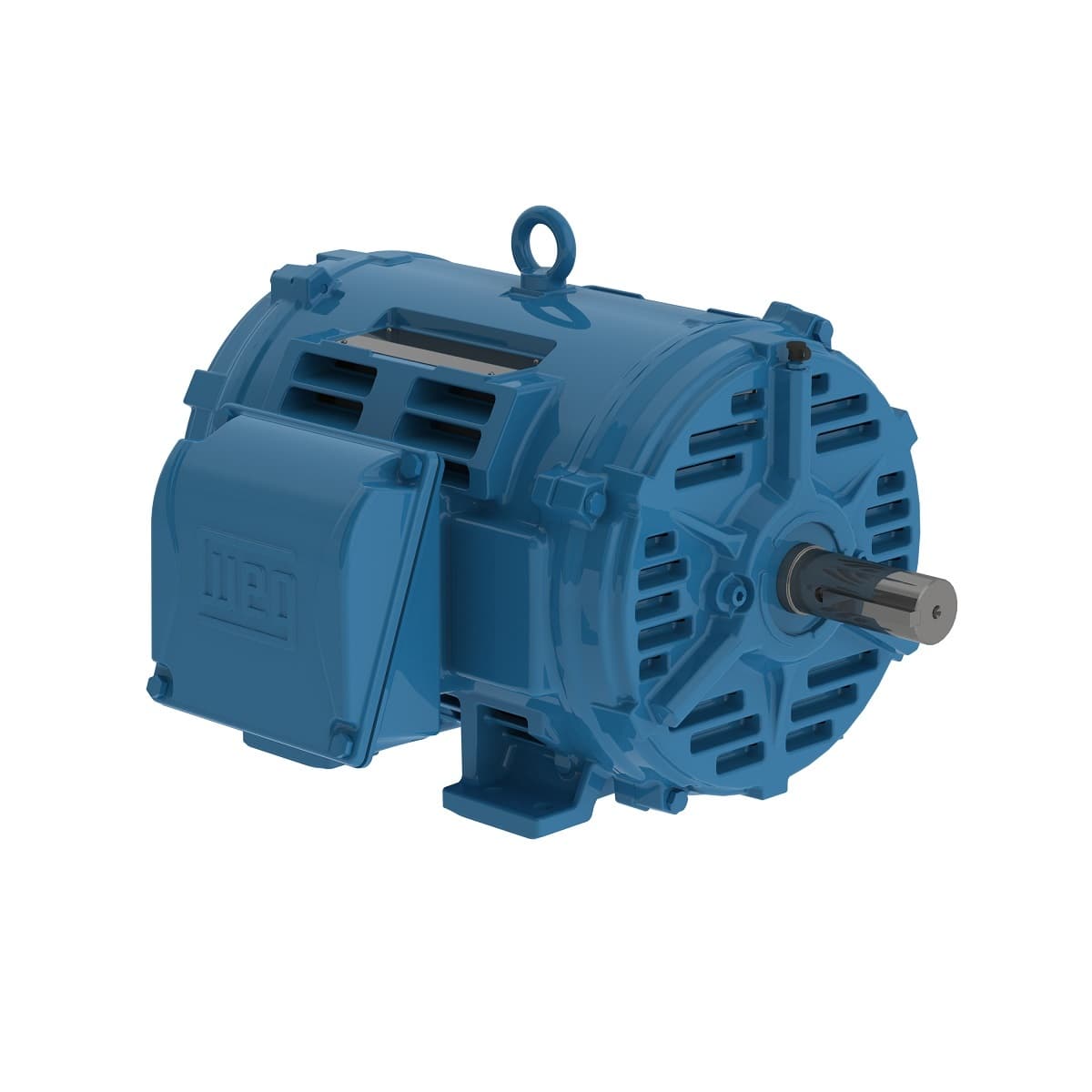

W40 NEMA Premium Efficiency 50 HP 4P 324/6TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 05018OT3G326TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Locked rotor torque 240 %
- Locked rotor time 19s (cold) 11s (hot)
- Mounting F-1
- L. R. Amperes 369 A
- Frame 324/6TS
- Rated torque 148 ft.lb
- Altitude 1000 m.a.s.l.
- Slip 1.39 %
- Starting Method Direct On Line
- Voltage 460 V
- Flange Without
- Output 50 HP (37 kW)
- Frequency 60 Hz
- Moment of inertia (J) 7.08 sq.ft.lb
- Duty Cycle Cont.(S1)
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- LRC 6.3x(Code G)
- Temperature rise 80 K
- Noise level² 66.0 dB(A)
- Rated speed 1775 rpm
- Design B
- Standard NEMA MG-1
- Output rating 50 HP
- No load current 23.2 A
- Insulation Class F
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Rated voltage 460 V
- Service factor 1.25
- Rated current 58.5 A
- Approx. weight³ 506 lb
- Number of Poles 4
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05018OT3G326TS-W40 Specs
1-year warranty
