05012OT3E365JP-W40 WEG AC Motors
Part#:05012OT3E365JP-W40
Manufacturer:WEG
Alt. Part#:7909323899311
Product Lifecycle:Active
Get a quick Quote!

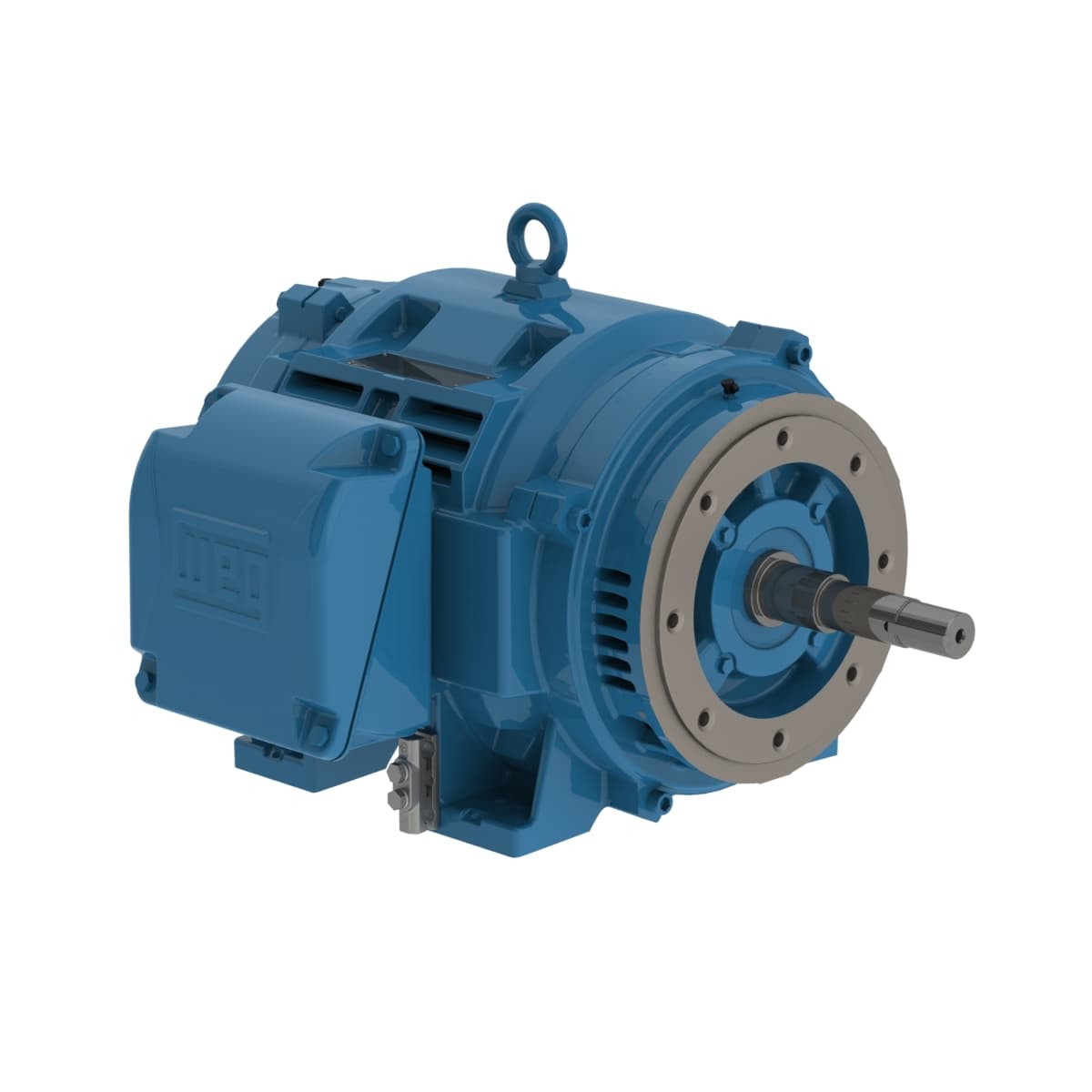

W40 JP Pump NEMA Premium Efficiency 50 HP 6P 364/5JP 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 05012OT3E365JP-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1183 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- L. R. Amperes 778/389 A
- Service factor 1.25
- Enclosure IC01 - ODP
- Rated current 116/58.1 A
- Locked rotor time 27s (cold) 15s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Rated speed 1183 rpm
- Output 50 HP (37 kW)
- LRC 6.7x(Code G)
- Rated torque 222 ft.lb
- Starting Method Direct On Line
- Approx. weight³ 820 lb
- Synchronous speed 1200 rpm
- Frame 364/5JP
- Locked rotor torque 200 %
- Temperature rise 80 K
- Degree of Protection IP23
- Terminal box¹ Left position
- Number of Poles 6
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Breakdown torque 220 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Flange C
- Slip 1.42 %
- Moment of inertia (J) 23.9 sq.ft.lb
- Noise level² 68.0 dB(A)
- Frequency 60 Hz
- Design B
- Mounting F-1
- Output rating 50 HP
- No load current 37.0/18.5 A
- Altitude 1000 m.a.s.l.
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05012OT3E365JP-W40 Specs
