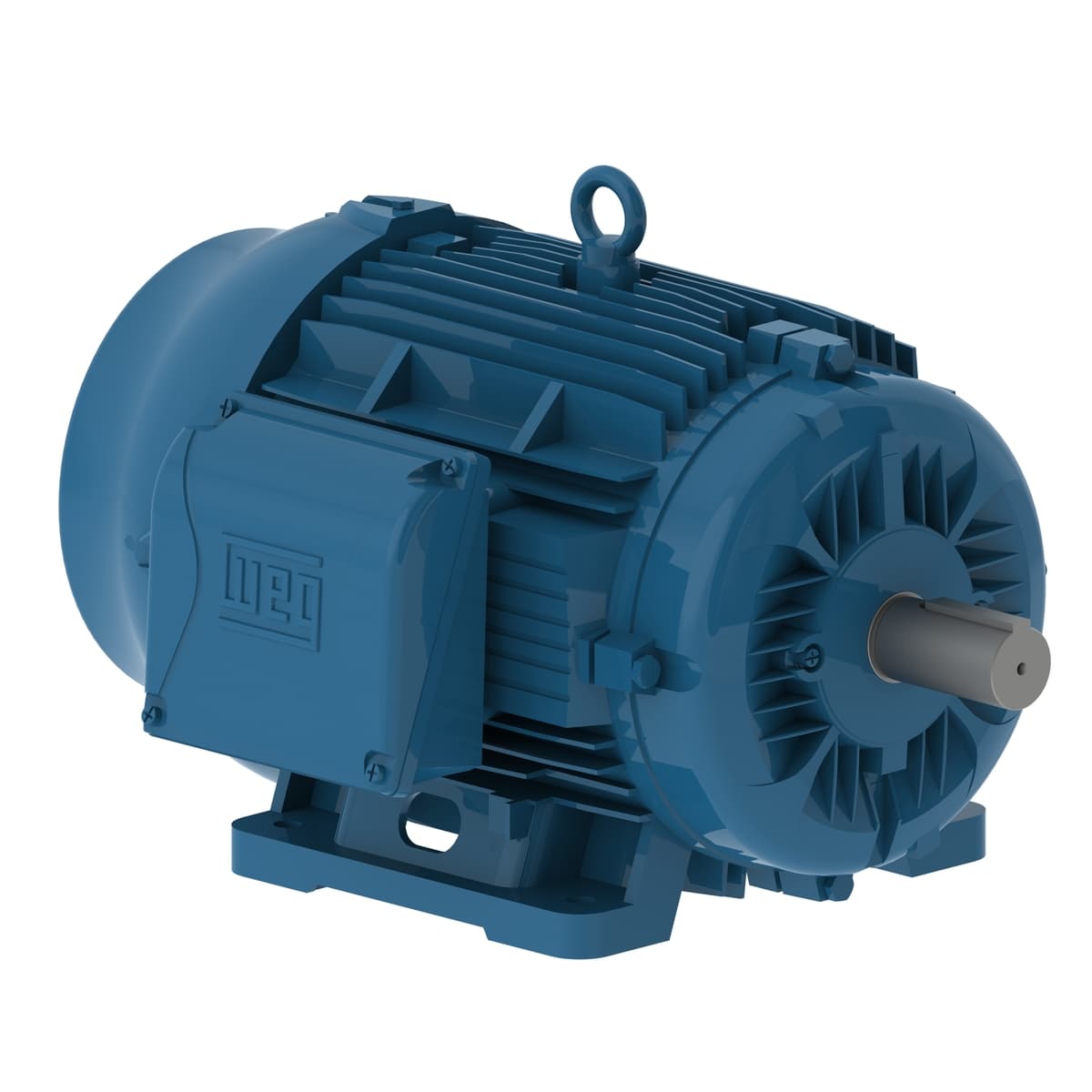

05018ET3V326T-W22G WEG AC Motors
Part#:05018ET3V326T-W22G
Manufacturer:WEG
Alt. Part#:7909158809462
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 50 HP 4P 324/6T 3Ph 200/400 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 05018ET3V326T-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeWithout
- No load current 54.0/27.0 A
- L. R. Amperes 844/422 A
- Altitude 1000 m.a.s.l.
- Rated current 136/68.1 A
- Rated torque 148 ft.lb
- Degree of Protection IP55
- Output rating 50 HP
- Frequency 60 Hz
- Moment of inertia (J) 9.16 sq.ft.lb
- Enclosure IC411 - TEFC
- Voltage 200/400 V
- Number of Poles 4
- Temperature rise 80 K
- Approx. weight³ 596 lb
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Terminal box¹ Left position
- Synchronous speed 1800 rpm
- Output 50 HP (37 kW)
- Breakdown torque 270 %
- Mounting F-1
- Frame 324/6T
- Service factor 1.25
- Noise level² 70.0 dB(A)
- Rated speed 1775 rpm
- Design B
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Rated voltage 200/400 V
- LRC 6.2x(Code G)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Slip 1.39 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Flange Without
