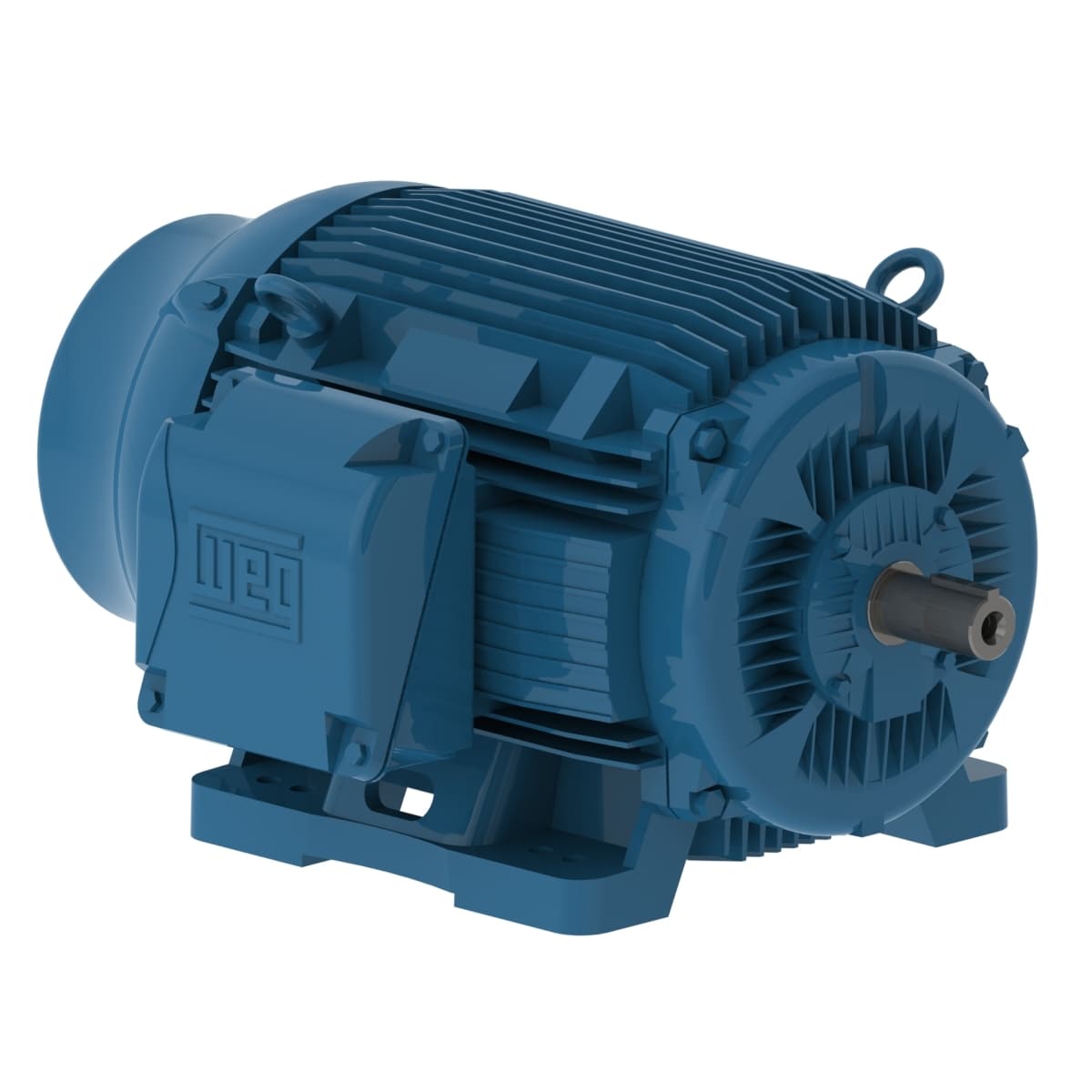

05012ET3E365T-W22G WEG AC Motors
Part#:05012ET3E365T-W22G
Manufacturer:WEG
Alt. Part#:7909158731619
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 50 HP 6P 364/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 05012ET3E365T-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1183 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated voltage 230/460 V
- Moment of inertia (J) 32.4 sq.ft.lb
- Temperature rise 80 K
- Approx. weight³ 889 lb
- Rated current 115/57.4 A
- Locked rotor time 32s (cold) 18s (hot)
- L. R. Amperes 735/367 A
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Synchronous speed 1200 rpm
- Frame 364/5T
- No load current 40.0/20.0 A
- Service factor 1.25
- Noise level² 66.0 dB(A)
- Output rating 50 HP
- LRC 6.4x(Code G)
- Starting Method Direct On Line
- Number of poles 6
- Number of Poles 6
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Rated torque 222 ft.lb
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Output 50 HP (37 kW)
- Design B
- Mounting F-1
- Terminal box¹ Left position
- Slip 1.42 %
- Insulation Class F
- Degree of Protection IP55
- Flange Without
- Rated speed 1183 rpm
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05012ET3E365T-W22G Specs
