05018OT3E326T-W40 WEG AC Motors
Part#:05018OT3E326T-W40
Manufacturer:WEG
Alt. Part#:7899058087841
Product Lifecycle:Active
Get a quick Quote!

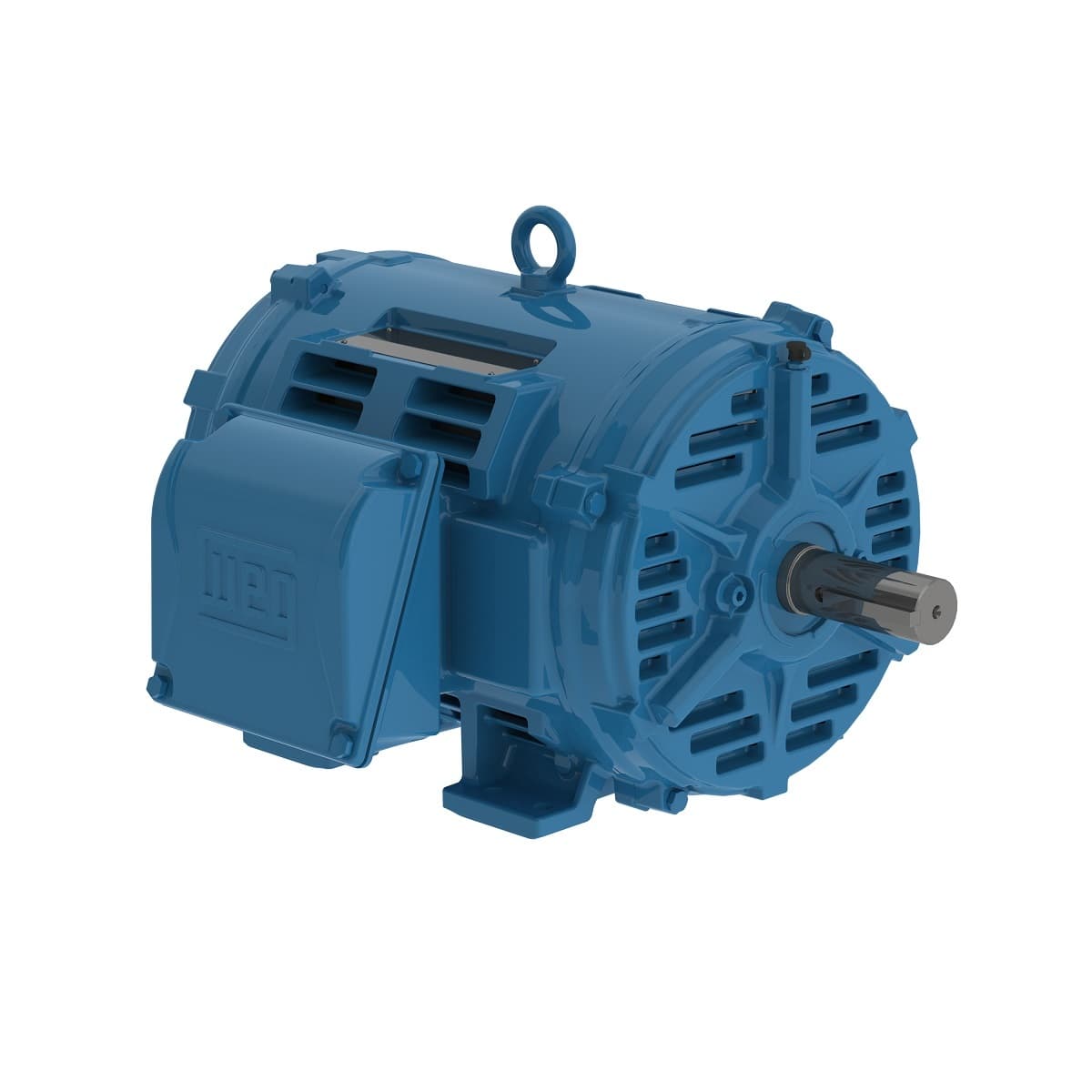

W40 NEMA Premium Efficiency 50 HP 4P 324/6T 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 05018OT3E326T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor time 19s (cold) 11s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 50 HP
- Slip 1.39 %
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated speed 1775 rpm
- Design B
- Enclosure IC01 - ODP
- Flange Without
- Output 50 HP (37 kW)
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Number of poles 4
- LRC 6.3x(Code G)
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Rated current 117/58.5 A
- Temperature rise 80 K
- Voltage 230/460//380 V
- Rated voltage 230/460 V
- Moment of inertia (J) 7.08 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Frame 324/6T
- Rated torque 148 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 509 lb
- L. R. Amperes 737/369 A
- Insulation Class F
- Mounting F-1
- Number of Poles 4
- No load current 46.4/23.2 A
- Service factor 1.25
- Noise level² 66.0 dB(A)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05018OT3E326T-W40 Specs
1-year warranty
