05018OP3HFP326JMV WEG AC Motors
Part#:05018OP3HFP326JMV
Manufacturer:WEG
Alt. Part#:7909322397580
Product Lifecycle:Active
Get a quick Quote!

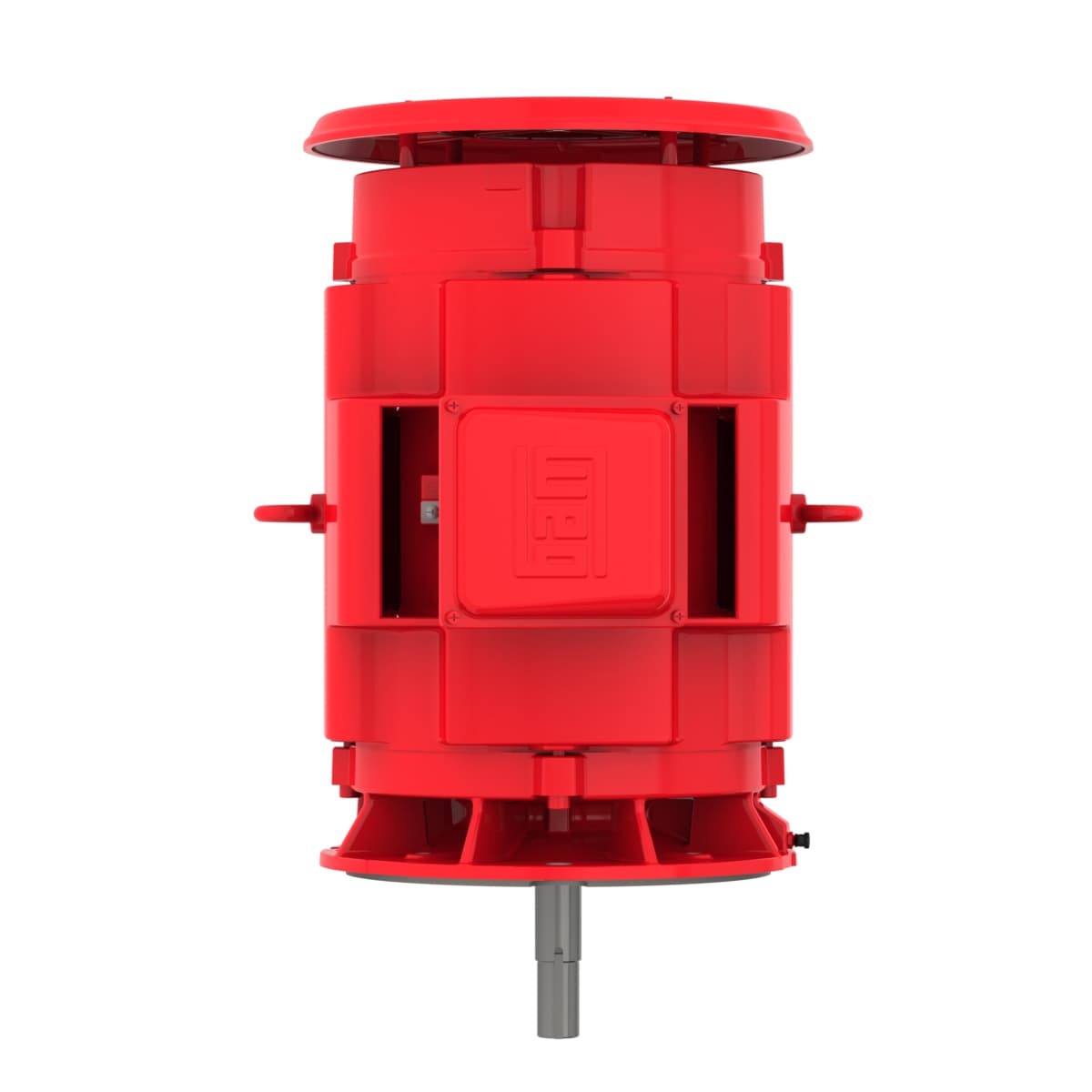

Close Coupled Pump High Efficiency 50 HP 4P 326JM 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 05018OP3HFP326JMV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeC
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Number of poles 4
- L. R. Amperes 270 A
- Locked rotor time 32s (cold) 18s (hot)
- Starting Method Direct On Line
- Flange C
- Rated current 48.2 A
- No load current 18.4 A
- Approx. weight³ 538 lb
- LRC 5.6x(Code F)
- Service factor 1.15
- Mounting W-6
- Terminal box¹ Left position
- Frame 326JM
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Rated voltage 575 V
- Moment of inertia (J) 5.73 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 50 HP
- Rated speed 1770 rpm
- Temperature rise 80 K
- Enclosure IC01 - ODP
- Slip 1.67 %
- Breakdown torque 210 %
- Noise level² 65.0 dB(A)
- Number of Poles 4
- Rated torque 148 ft.lb
- Voltage 575 V
- Output 50 HP (37 kW)
- Design B
- Degree of Protection IP23
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05018OP3HFP326JMV Specs
