05012XT3H365T WEG AC Motors
Part#:05012XT3H365T
Manufacturer:WEG
Alt. Part#:7891327309104
Product Lifecycle:Active
Get a quick Quote!

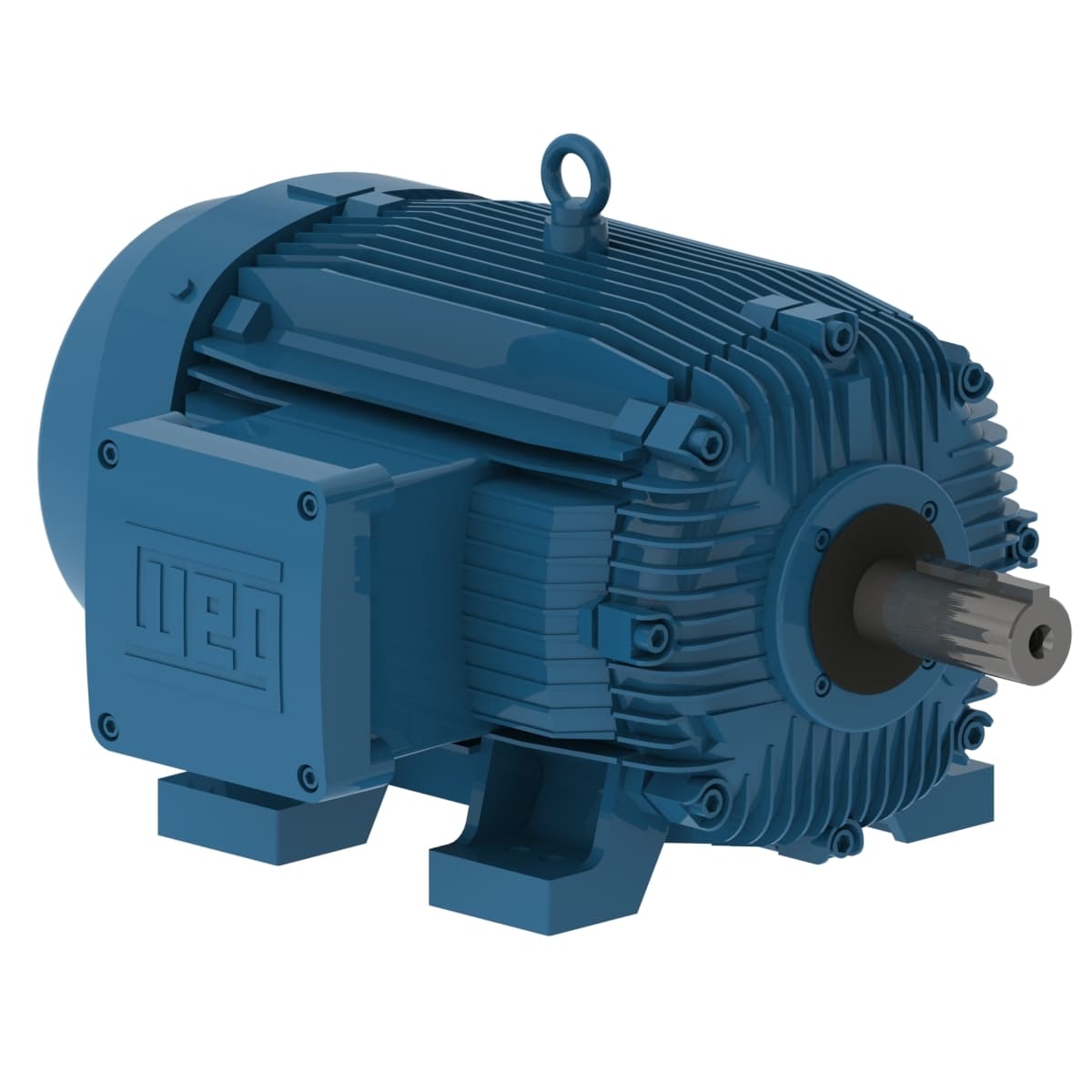

W21 Explosion-proof Motor NEMA Premium Efficiency 50 HP 6P 364/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 05012XT3H365T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed1182 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Frame 364/5T
- Moment of inertia (J) 29.4 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
- Rated voltage 575 V
- Insulation Class F
- Enclosure IC411 - TEFC
- Noise level² 65.0 dB(A)
- Number of Poles 6
- No load current 16.8 A
- Duty Cycle Cont.(S1)
- Output rating 50 HP
- Slip 1.50 %
- Locked rotor torque 229 %
- Mounting F-1
- Approx. weight³ 1040 lb
- Rated current 46.5 A
- Design B
- Standard NEMA MG-1
- Rated speed 1182 rpm
- L. R. Amperes 344 A
- Starting Method Direct On Line
- Terminal box¹ Left position
- Frequency 60 Hz
- Locked rotor time 36s (cold) 20s (hot)
- Temperature rise 80 K
- Number of poles 6
- LRC 7.4x(Code H)
- Degree of Protection IP55
- Flange Without
- Breakdown torque 250 %
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Output 50 HP (37 kW)
- Rated torque 222 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 575 V
