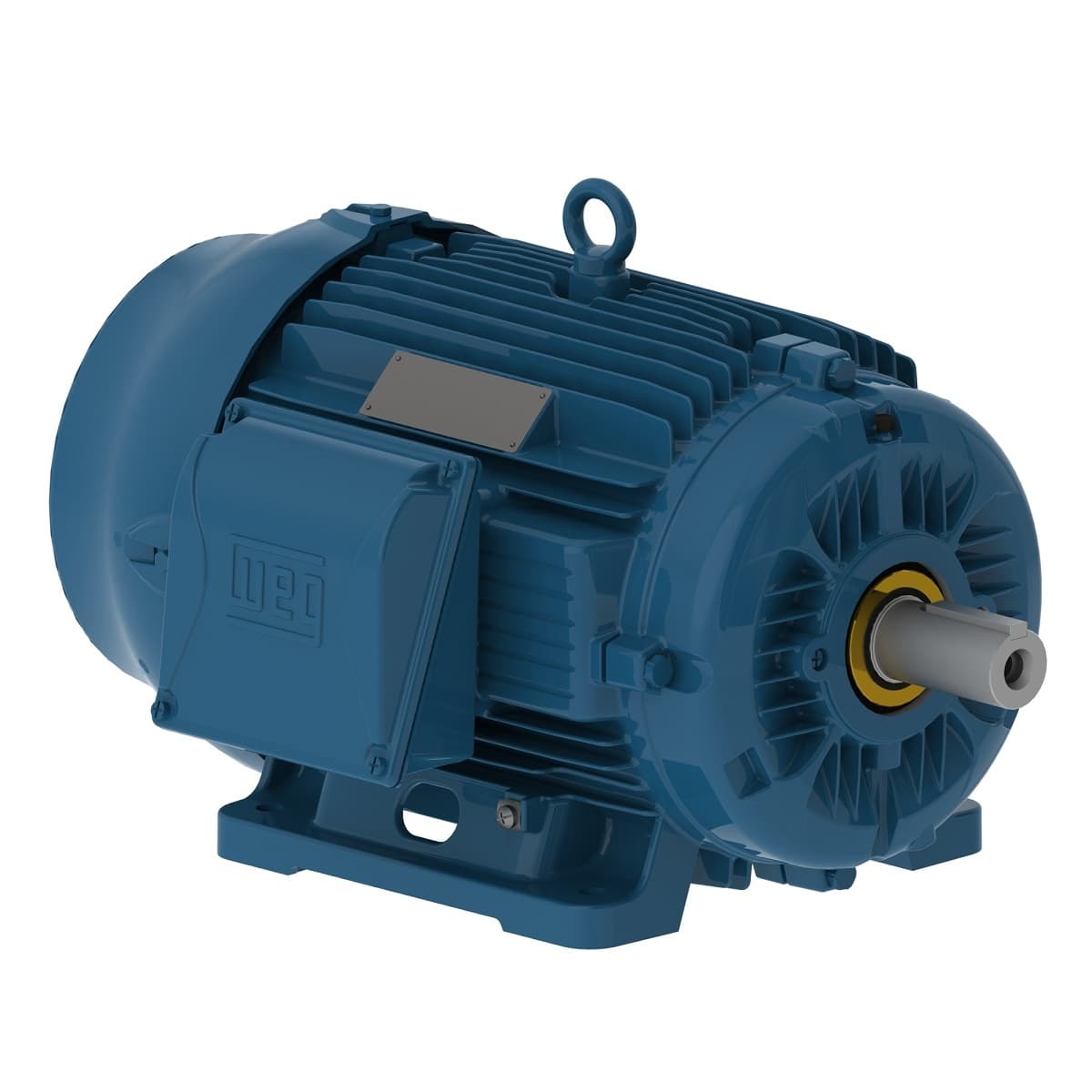

03036ST3QIE286TS-W22 WEG AC Motors
Part#:03036ST3QIE286TS-W22
Manufacturer:WEG
Alt. Part#:7891327133938
Product Lifecycle:Active
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 30 HP 2P 284/6TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03036ST3QIE286TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3549 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Rated torque 44.4 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Output 30 HP (22 kW)
- No load current 9.90 A
- Insulation Class F
- Standard NEMA MG-1
- Rated speed 3549 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Starting Method Direct On Line
- Output rating 30 HP
- Frame 284/6TS
- Slip 1.42 %
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated voltage 460 V
- Breakdown torque 250 %
- Design B
- Noise level² 72.0 dB(A)
- Frequency 60 Hz
- Rated current 34.6 A
- Ambient temperature -20°C to +40°C
- Approx. weight³ 402 lb
- L. R. Amperes 218 A
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Moment of inertia (J) 3.37 sq.ft.lb
- Mounting F-1
- Voltage 460 V
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Number of poles 2
- LRC 6.3x(Code G)
- Degree of Protection IP56
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03036ST3QIE286TS-W22 Specs
1-year warranty
